Signal Specification, Parking Assistance Module (PAM)

Signal specification

General

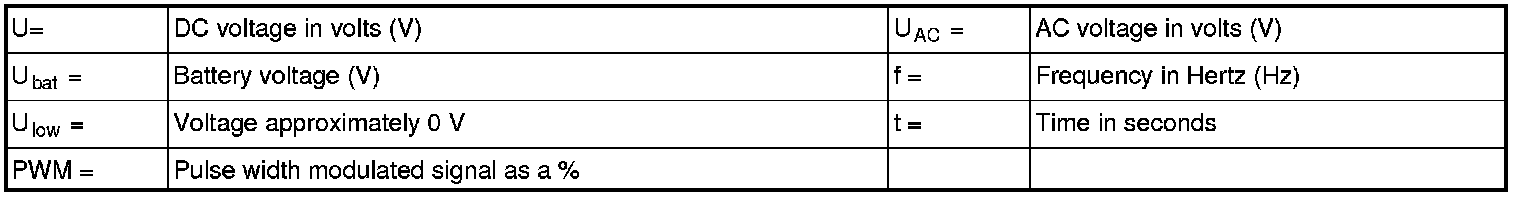

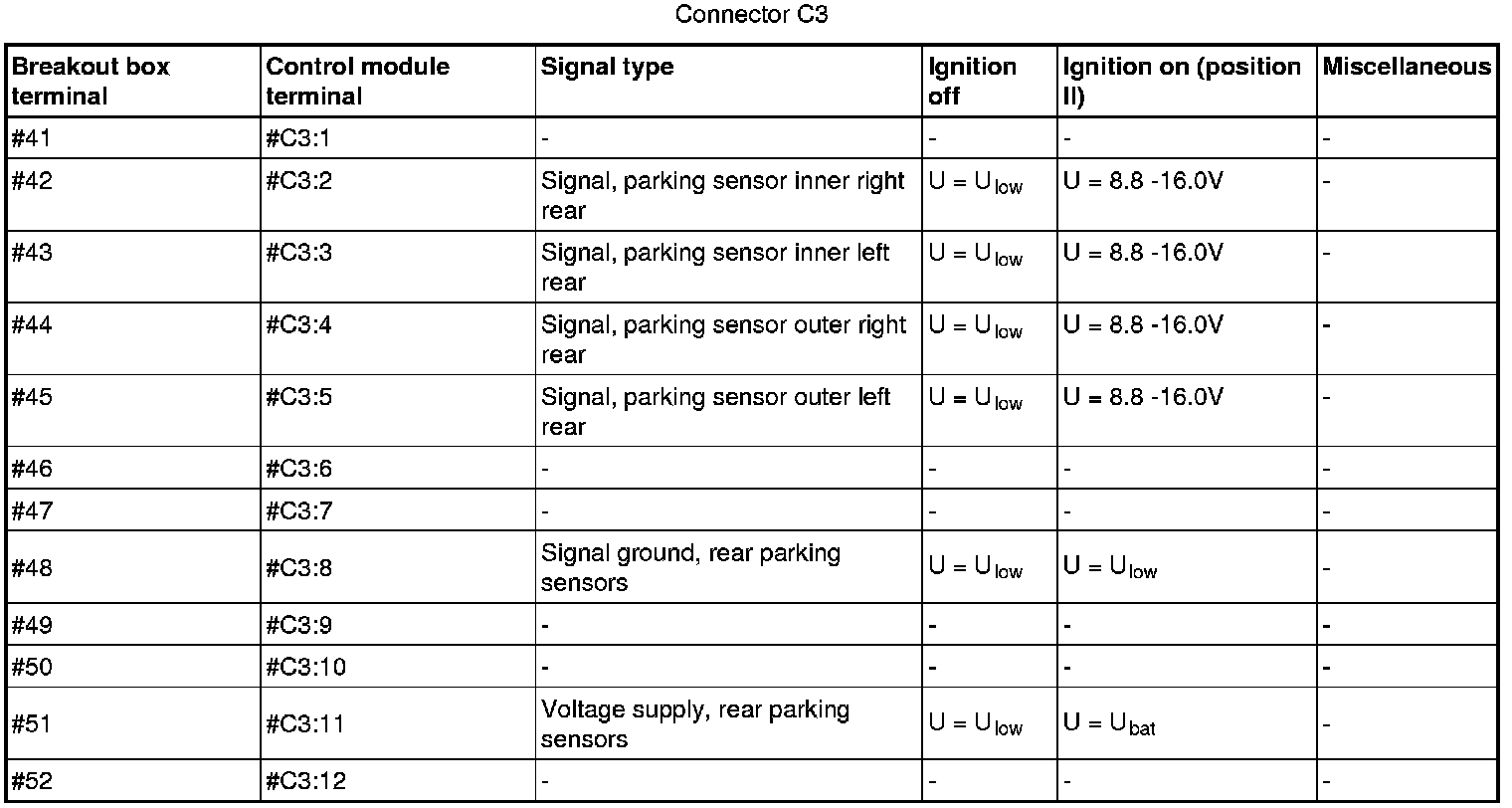

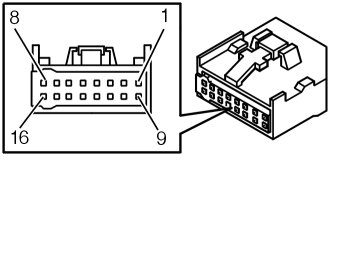

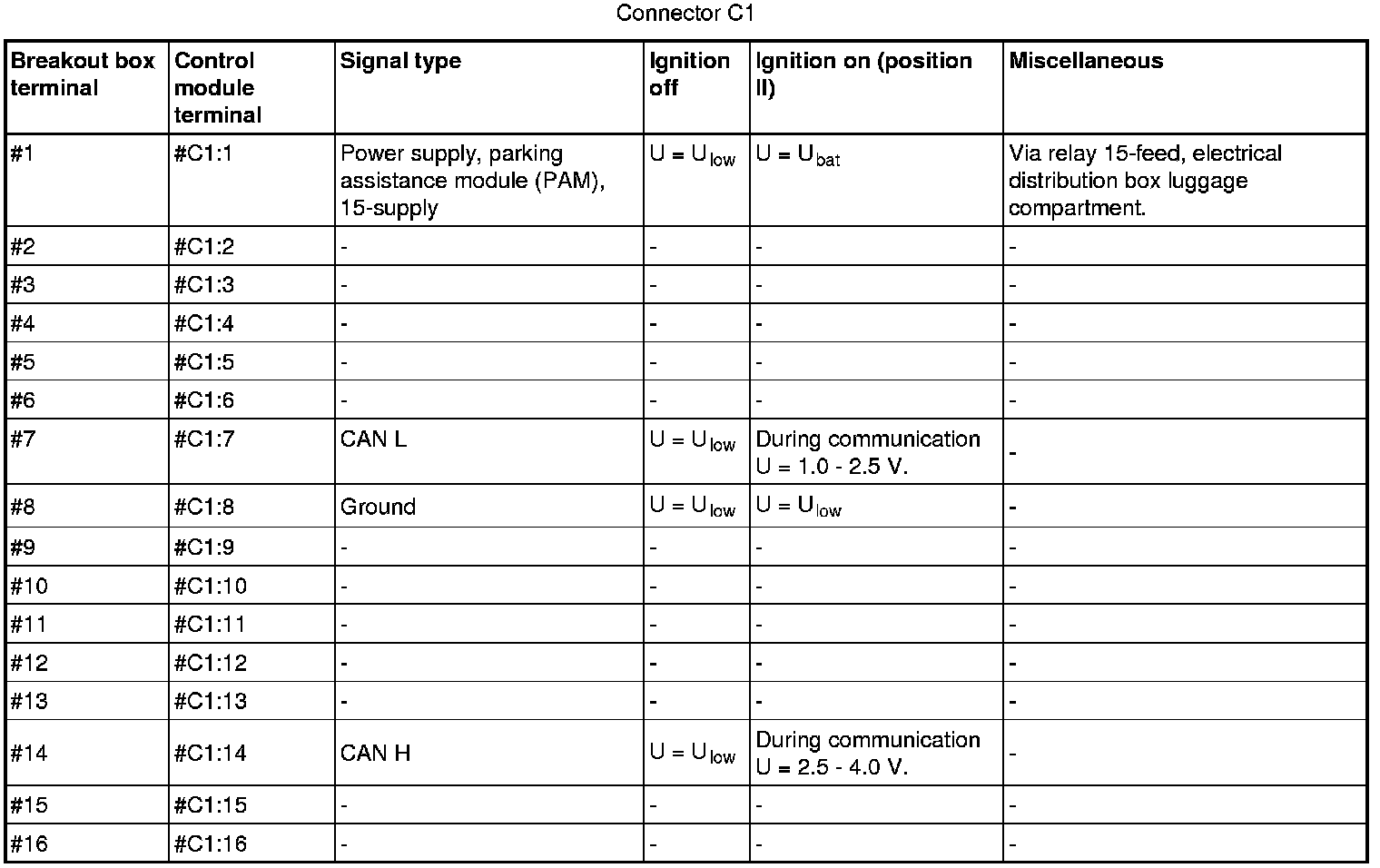

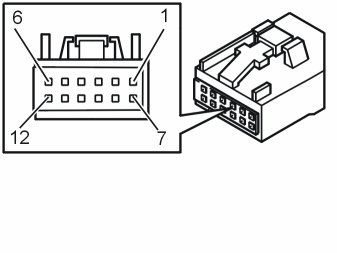

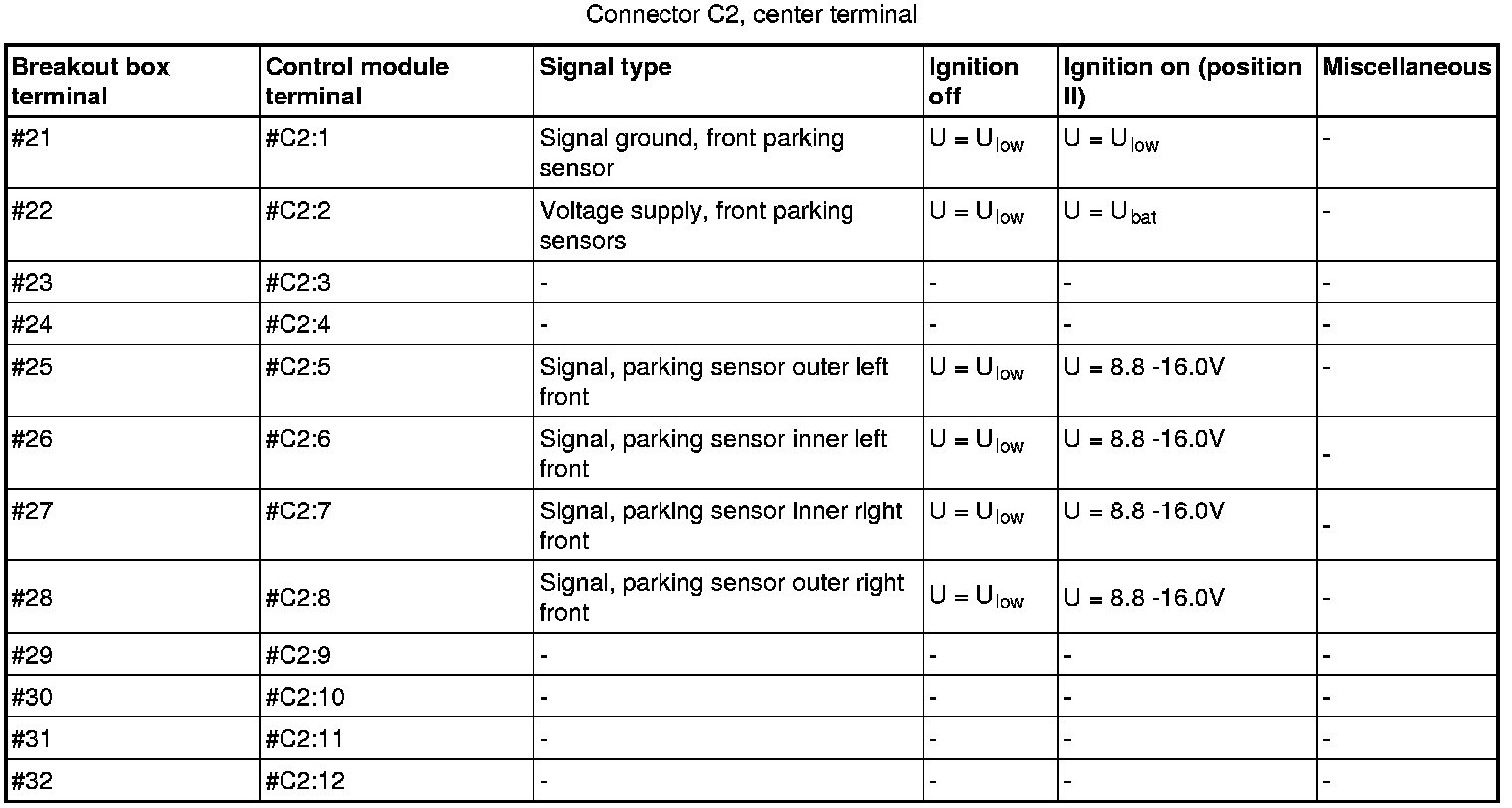

All the values given below are between the terminals stated in column 1 and terminal #C1:8 in column 2 (power ground).

Note! It is important to connect the breakout box and check the ground connections before starting to measure.
