Signal Specification, Forward Sensing Module (FSM)

Signal description

General

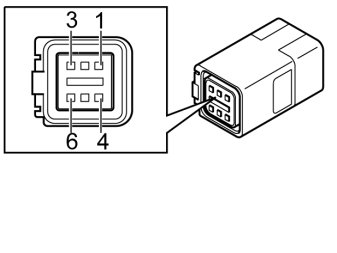

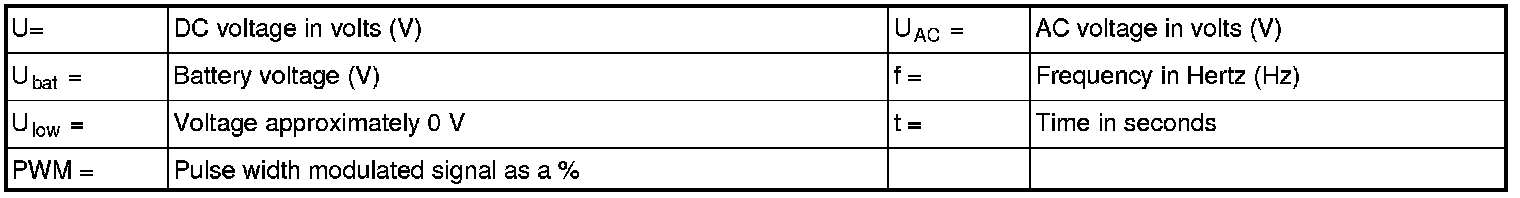

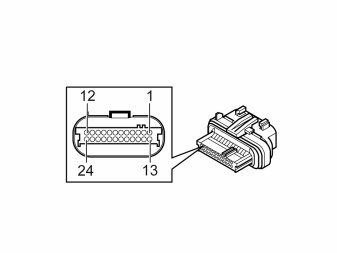

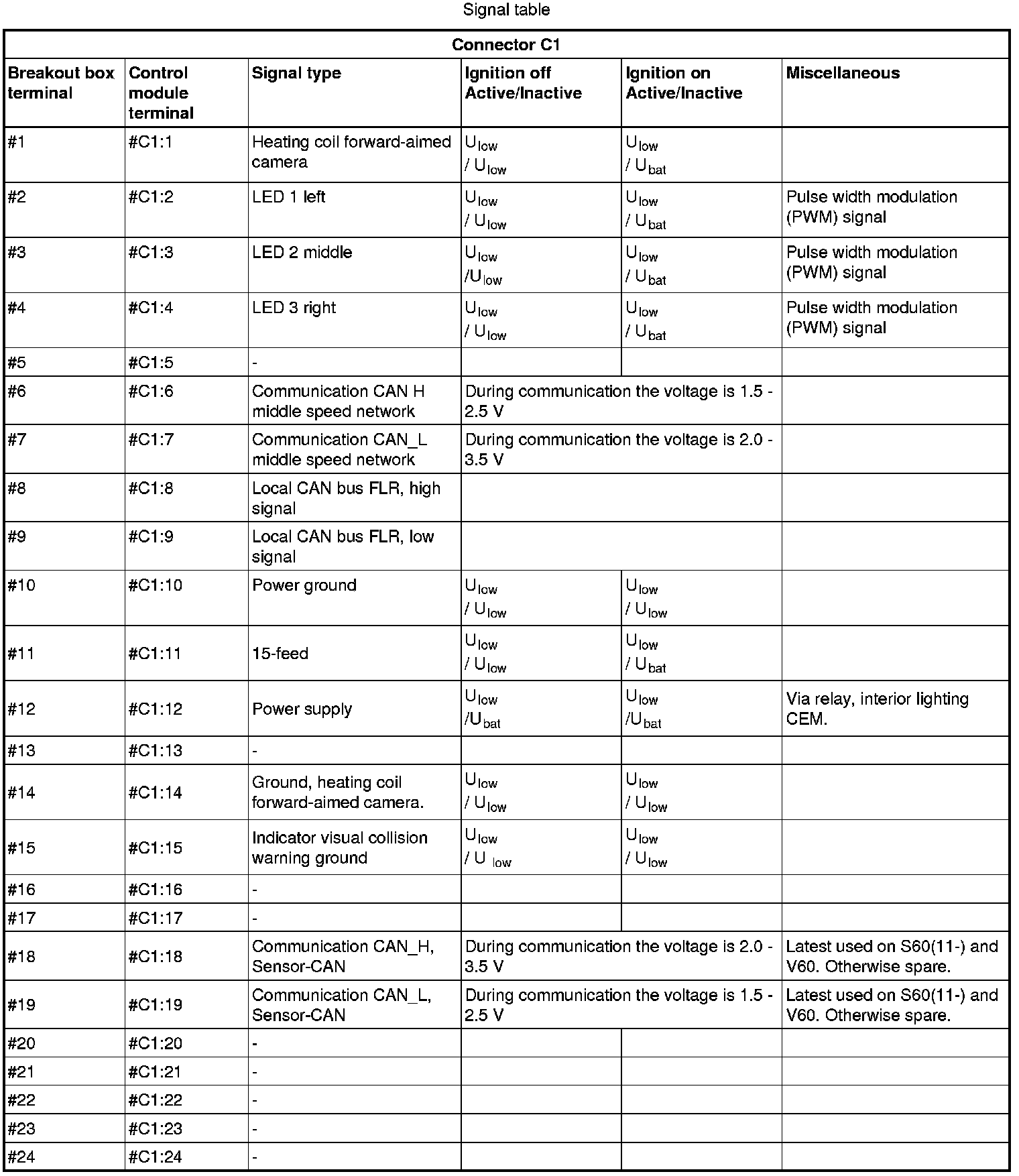

All the values given below are between the respective terminal in column 1 and terminal #C1:10 in column 2 (power ground) unless otherwise stated in parenthesis after the table entry.

Note! It is important to connect the breakout box and check the ground connections before starting to measure.
