Part 2
Parking assistance, rear (Continued)

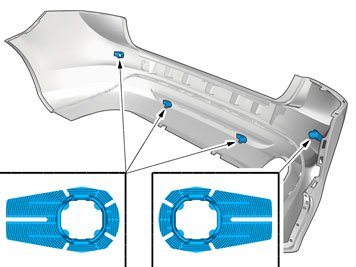

Applies to vehicles with keyless locking systems
Illustrations A and B
Applies to all models

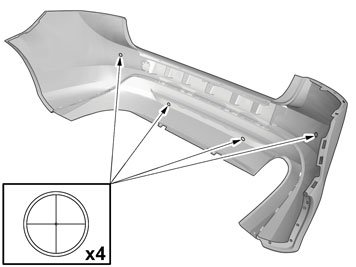

- Locate the 4 markings on the inside of the bumper cover.

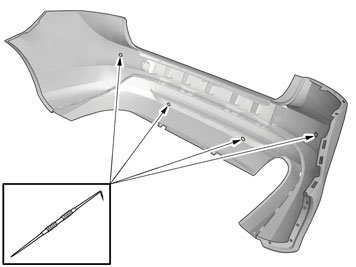

- Use: Scriber.

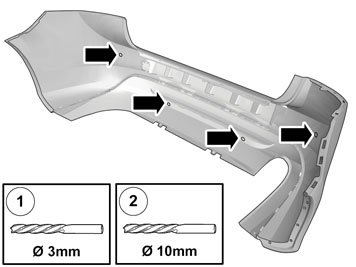

1. - 3 mm (7/64 ")
2. - 10 mm (25/64 ")

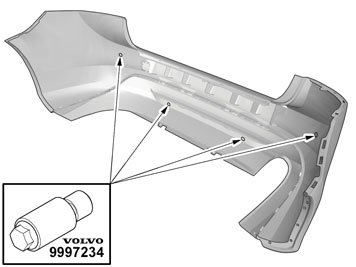

- Use special tool: 9997234 Hole tool
Caution! The cutting part of the tool must be on the outside of the cover.

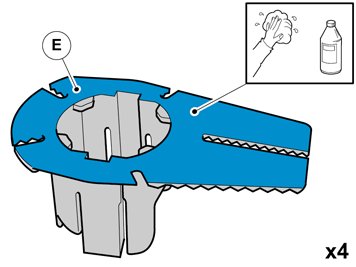

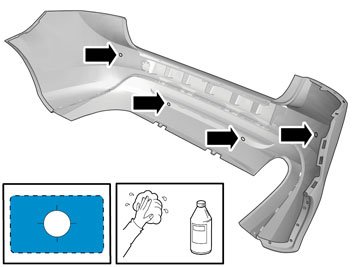

- Clean the surfaces. Allow to dry.
Use: Isopropanol
- Clean the surfaces. Allow to dry.
Use: Isopropanol
- Clean the surfaces. Allow to dry.
Use: Isopropanol

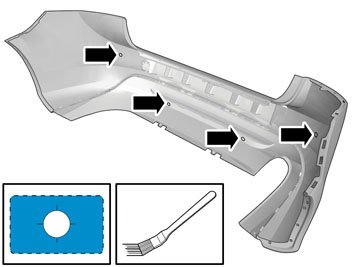

- Apply a thin and even layer of activator. Allow to dry for at least 10 minutes. Use: 8637076Activator.
- Apply a thin and even layer of activator. Allow to dry for at least 10 minutes. Use: 8637076Activator.
- Apply a thin and even layer of activator. Allow to dry for at least 10 minutes. Use: 8637076Activator.
Applies to vehicles with keyless locking systems
Applies to all vehicles
Illustrations A and B
- Check that the rubber bushing closes tight against the body.
Applies to vehicles without keyless locking systems
Applies to vehicles without keyless locking systems
- Cut off any excess.
Applies to vehicles with keyless locking systems
Applies to all models

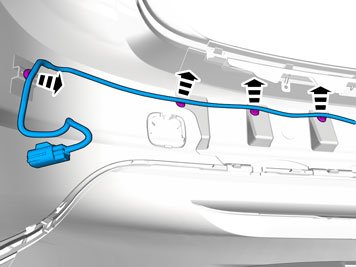

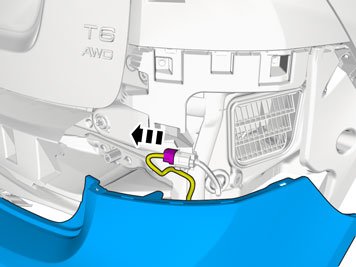

- Locate the pre-routed connector.
Applies to the right-hand side

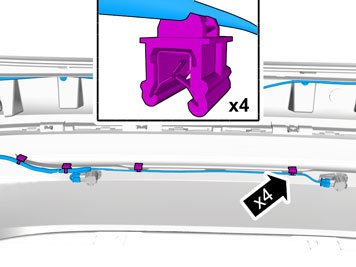

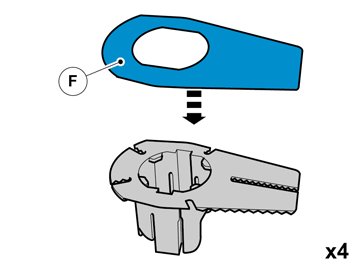

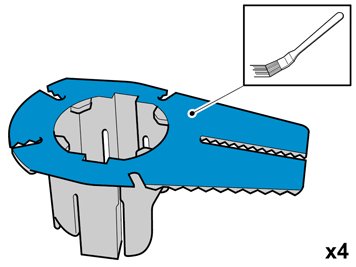

- Prepare and install one cradle at a time.
Note the location of the cradles.
- Repeat the steps for the other cradles.
- Press the cradle so that the tape is secured.
- Repeat the steps for the other cradles.

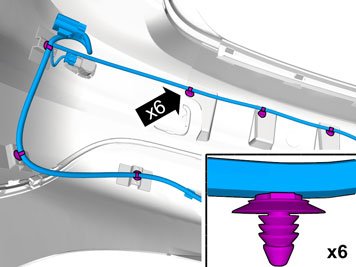

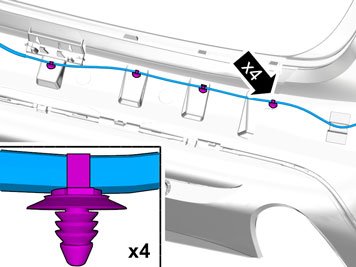

- Place the cable in the cover.

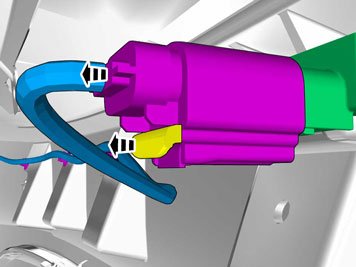

- Connect the two painted sensors to the two outer connections.
Applies to vehicles without keyless locking systems
Applies to vehicles without keyless locking systems
- Cut off any excess.
Applies to vehicles with keyless locking systems
Applies to all vehicles
- Reinstall the detached components in reverse order.
- Download software (application) for the accessory's function.
