Parking assistance, rear, R-design (Continued)

All vehicles

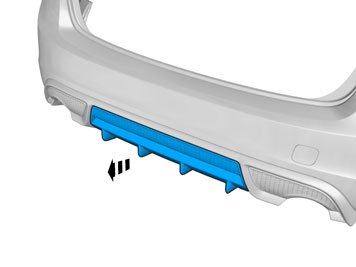

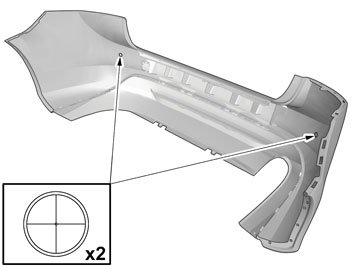

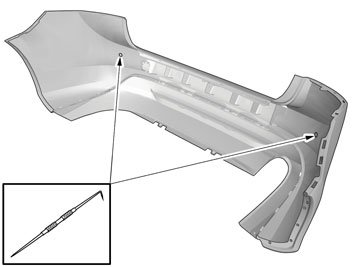

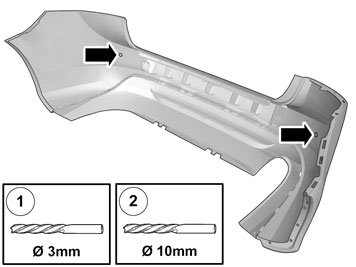

Use: Scribe.

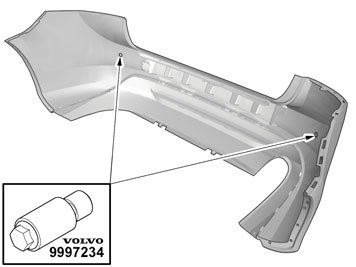

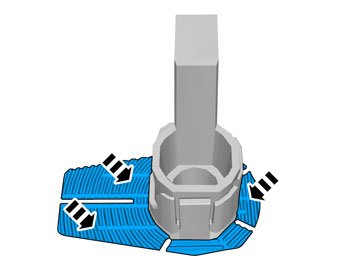

999 7234 Hole stamp 999 7234 Hole Stamp

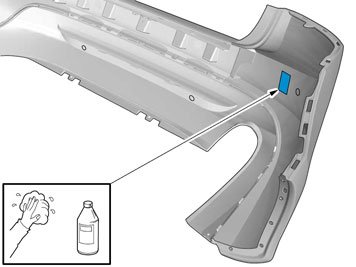

Clean the surfaces.
Allow to dry.

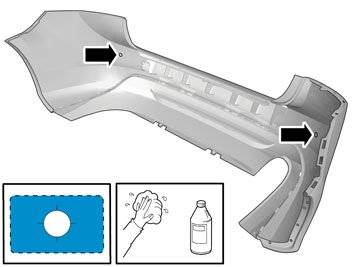

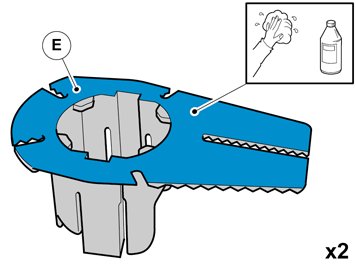

Use: Isopropanol, 1161721




Clean the surface.
Allow to dry.

Use: Isopropanol, 1161721




Clean the surface.
Allow to dry.

Use: Isopropanol, 1161721

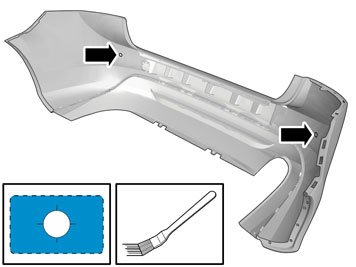

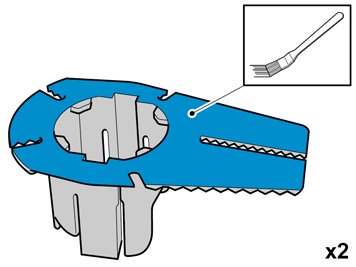

Apply a thin and even layer.
Allow to dry for at least 10 minutes.

Use: Activator, 8637076




Apply a thin and even layer.
Allow to dry for at least 10 minutes.

Use: Activator, 8637076




Apply a thin and even layer.
Allow to dry for at least 10 minutes.

Use: Activator, 8637076

















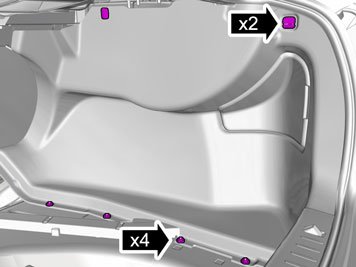

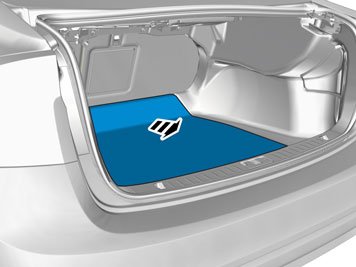

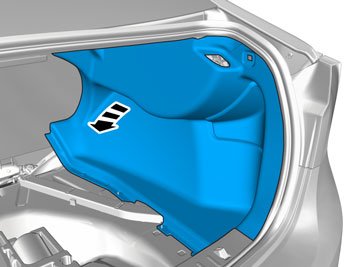

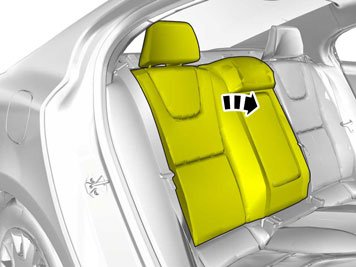

Vehicles with keyless entry

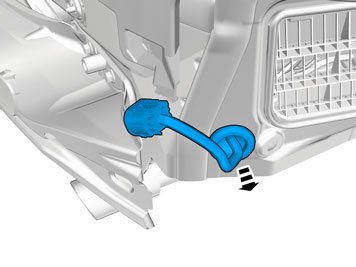

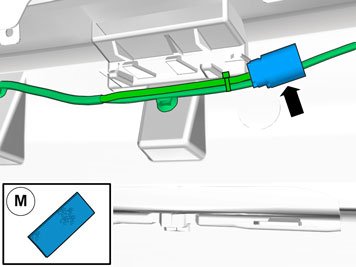

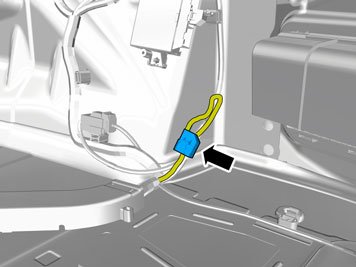

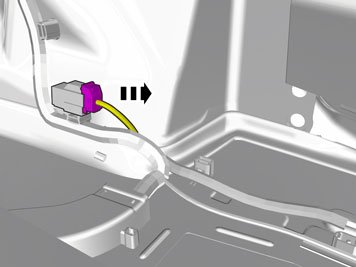

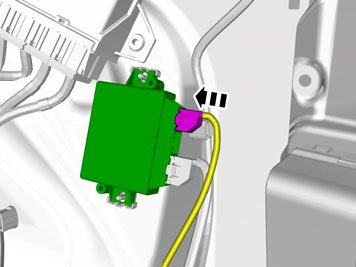

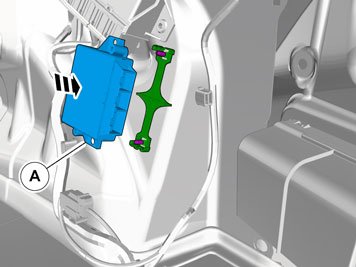

Disconnect the connector.

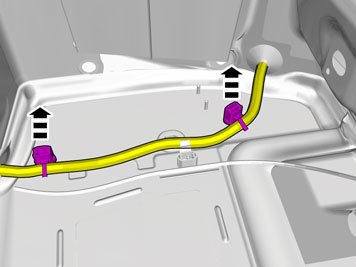

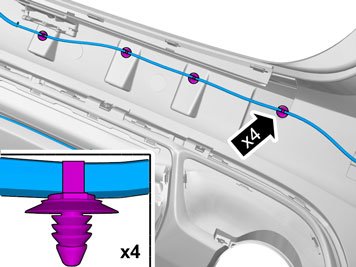

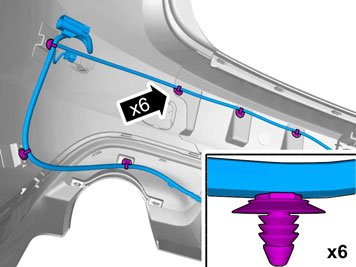

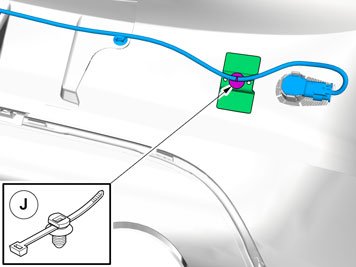

Remove the cable harness clips.









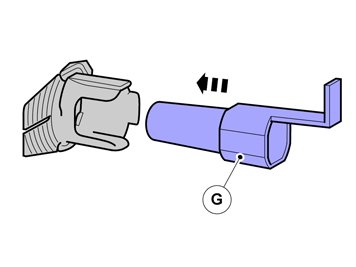

All vehicles

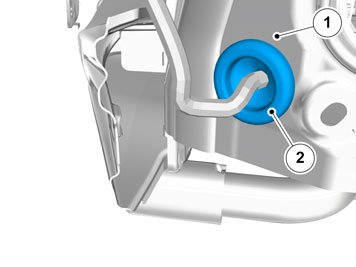

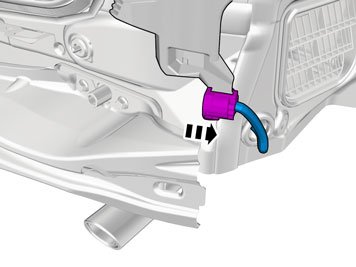

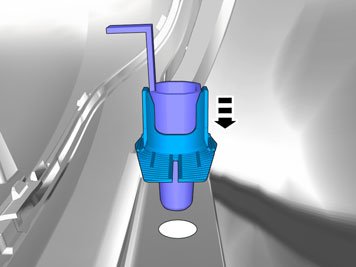

Caution! Make sure that the rubber grommet seals properly to the body.





Vehicles without keyless entry








Tear off the excess foam tape.

Vehicles with keyless entry





All vehicles

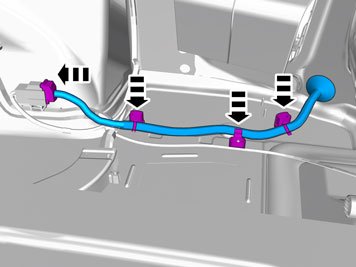

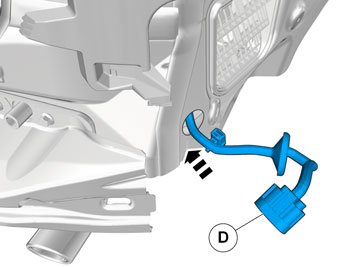

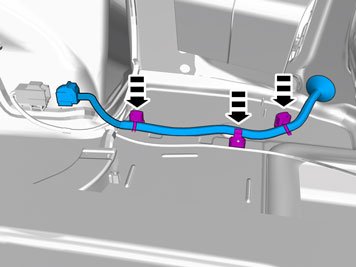

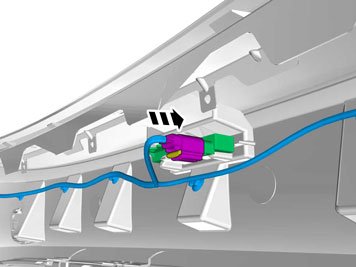

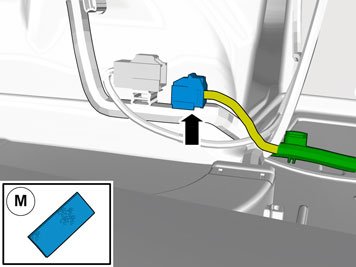

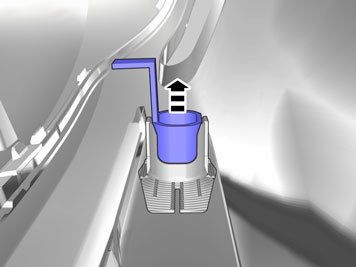

Locate the pre-routed connector.

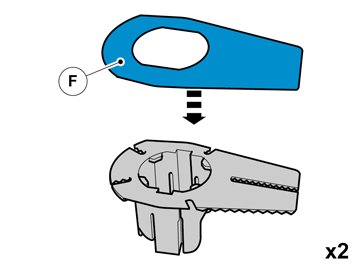

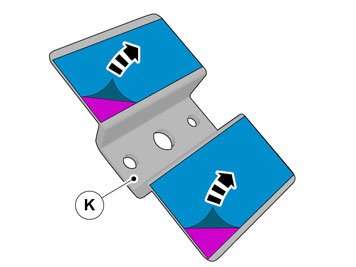

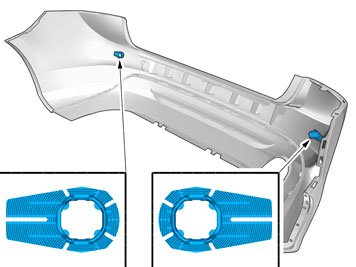

Note! Prepare and install one holder at a time.

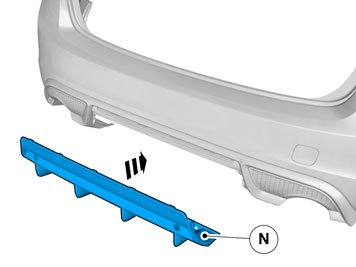

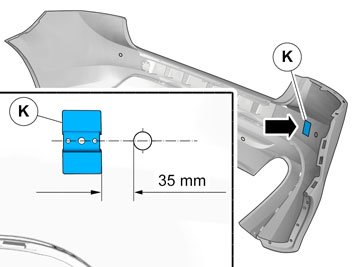

Note position of components.

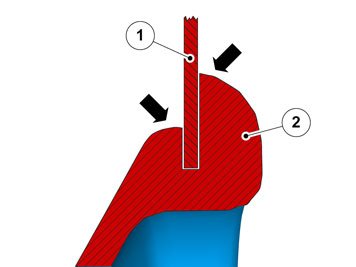

Caution! Make sure that equal pressure is applied to the full length of the component.

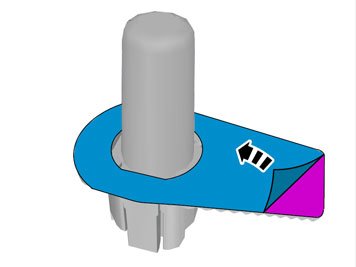

Note! Ensure that the tape is fixed to the surface.

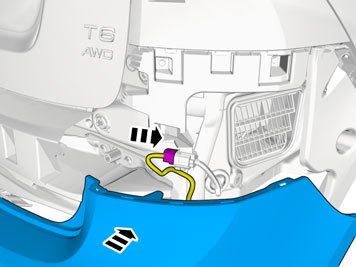

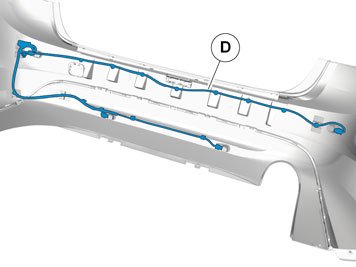

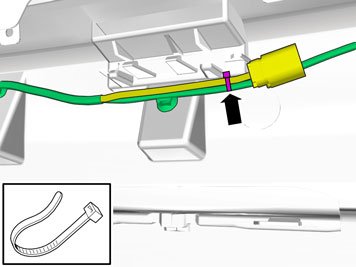

Put the wiring in the Bumper cover without installing the wiring.

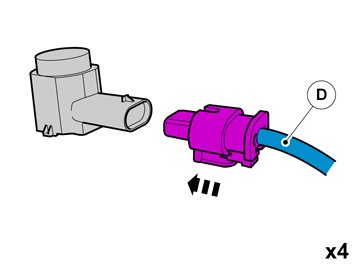

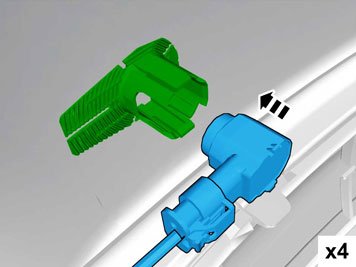

Connect the two painted sensors to the external connections.





















Vehicles without keyless entry








Tear off the excess foam tape.

Vehicles with keyless entry

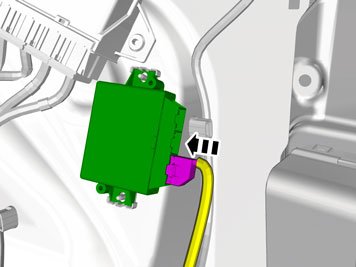

Connect the connector.

All vehicles





Reinstall the removed parts in reverse order.




Download software (application) for the accessory's function.
