Part 1
Parking assistance, rear, R-design
Equipment

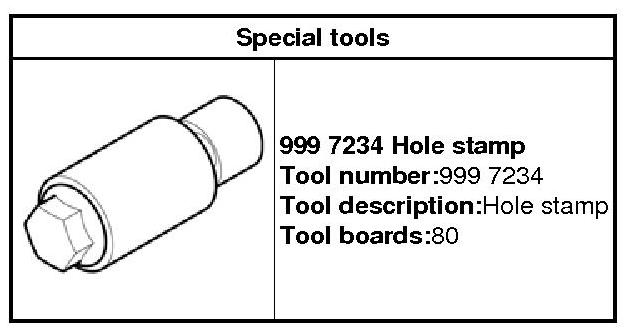

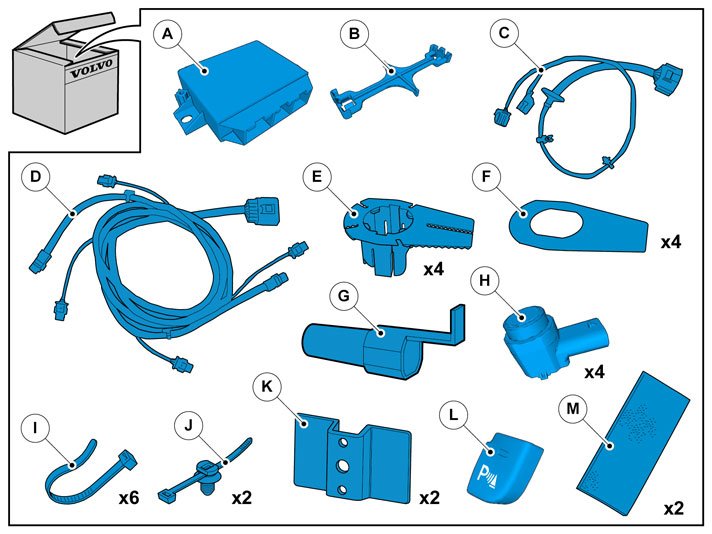

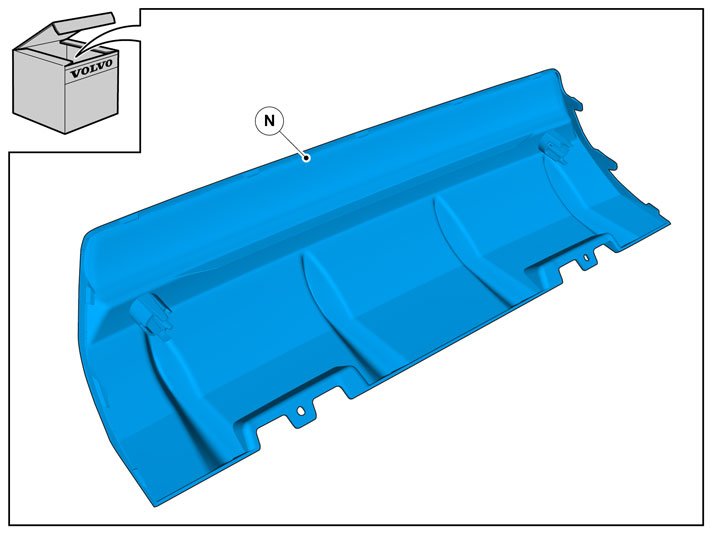

Kit contents
Operation number: 39631
Information
- Read through all of the instructions before starting installation.
- Notifications and warning texts are for your safety and to minimize the risk of something breaking during installation.
- Ensure that all tools stated in the instructions are available before starting installation.
- Certain steps in the instructions are only presented in the form of images. Explanatory text is also given for more complicated steps.
- In the event of any problems with the instructions or the accessory, contact your local Volvo dealer.
Conditions
When installing, the car must retain a temperature of 20 degrees C.
After installation, the car must not be washed for 48 hours
After installation, the car must not be driven for 2 hours

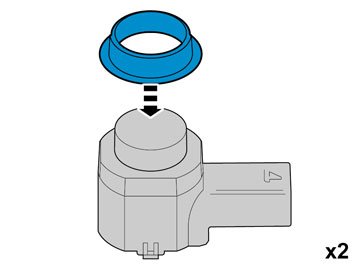

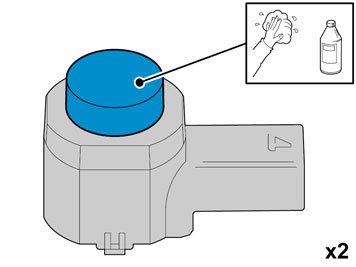

Clean the surface.

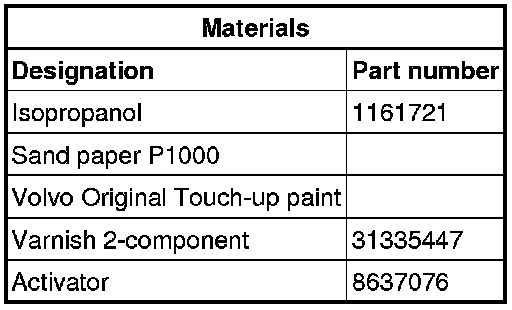

Use: Isopropanol, 1161721
Matt the surface gently.
Use: Sand paper P1000,
Clean the surface.
Use: Isopropanol, 1161721
Caution! Protect connector surfaces against paint spray.

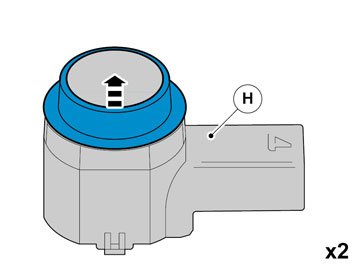

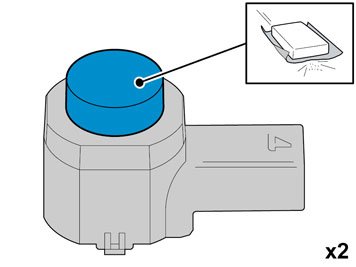

Note! Paint the sensors the same colour code as the vehicle.
Use: Volvo Original Touch-up paint,
Use base coat only.
Use: Varnish 2-component, 31335447
Also see the instructions on the container.
Caution! First the paint must dry after painting.
Set the ignition key to position 0.

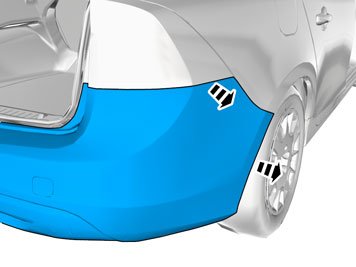

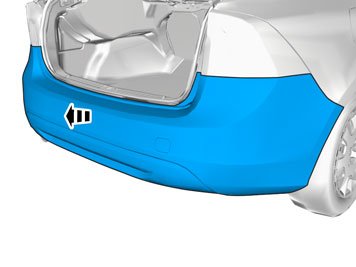

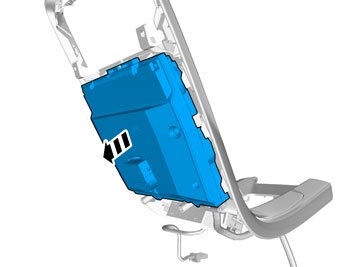

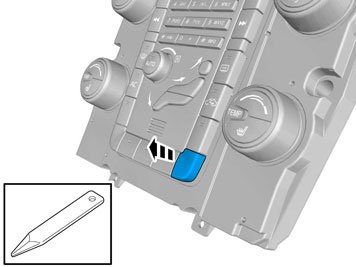

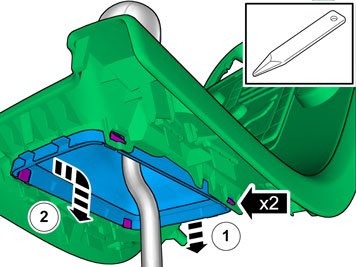

Remove the panel.
Fold the carpet to the side.
Detach the following items:
1. Unhook the cable harness clips.
2. Disconnect the connector.

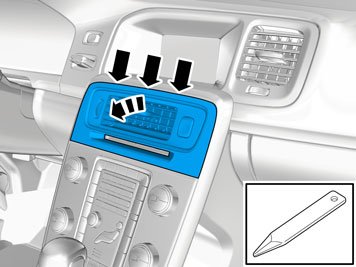

Remove the panel.
Vehicles with the 4C system.
Disconnect the connector.
All vehicles
Disconnect the connector.

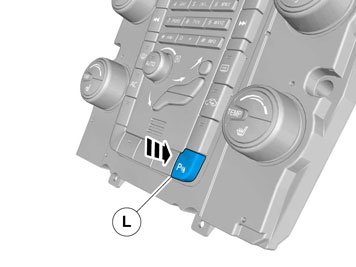

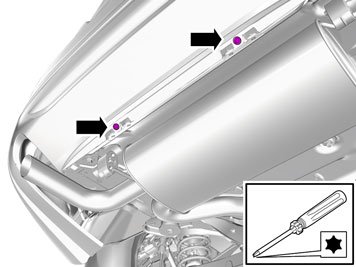

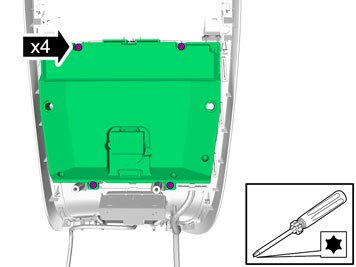

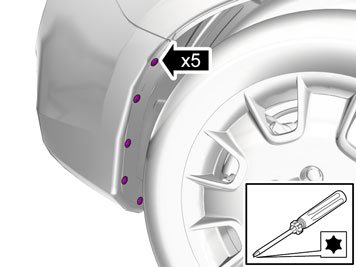

Remove the screws.
Remove the screws.
Cars with automatic transmissions
Release the shift-lock function.
All vehicles
Cars with manual transmissions
All vehicles
Remove the screws.
Reinstall the removed parts in reverse order.
Remove the screws.
Repeat on the other side.
Remove the screws.
Repeat on the other side.
Vehicles with keyless entry
Disconnect the connector.
