Part 2

Parking assistance, front, R-design (Continued)

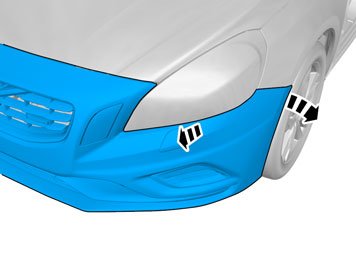

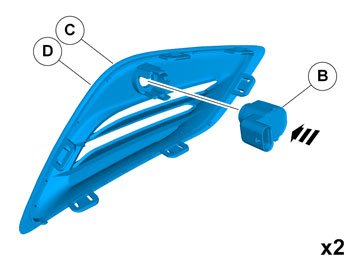

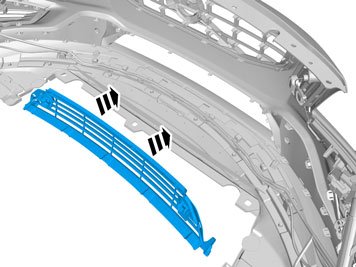

Remove the clips.

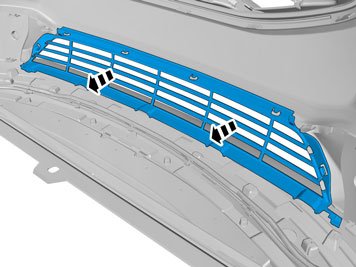

Remove the screws.

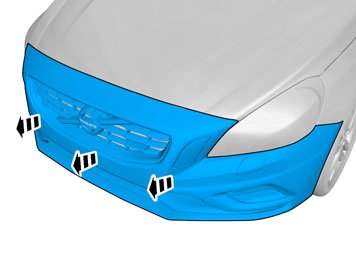

Remove the clips.

Repeat on the other side.

RHD: The cable harness is positioned mirrored.

Left hand drive vehicles

Right-hand drive vehicles

Left hand drive vehicles

Right-hand drive vehicles

All vehicles

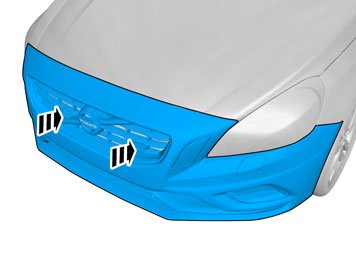

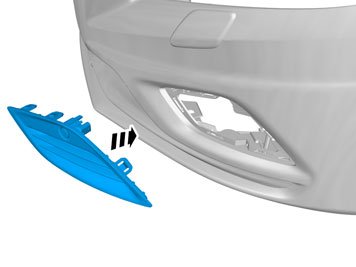

Place the Bumper Cover in position for installation.

Left hand drive vehicles

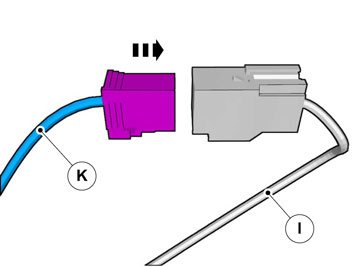

Connect the connectors.

Right-hand drive vehicles

Connect the connector.

Connect the connector.

Vehicles with headlamp washers

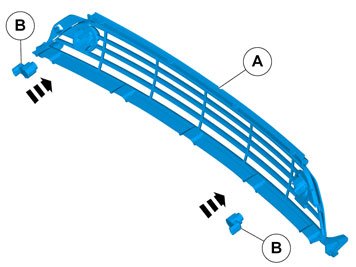

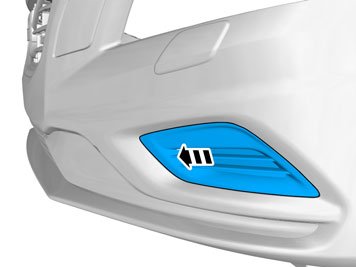

Reinstall the removed parts in reverse order.

All vehicles

Reinstall the bumper.

Left hand drive vehicles

Caution! Make sure to locate the wiring in such a way that any damage caused by heat or excessive wear is avoided.

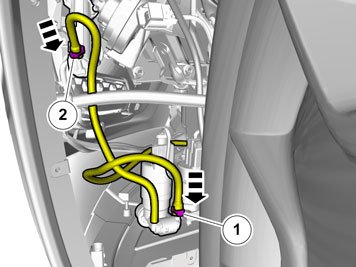

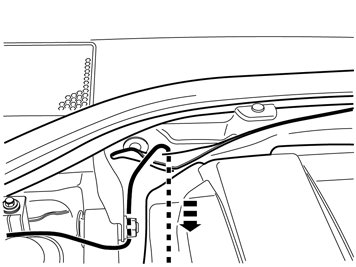

Route the cable harness to the existing cable harness.
Reinstall the headlamp.

Remove the nuts.

Right-hand drive vehicles

Caution! Make sure to locate the wiring in such a way that any damage caused by heat or excessive wear is avoided.

All vehicles

Note! On some markets the rubber grommet may be covered by the heat shield.

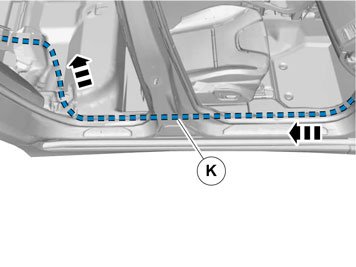

Pull the wiring through.
Insert the cable in to the passenger compartment, adjust the cable length out into the engine compartment and secure the rubber grommet.

Left hand drive vehicles

Release the connector's secondary lock.

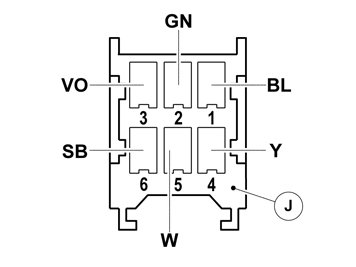

Connect the pre-routed cables to the 6-pin connector.
Depress the secondary lock.

Right-hand drive vehicles

Release the connector's secondary lock.
Connect the pre-routed cables to the 6-pin connector.
Depress the secondary lock.

All vehicles

Connect the connector.

Right-hand drive vehicles

All vehicles

Connect the connector.

Note! Extra cable length must be secured using cable ties.

Download software (application) for the accessory's function.
