Checking Handset, Phone Module (PHM)

Checking handset




In case of lost function of the handset, this may be due to problems in the cable between Phone module (PHM) and handset.
- Ignition off.
Check the following cables for an open circuit:
Take readings between:

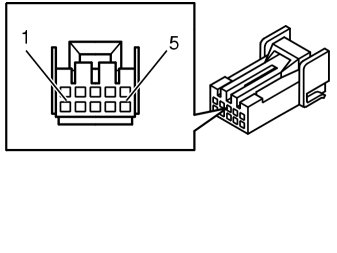

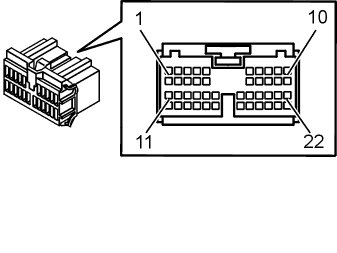

- Phone module (PHM) terminal #C1:19 (#19) and handset connector terminal #1 (#22) (microphone signal).
- Phone module (PHM) terminal #C1:20 (#20) and handset connector terminal #2 (#23) (loudspeaker signal).
- Phone module (PHM) terminal #C1:7 (#7) and handset connector terminal #5 (#26) (power supply).
- Phone module (PHM) terminal #C1:8 (#8) and handset connector terminal #3 (#24) (cradle signal).
- Phone module (PHM) terminal #C1:18 (#18) and handset connector terminal #4 (#25) (ground).
Try replacing the handset.
Remedy as necessary.
