Part 3

Handsfree, Bluetooth (Continued)

Cars with manual transmissions

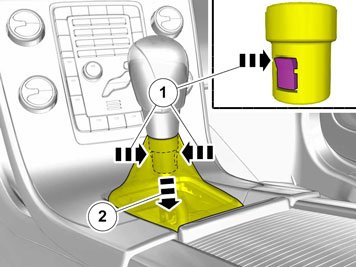

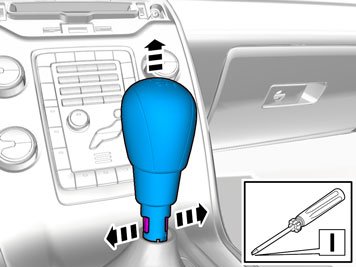

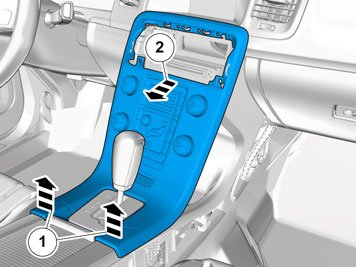

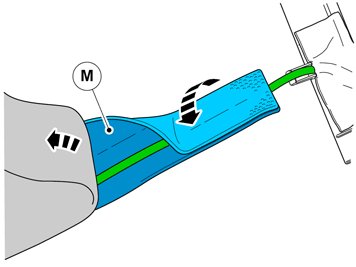

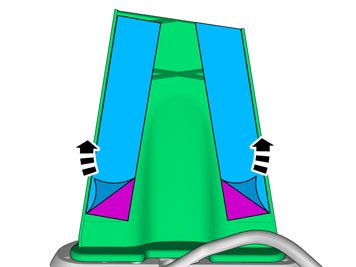

Release the lock ring which is located inside the gear lever boot.





All vehicles

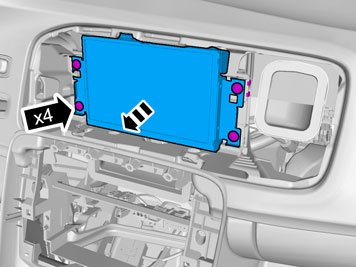

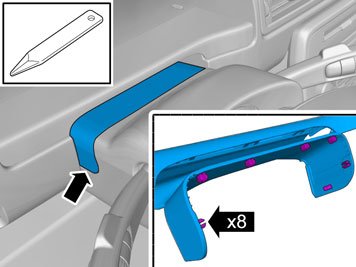

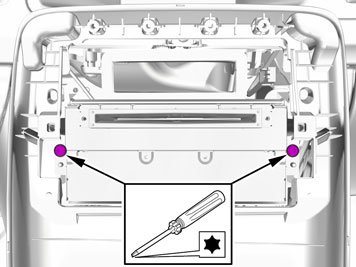

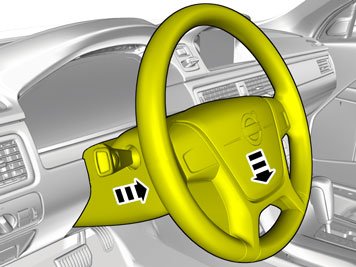

Remove the screws.

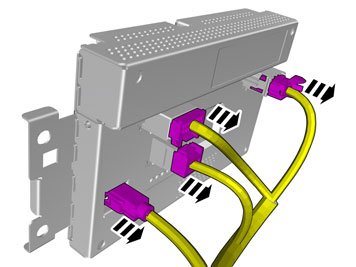

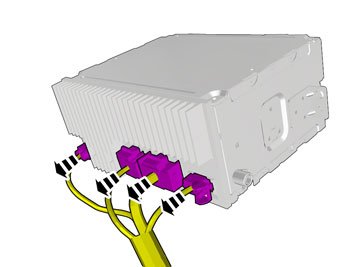

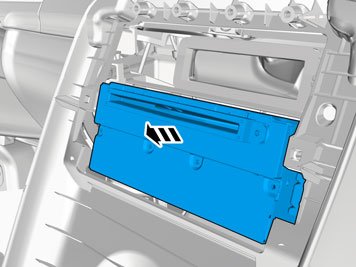

Disconnect the connectors.

















Note! The number of connectors, cables and cable ties can vary depending on the vehicle's equipment level.

Disconnect the connectors.

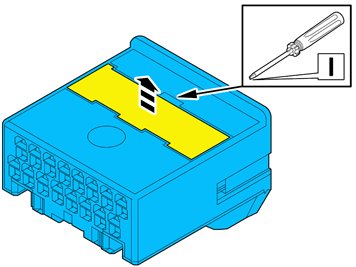

Release the lock.

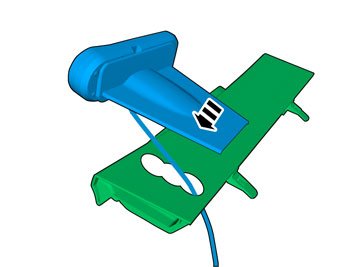

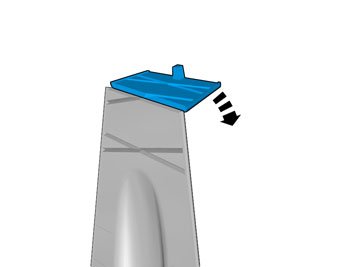

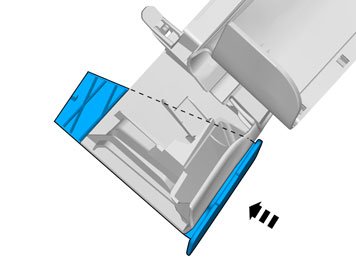

Install component that comes with the accessory kit.












Repeat on the other side.

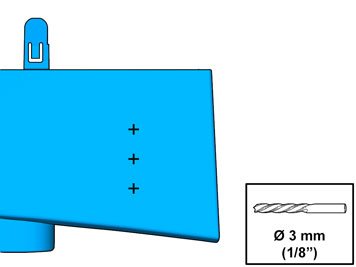

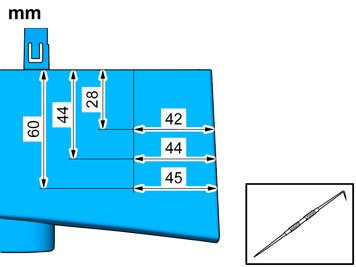

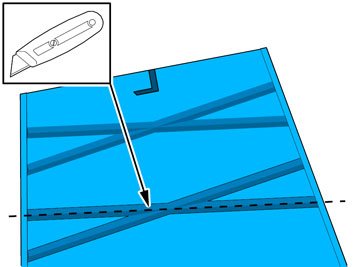

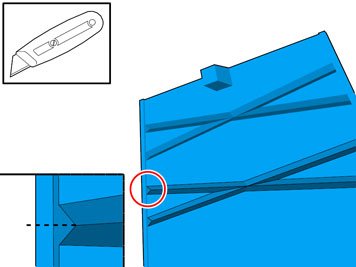

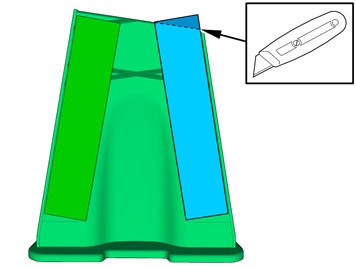

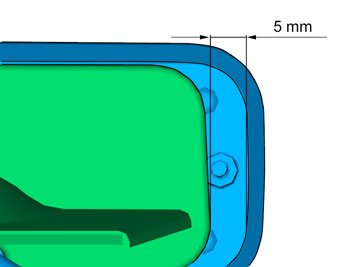

Scribe/mark up

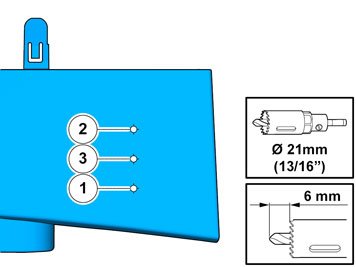

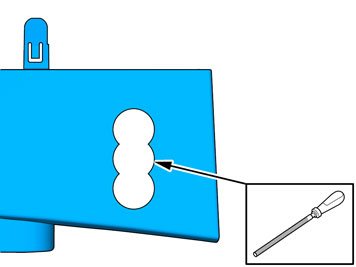

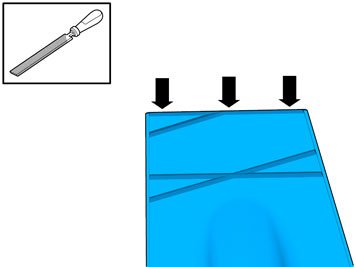

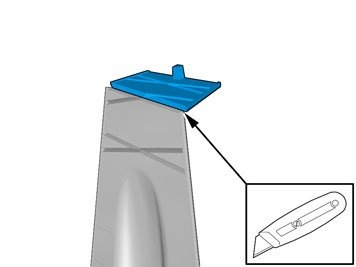

Deburr the hole edges.

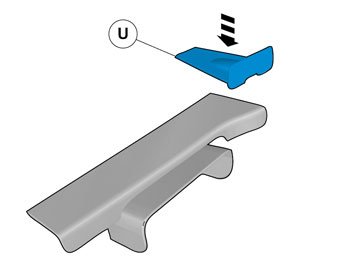

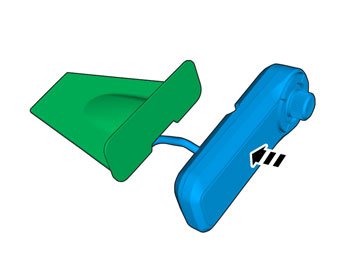

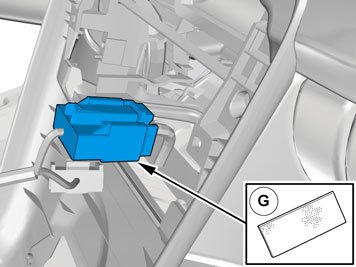

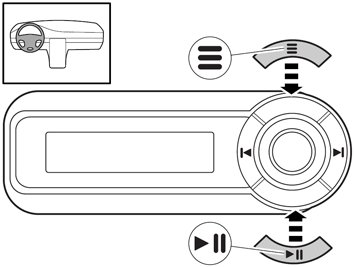

Install component that comes with the accessory kit.
Repeat on the other side.

Left hand drive vehicles

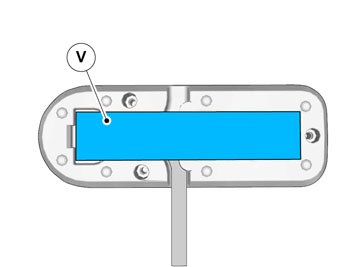

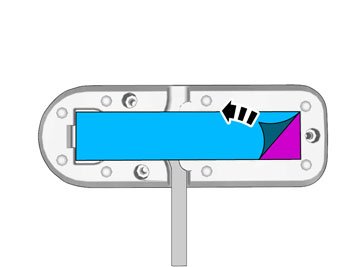

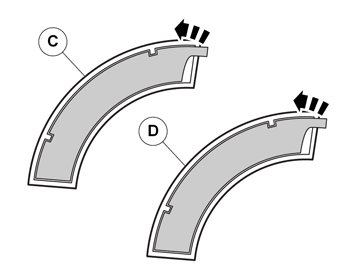

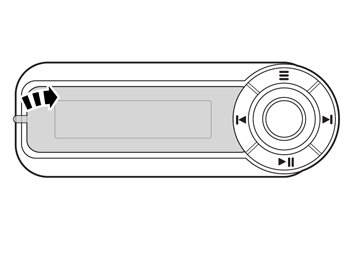

Remove the protective film.





Right-hand drive vehicles








Remove the protective film.





All vehicles

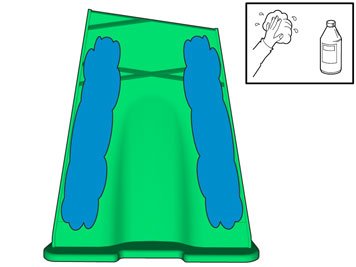

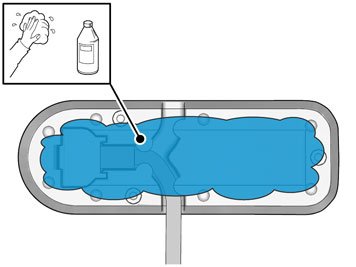

Clean the surface.

Use: Isopropanol, 1161721








Clean the surface.

Use: Isopropanol, 1161721

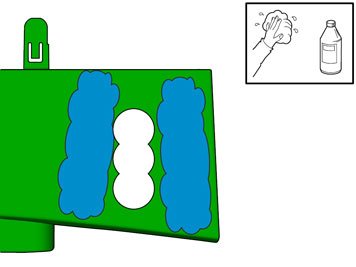

Clean the surface.

Use: Isopropanol, 1161721




Remove the protective film.

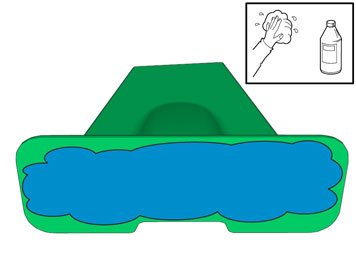

Clean the surface.

Use: Isopropanol, 1161721




Remove the protective film.








































Remove the protective film.

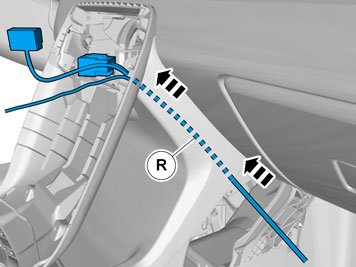

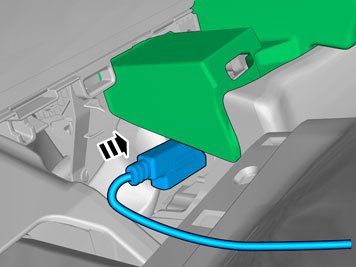

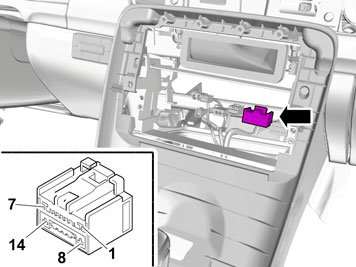

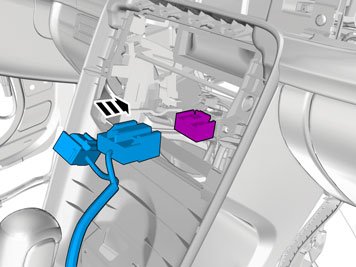

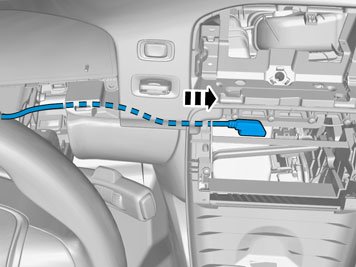

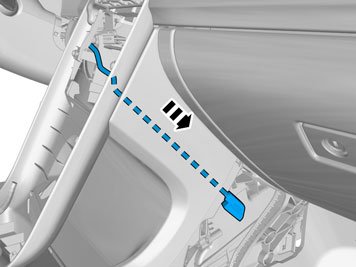

Locate the connector.

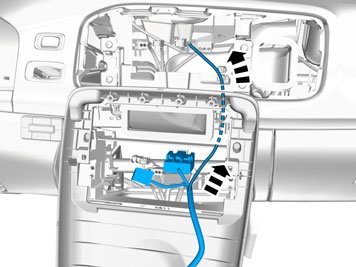

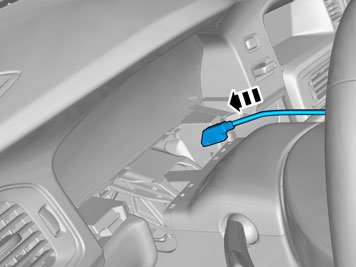

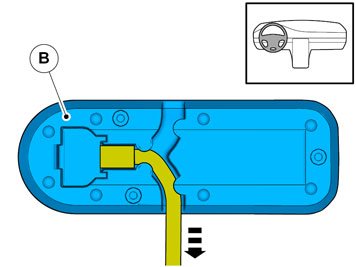

Connect the cable harness.




Turn once.

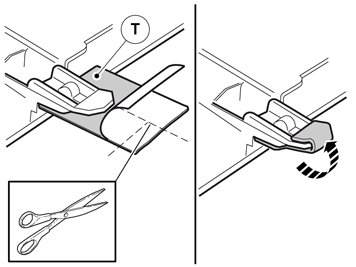

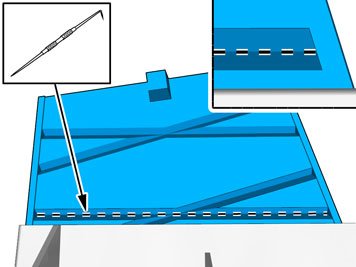

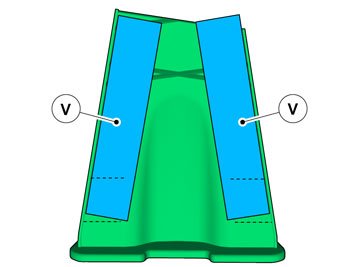

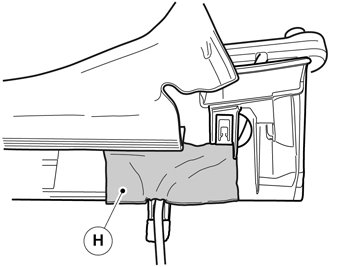

Tear off the excess foam tape.

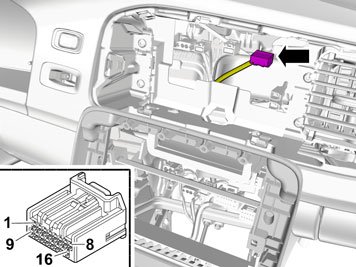

Locate the connector.

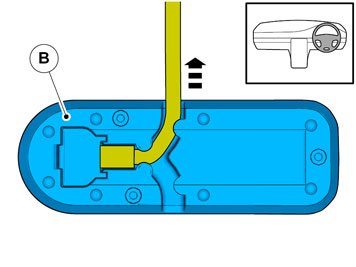

Release the connector's secondary lock.

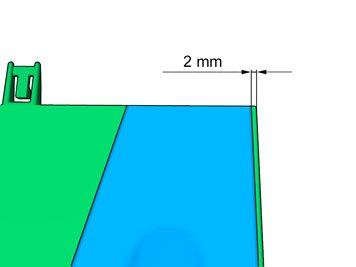

Lift approximately 2 mm.

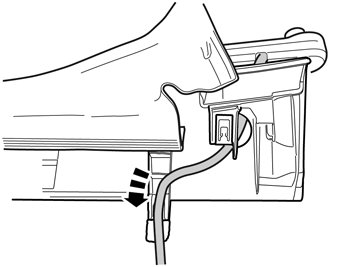

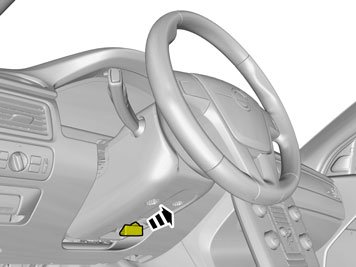

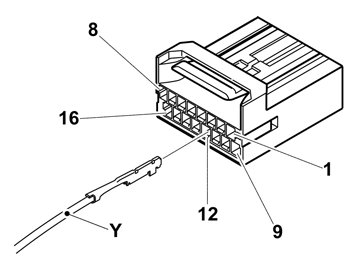

Connect the cable harness.
Depress the secondary lock.

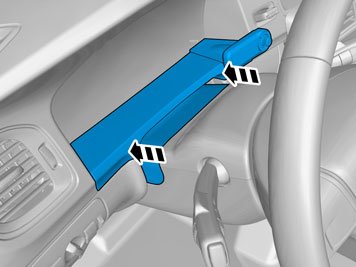

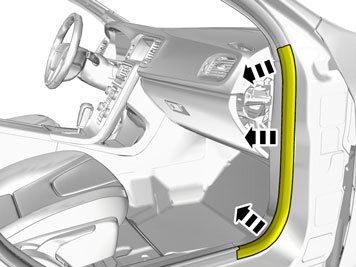

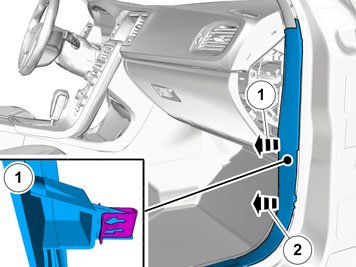

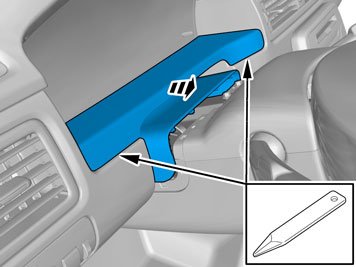

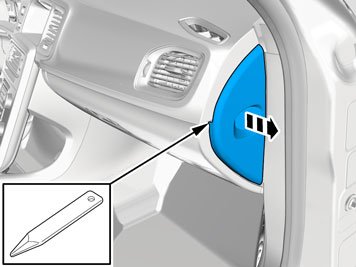

Remove the panel.




Remove the weatherstrip.





Caution! The front and upper sill panel must be removed and installed as one unit.
