Part 2

Handsfree, Bluetooth (Continued)

Removal




















Set the ignition key to position 0.

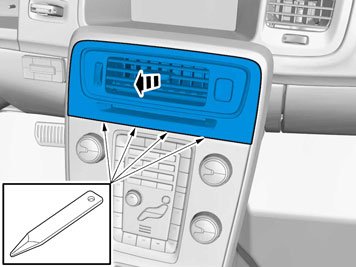

Remove the panel.




Fold the carpet to the side.

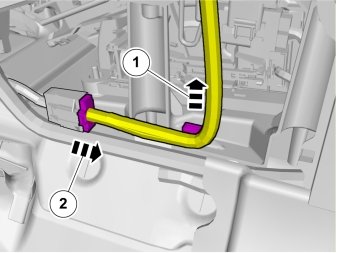

1. Unhook the cable harness clips.

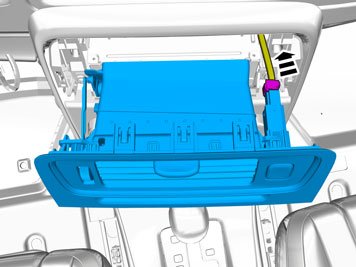

2. Disconnect the connector.

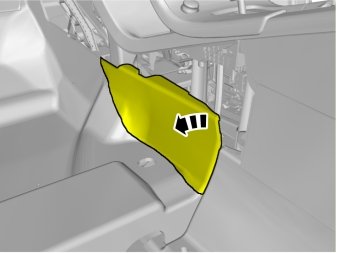

Remove the panel.

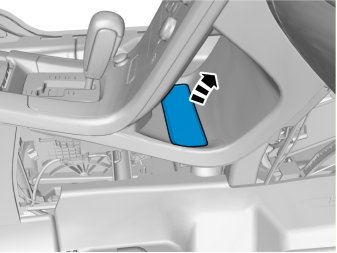

Disconnect the connector, if applicable.








Disconnect the connector.

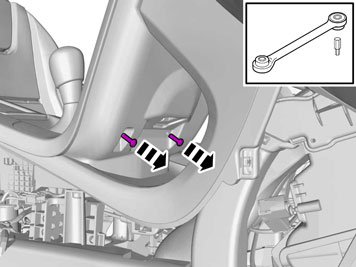

Remove the screws.

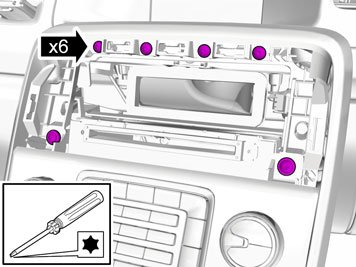

Remove the screws.

Cars with automatic transmissions

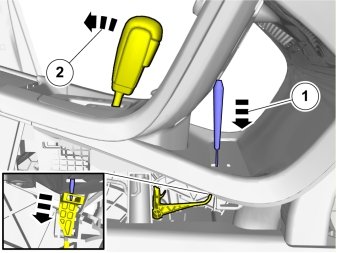

Release the shift-lock function.
