Function
Function
Phone

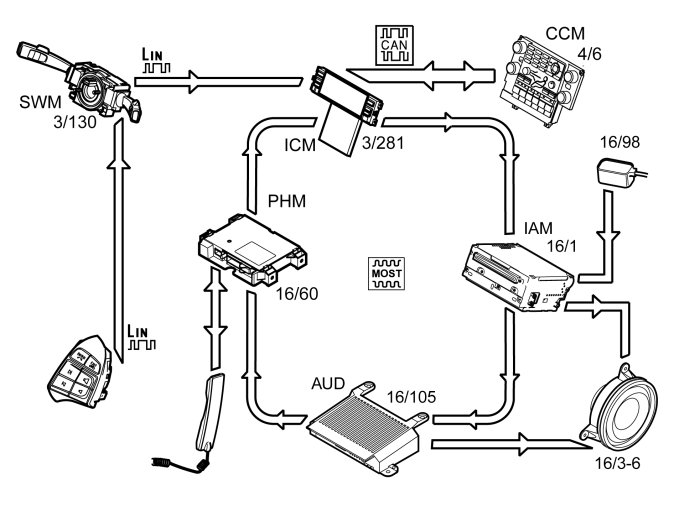

The phone module (PHM) (16/60) does not have its own menu keypad. It is controlled via the keypad of the climate control module (CCM) (4/6) or via the steering wheel buttons.
The climate control module (CCM) transmits menu navigation signals to the Infotainment control module (ICM) (3/281) via the CAN network. The Infotainment control module (ICM) then forwards the signals to the phone module (PHM) via the MOST network.
When using the menu via the steering wheel buttons information is transmitted from the steering wheel module (SWM) (3/130) to the Infotainment control module (ICM) via LIN communication. The information is then transmitted to the phone module (PHM) via the MOST network.
Menu information is shown on the display on the Infotainment control module (ICM). The information is transmitted from the phone module (PHM) to the Infotainment control module (ICM) via the MOST network.
When the phone module (PHM) is started, when there are incoming calls or when the carphone is in use, a request is transmitted to the Infotainment control module (ICM) to use the display.
Phone calls can be connected either via handsfree or via handset (model-dependent).
During calls via handsfree, the microphone and speakers connected to the integrated audio module (IAM) (16/1) and audio module (AUD) (16/105) are used. The phone module (PHM) transmits a request to the Infotainment control module (ICM) to receive access to the speakers and microphone. The Infotainment control module (ICM) transmits the request onward to the integrated audio module (IAM) and audio module (AUD). Communication between the phone module (PHM), Infotainment control module (ICM), integrated audio module (IAM) and audio module (AUD) occurs via the MOST network.
Volvo On Call
Volvo On Call is a system developed by Volvo which gives the owner access to various safety and service features. The system has been developed to give the driver and passengers rapid connection to the Volvo On Call Service Center using the carphone. The staff at the service center determine the action required depending on the circumstances. Using the data provided by the Volvo On Call system, the Service Center is able to identify the exact position of the car so that emergency and/or breakdown services can be directed quickly to the car. The different services provided by the Service Center can be divided into two categories, safety and service.
A Volvo On Call service can be activated in any of the following ways:
- by the customer using the switches for Volvo On Call (3/267)
- by the Volvo On Call Service Center
- by the vehicle system.

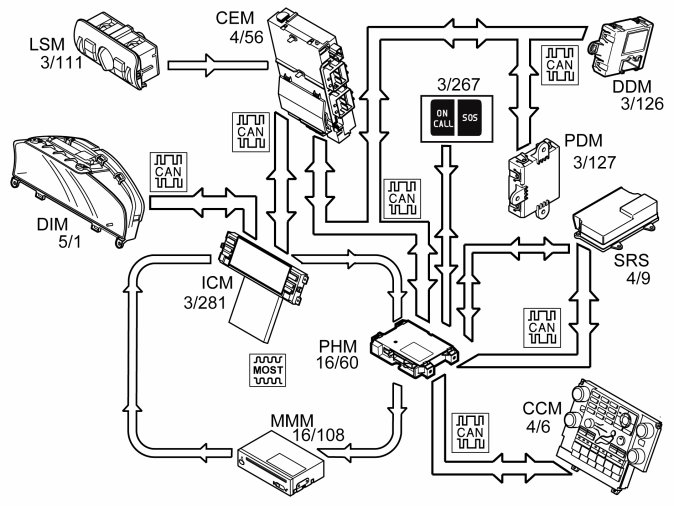

The strength of the lighting in the switches for Volvo On Call is controlled via the rheostat in the light switch module (LSM) (3/111).
Phone Module (PHM) (16/60) receives the rheostat signal directly from Central electronic module (CEM) (4/56) on the MOST-net.
When activating a Volvo On Call service, the phone module (PHM) transmits information to the Infotainment control module (ICM). The Infotainment control module (ICM) transmits this data onwards to the driver information module (DIM)(5/1) so that a text message is displayed indicating that a Volvo On Call service has been activated and its status.
Each time a Volvo On Call service is started, the relevant vehicle data is transmitted to the Volvo On Call Service Center. The vehicle data contains information about:
- Call type. SOS or On Call service.
- The time the message was sent. Phone module (PHM) receives information on time from the central electronic module (CEM) via the CAN network.
- The Vehicle VIN number. Phone Module (PHM) receives information from the central electronic module (CEM) via the controller area network (CAN).
- Alarm status (deactivated, activated, deployed). The phone module (PHM) receives information about the status of the alarm from the central electronic module (CEM) via the controller area network (CAN).
- Ignition switch position. Phone module (PHM) receives information on ignition switch position from the central electronic module (CEM) via the CAN network.
- Vehicle's position. Phone module (PHM) receives the vehicle's position from multimedia module (MMM) (16/108) via the MOST-net or via the direct-connected GPS-antenna.
- Voltage source. The voltage source that is used by the phone module (PHM), main or back-up battery.
- Engine running or not. The phone module (PHM) receives a signal from the central electronic module (CEM) via the controller area network (CAN).
- Fuel volume. The phone module (PHM) receives the information about the remaining fuel volume from the central electronic module (CEM) via the controller area network (CAN).
- Status of main battery. The phone module (PHM) receives information about the voltage over the main battery from the central electronic module (CEM) via the controller area network (CAN).
- Ambient and internal temperature. The phone module (PHM) receives information on the ambient temperature from the central electronic control module (CEM) and the internal temperature from the climate control module (CCM) (4/6) via the CAN network.
- Locked/unlocked. The phone module (PHM) receives information about whether the vehicle is locked from the inside or from the outside, from the Central electronic module (CEM) via the controller area network (CAN).
- Front and rear side window open/closed. Phone module (PHM) receives information about status of front and rear side windows from driver door module (DDM) (3/126) and passenger door module (PDM) (3/127) via the CAN-net.
- SRS activated or not. The phone module (PHM) receives information about whether the vehicle has been in a collision and the SRS system has been activated. The information is received from the Supplemental restraint system module (SRS) (4/9), both via the controller area network (CAN) and the collision cable. The collision cable runs from the Supplemental restraint system module (SRS) to the phone module (PHM) and the central electronic module (CEM). The collision cable is a backup solution in the event of the controller area network (CAN) communication disappearing.
Safety
An SOS service can be started in two different ways:
- automatically, in the event of a collision when a component in the SRS system has been activated
- manually, by the customer pressing the SOS button or selecting the service from the carphone menu.
In a collision where an SRS component is activated, the signal is transmitted from the supplemental restraint system module (SRS) to the phone module (PHM). The phone module (PHM) transmits the vehicle data to Volvo On Call Service Center and connects a call. The call is made in order to establish what action is necessary, for example, whether an ambulance or recovery vehicle is required.
When a Volvo On Call service has been activated the reserve battery is used if there is not sufficient voltage in the main battery.
Service
The Volvo On Call Service Center gives the customer access to various services, such as:
- road assistance
- remote unlocking of the vehicle
- theft message
- localization of stolen vehicle
- remote start of parking heater
- remote-controlled immobilization
- unpermitted movement
The services that the customer can access vary between different markets.
Road assistance
Help in case of, e.g., a flat tire or if you run out of fuel
Remote unlocking of the vehicle
Unlocking of the vehicle if the driver happens to lock the keys in the vehicle. Remote unlocking of the vehicle occurs after the owner has contacted the Volvo On Call Service Center, identified themselves using a password and given the required service. The owner and Volvo On Call Service Center then decide at what time the vehicle should be unlocked. The Service center can then transmit a command to the phone module (PHM) that the vehicle must be unlocked.
The central electronic module (CEM) will then transmit a signal via the CAN network to the phone module (PHM) when the handle on the tailgate is closed. If the signal from the central electronic module (CEM) is within the time interval agreed by the customer and the Volvo On Call Service Center, the phone module (PHM) then transmits a request to unlock the car to the central electronic module (CEM) via the CAN network. Then Central electronic module (CEM) sends a signal to driver door module (DDM), passenger door module (PDM) and Rear electronic module (REM) which unlocks all doors. The phone module (PHM) then transmits an acknowledgement to the Volvo On Call Service Center that the car has been unlocked. When one of the doors or tailgate is opened, the alarm is triggered. The alarm is then active until it is correctly deactivated.
Theft message
If the vehicle alarm is activated, for example by theft, information about the alarm status is transmitted from the central electronic module (CEM) to the phone module (PHM) via controller area network (CAN). If the alarm is active for more than 15 seconds the phone module (PHM) transmits the vehicle data to the Volvo On Call Service Center, which contacts the owner and informs what has happened. In the first instance Volvo On Call Service Center calls the vehicle, if the person answering cannot give the password the owner is called on other numbers that the owner has supplied to the Service center.
Localization of stolen vehicle
If the vehicle has been stolen the owner can request that the service center localizes the vehicle. The Service center transmits a request to the phone module (PHM) to continuously send vehicle data. The interval of the vehicle data that is sent is determined by the Volvo On Call Service Center.
Remote start of parking heater
Applies from and incl. structure week 201020.
With remote start of the parking heater it is possible to set timers for the parking heater as well as start the parking heater directly via a computer with internet connection or via mobile telephone.
Remote-controlled immobilization
Applies for the English, Dutch, and Belgian market. A special version with stricter requirements is available for the Brazilian market. Applies from and incl. structure week 201020.
On certain markets there is a function for remote-controlled immobilization and mobilization. The purpose of the function is to nullify the vehicle's programmed keys in case the vehicle is stolen, for example. The vehicle can be immobilized and mobilized either using Volvo On Call service center or via diagnostic commands in VIDA. For certain markets vehicles can only be mobilized by Volvo On Call service center.
If the vehicle is running when immobilization is requested, the vehicle is immobilized at the next start attempt. Central electronic module (CEM) can, in certain markets, request immobilization if the module detects that Phone module (PHM) does not answer to communication. The function remote-controlled immobilization is diagnosed by Central electronic module (CEM). Immobilization and mobilization of vehicles via diagnostic commands takes place via Phone module (PHM).
Unpermitted movement (model-dependent)
Applies for the English, Dutch, and Belgian market from and incl. structure week 201020.
When the vehicle is to be used, the drivers must identify themselves by entering a six-digit code. If the vehicle is driven off without entering a code this is counted as an unpermitted movement
The function is activated automatically one minute after the vehicle's engine has been turned off, regardless of if the vehicle is locked or not. When the function is active the vehicle is monitored to detect unpermitted movement. Unpermitted movement is either that the vehicle is moved with the engine off (towing or loading and transport on trailer, etc.) or that the vehicle is driven off with the engine on without the right code having been entered. If the wrong code is entered three times in a row this will also be counted as an unpermitted movement, even if no movement has taken place. The limit value for unpermitted movement varies depending on current sensor status and on which market the vehicle has been sold. The limit value is normally between 100 - 400 meters. The function uses angle sensor, odometer, and GPS to detect unpermitted movement.
If the function detects unpermitted movement of the vehicle, a notice is sent from the vehicle to Volvo's On Call Service Center. The vehicle's owner and authorities or police can then be informed that the vehicle has been stolen. The Phone module (PHM) then continuously sends information to Volvo's On Call Service Center about the vehicle's whereabouts in the form of GPS coordinates. This information can be used to make it easier for the driver and authorities or police to locate and recover the vehicle.
Mobile applications (only applies to MY 2012-)
Mobile applications use Volvo On Call to communicate with the vehicle.
