Part 1

Parking assistance, camera, front blind view

INTRODUCTION
- Read through all of the instructions before starting installation.
- Notifications and warning texts are for your safety and to minimize the risk of something breaking during installation.
- Ensure that all tools stated in the instructions are available before starting installation.
- Certain steps in the instructions are only presented in the form of images. Explanatory text is also given for more complicated steps.
- In the event of any problems with the instructions or the accessory, contact your local Volvo dealer.

Parking assistance, camera, front blind view

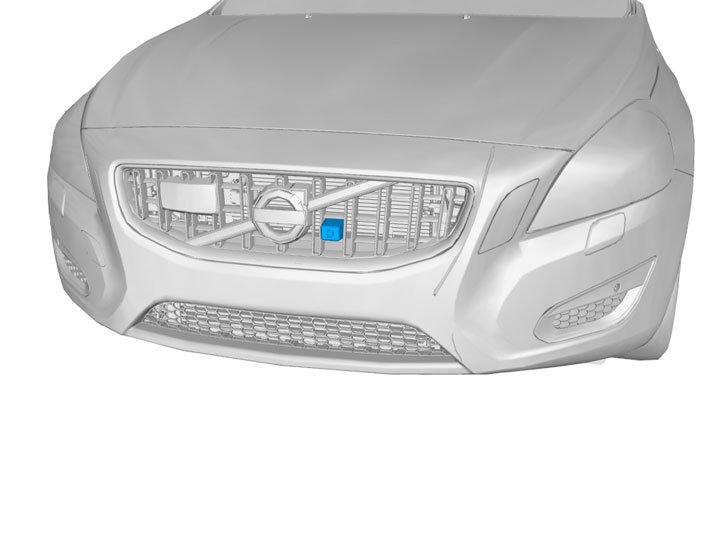

Applies to all models

Note! Some steps in these installation instructions are presented with illustration only.

Work is carried out the same way on left-hand drive cars as on right-hand drive cars. Left-hand drive car shown. In cases where there are differences between left and right-hand drive cars, both versions are shown.

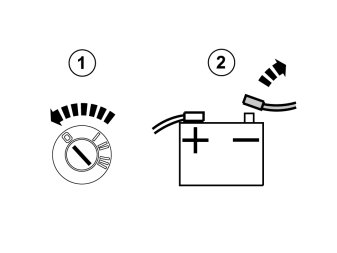

- Turn the ignition key to position 0.
- Disconnect the battery negative lead.

Note! Wait at least three minutes before unplugging the connectors or removing other electrical equipment.

- Remove the side panel on both sides.

- Remove the rear side panel.

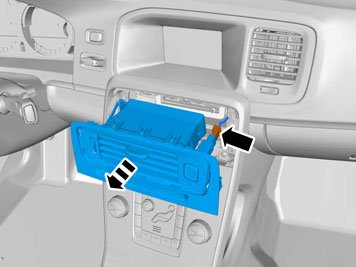

- Carefully pry loose the panel with air blower at the lower edge and then all the way around. The panel is secured by clips on the sides and at the top and with catches on the lower edge.

- Pull out the panel and disconnect the connector for the hazard warning lights.

- Remove the screws.

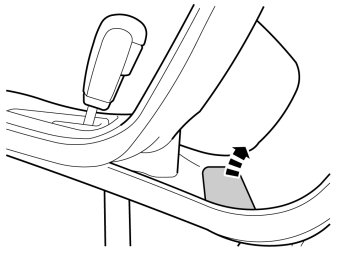

- Fold the floor mat to one side by the left-hand side of the tunnel console.

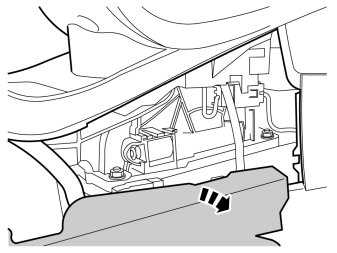

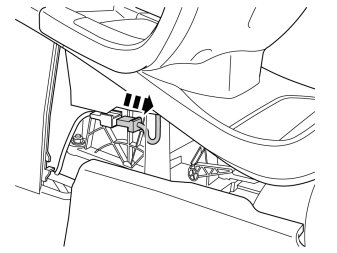

- Loosen the clip on the cable harness from the tunnel console.

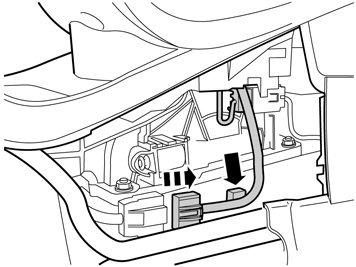

- Disconnect the connector for the CCM.

- Loosen the connector to the keypad for Four-C, if the car is equipped with this.
