Signal Specification, Keyless Vehicle Module (KVM)

Signal specification

General
All values given below are between the terminals stated in column 1 and terminal #B4 (power ground). This applies unless otherwise indicated in brackets.

Note! It is important to connect the breakout box and check the ground connections before starting to measure.

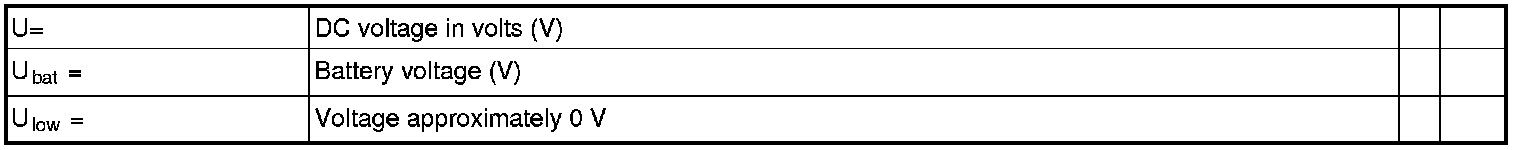

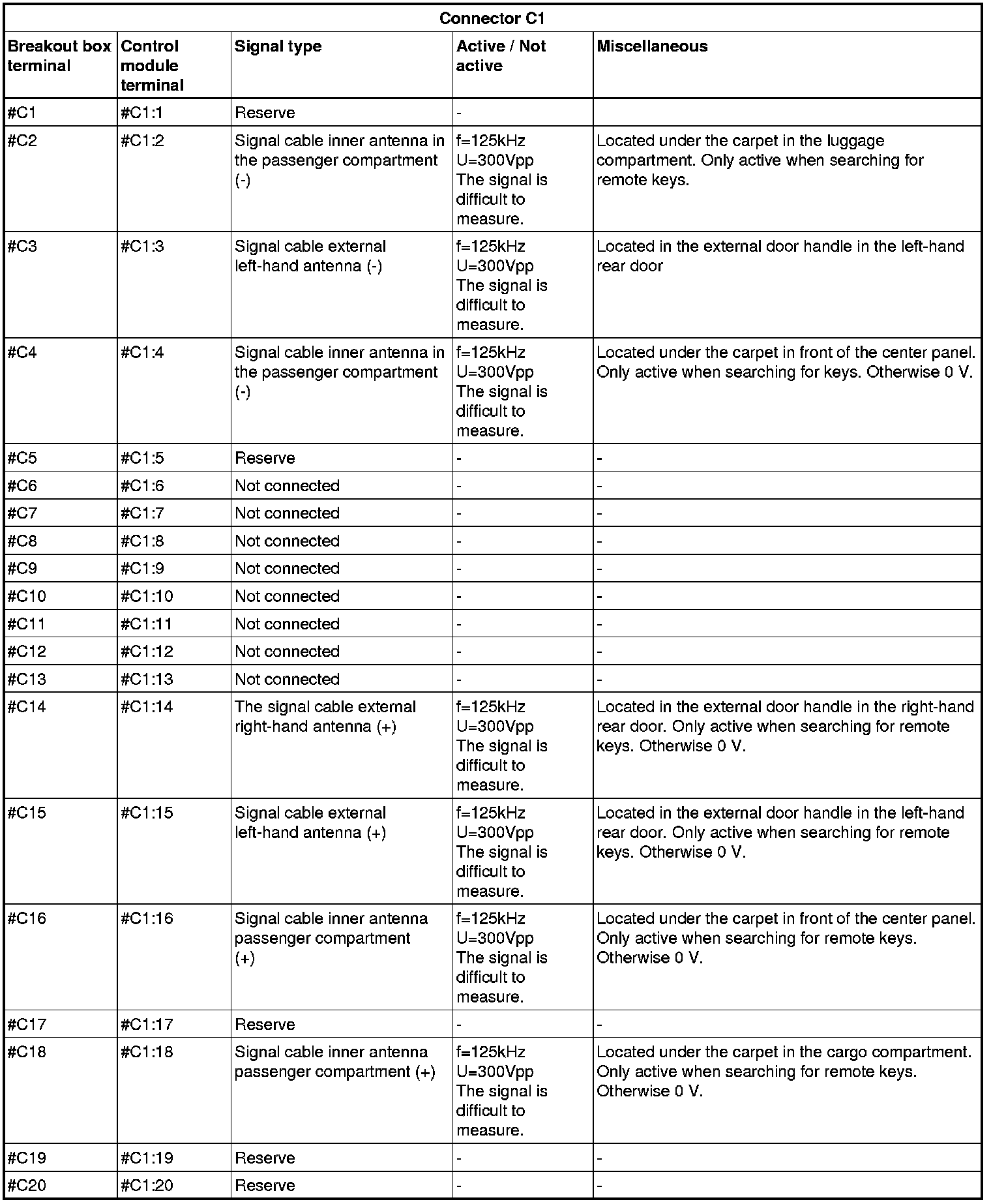

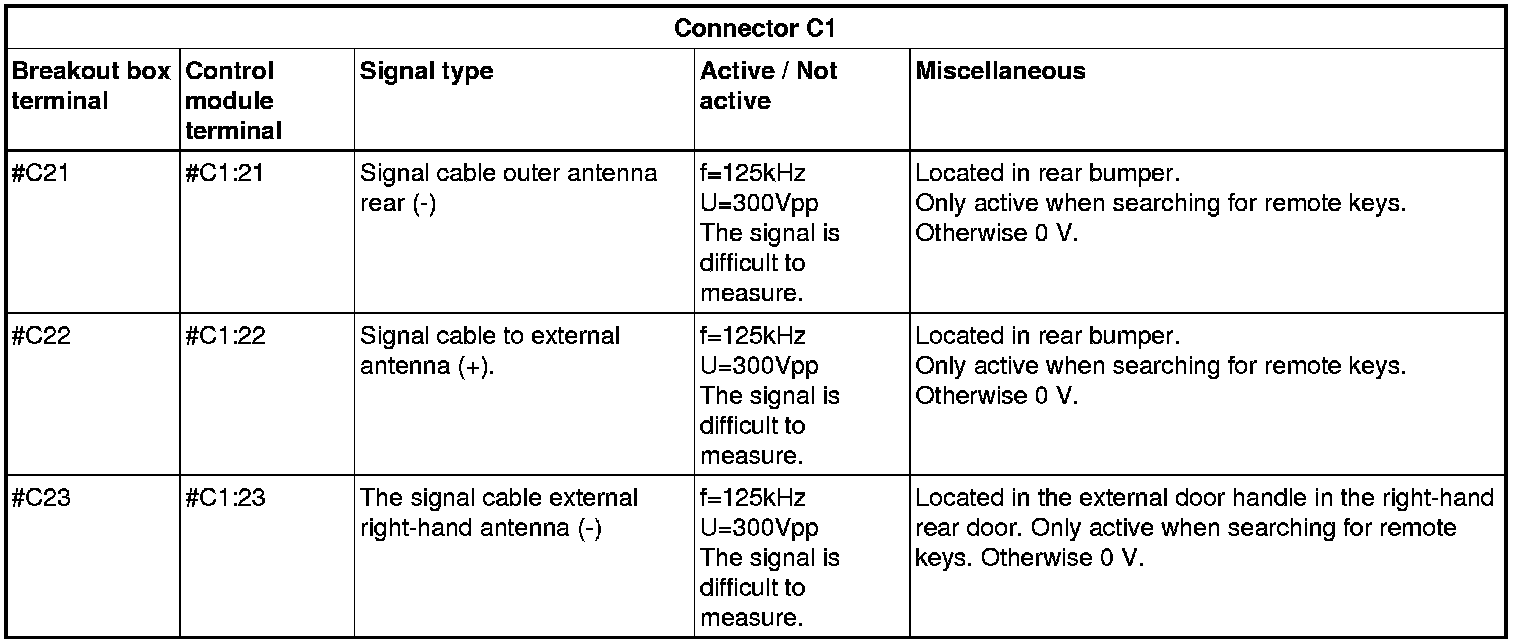

Connector C1

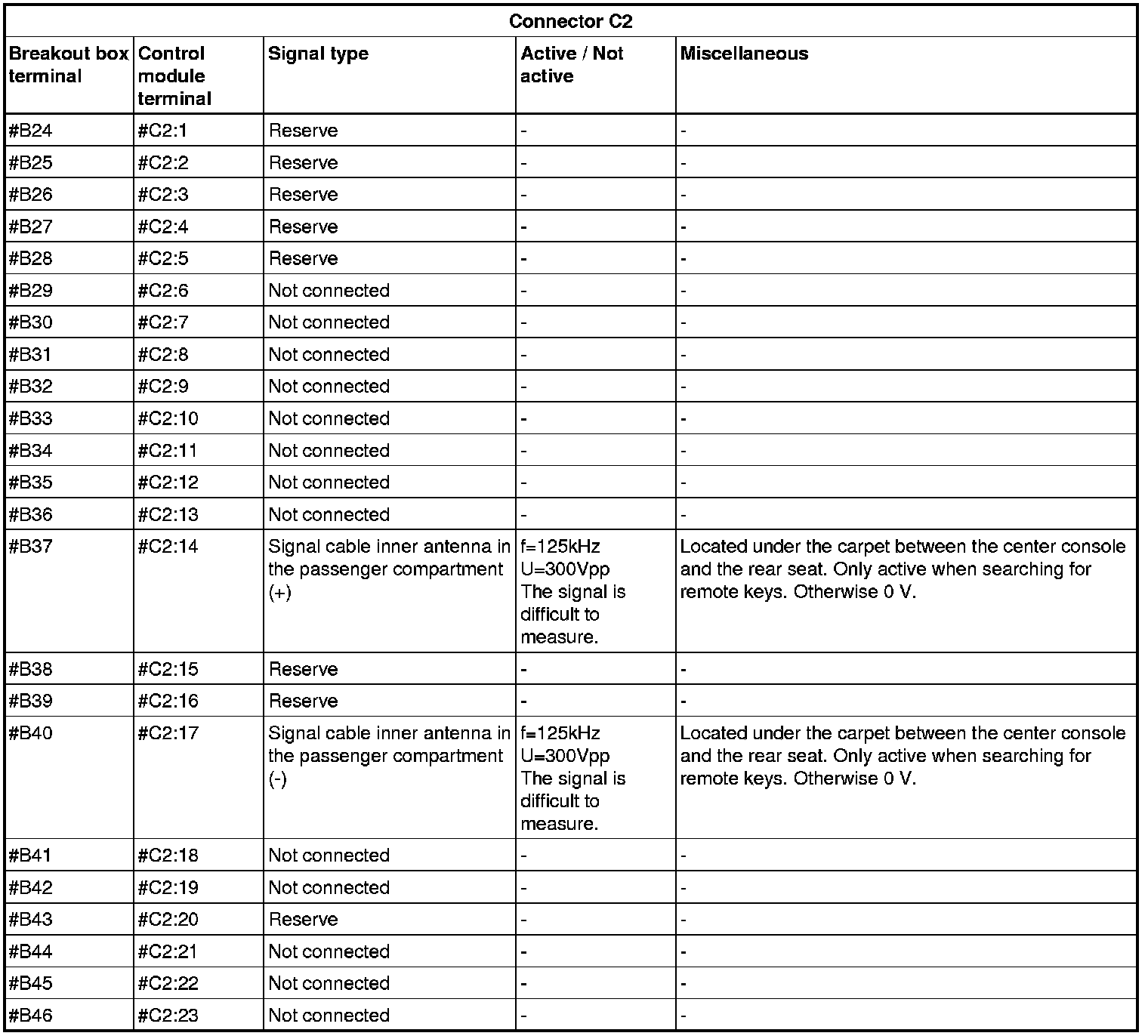

Connector C2

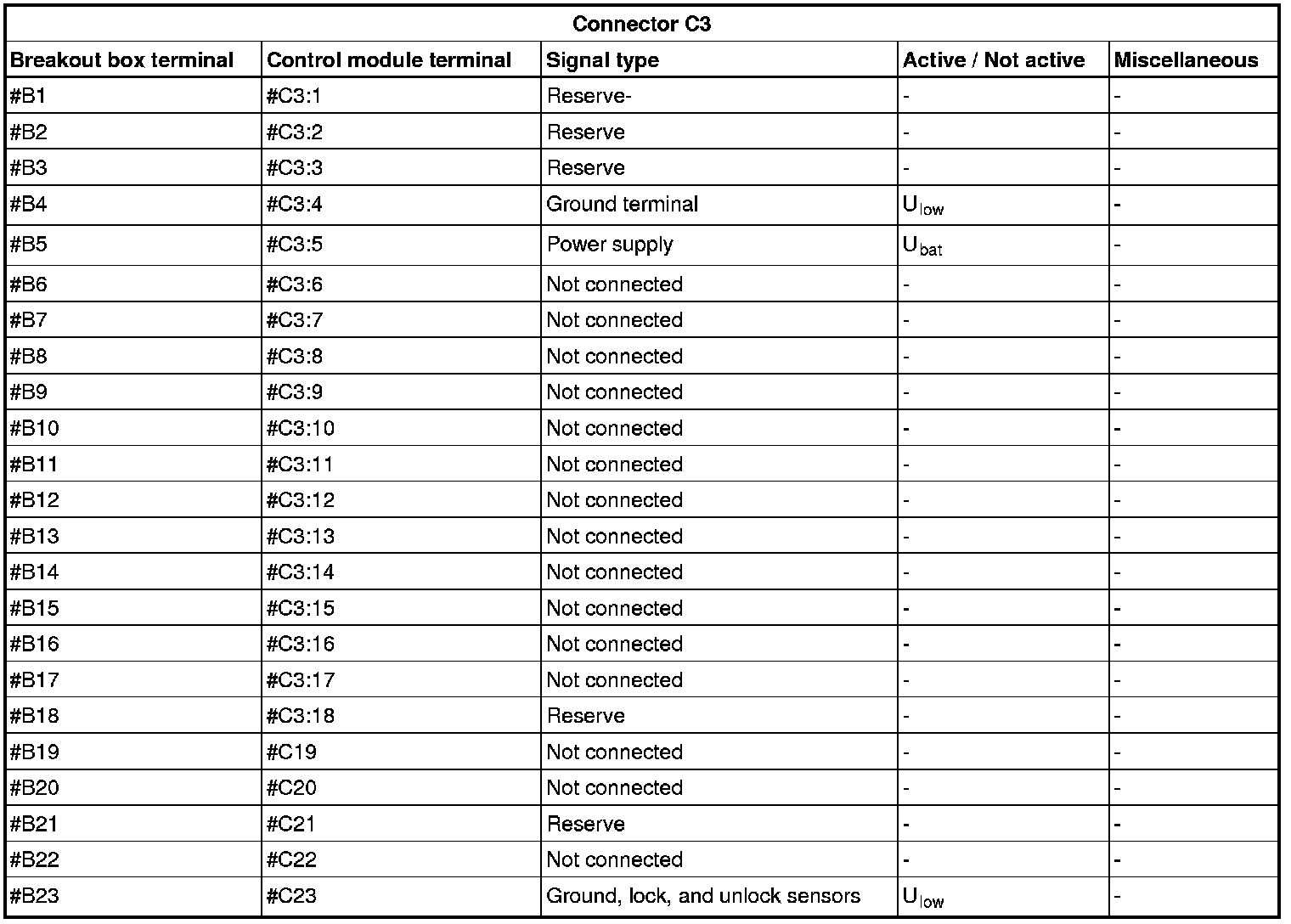

Connector C3

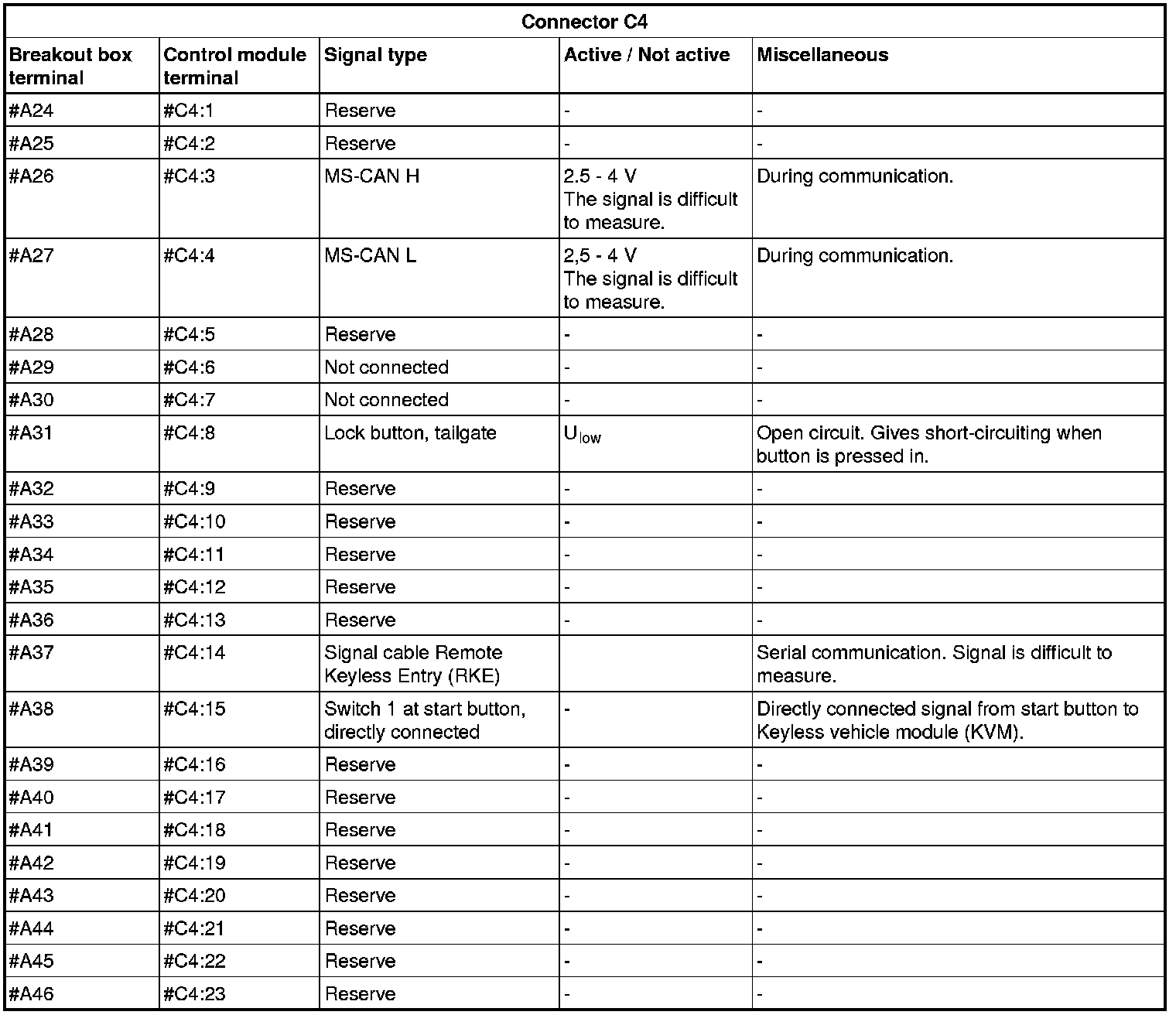

Connector C4

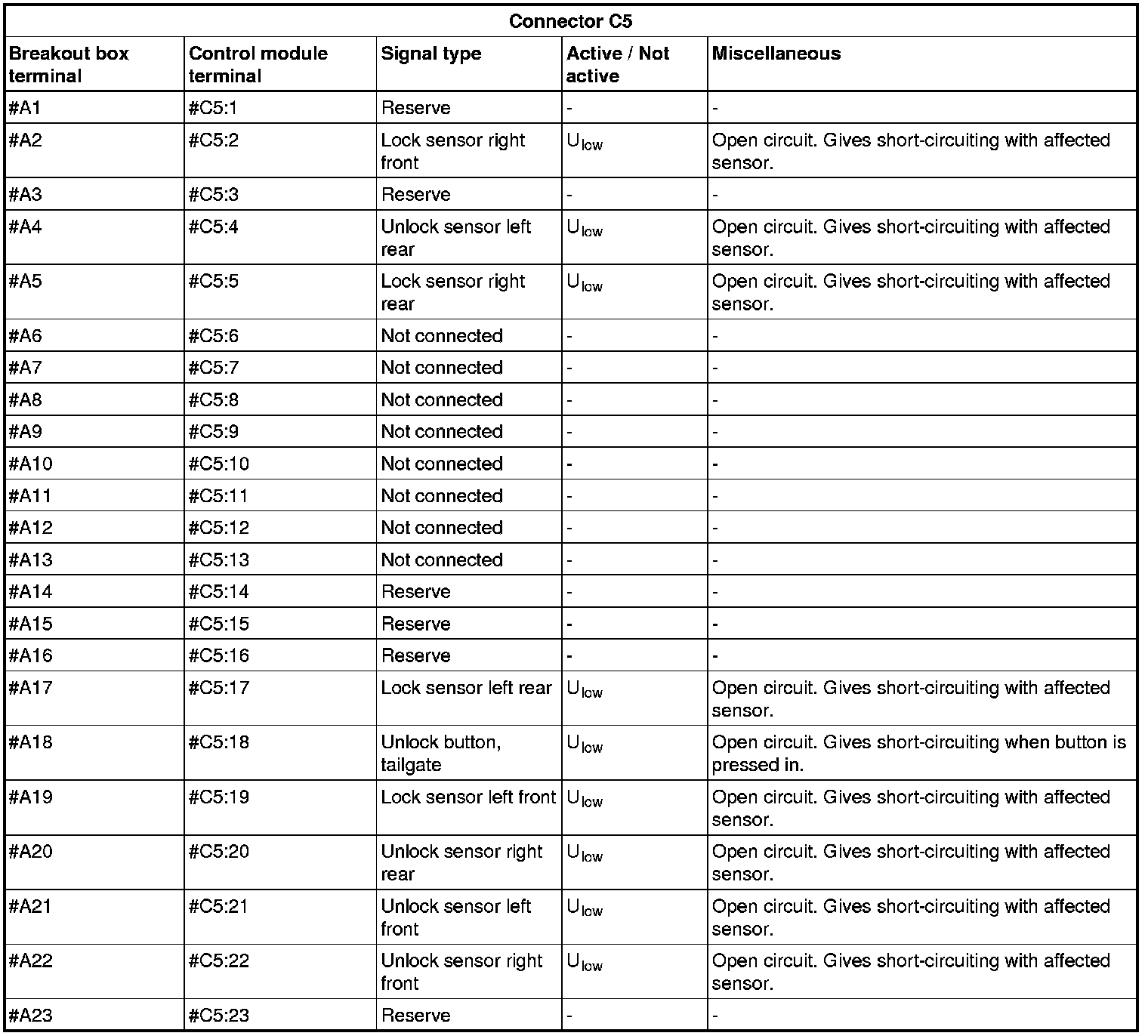

Connector C5
