Locking System Receiver

Operation number: 36651-2

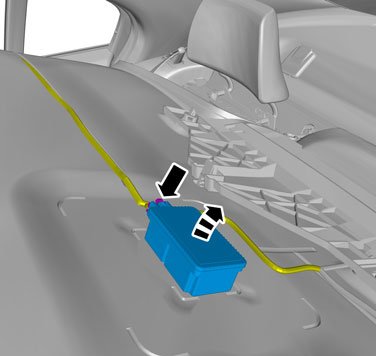

Locking system receiver

Removal

Note! Removal steps in this procedure may contain installation details.





Remove the following items:
- B-pillar trim panel Refer to: B-pillar trim panel B-Pillar Trim Panel
- C-pillar trim panel Refer to: C-pillar trim panel C-Pillar Trim Panel

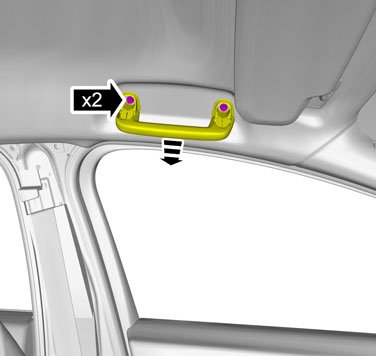

On both sides.
Torque: M6, 10 Nm

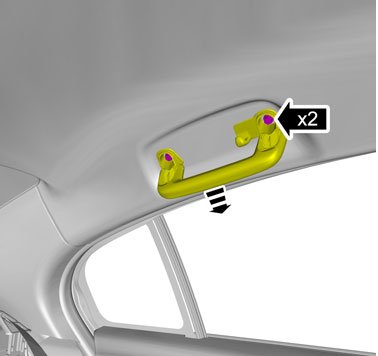

On both sides.
Torque: M6, 10 Nm

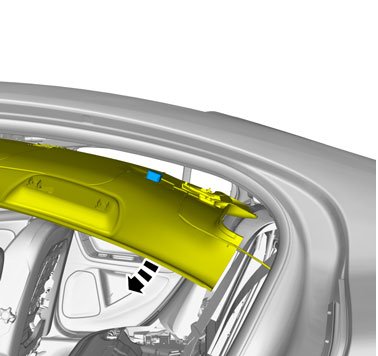

Caution! Take extra care not to crease the headliner.





Installation

To install, reverse the removal procedure.
