System Overview

System overview

General




The start inhibition system is a comprehensive function of the vehicle security system. The logic for start inhibition is in the engine control module (ECM). The system for start inhibition reads off a number of values from the controller area network (CAN). These values are used to determine whether the criteria for the engine control module (ECM) to activate the starter motor are met. The system for start inhibition reads off whether the immobilizer check is OK or not. For further information, see Function Function
There are a number of functions in the car's security system:
- Immobilizer
- Steering column lock
- Key warning
- Alcolock (option)
- Remote-controlled immobilization (option, only certain markets).
The various functions depend on different control modules and components.

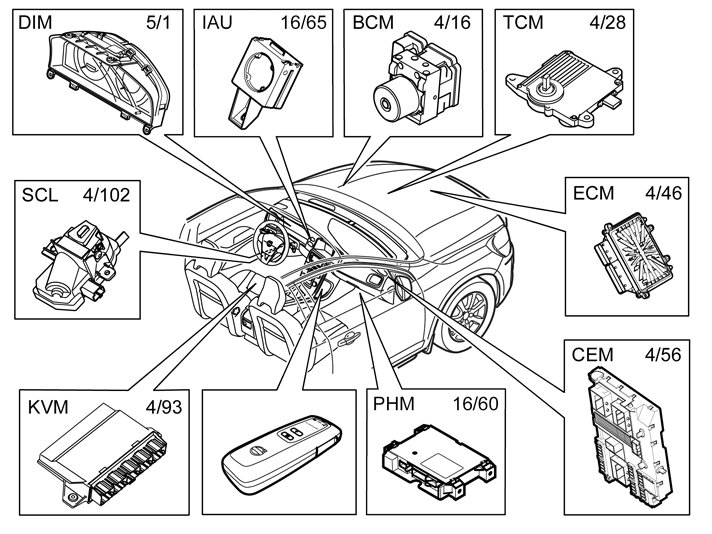

The following are included in the immobilizer system:
- Central electronic module (CEM)
- Keyless vehicle module (KVM) (only vehicles with the keyless locking system)
- Ignition antenna unit (IAU)
- Steering Column Lock Module (SCL) (does not apply to USA/CAN-market).
- Engine control module (ECM)
- Brake control module (BCM)
- Phone module (PHM) (only vehicles with remote-controlled immobilization).

The following are included in the steering column lock system:
- Central electronic module (CEM)
- Steering Column Lock Module (SCL) (does not apply to USA/CAN-market).
- Engine control module (ECM)
- Brake control module (BCM)
- Transmission control module (TCM)

The following are included in the key warning system:
- Central electronic module (CEM)
- Driver information module (DIM)
- Keyless vehicle module (KVM) (only vehicles with the keyless locking system)

Included in the Alcolock system (not in vehicles with the keyless entry locking system):
- Central electronic module (CEM)
- Driver information module (DIM)
- Remote Receiver Module (RRX)
For further information about the different functions, see Function.
Definitions:
Activated system: The system means that the vehicle cannot be started.
Deactivated system: Key check has been carried out and the remote key has been approved. The system permits the car to start.

Signals

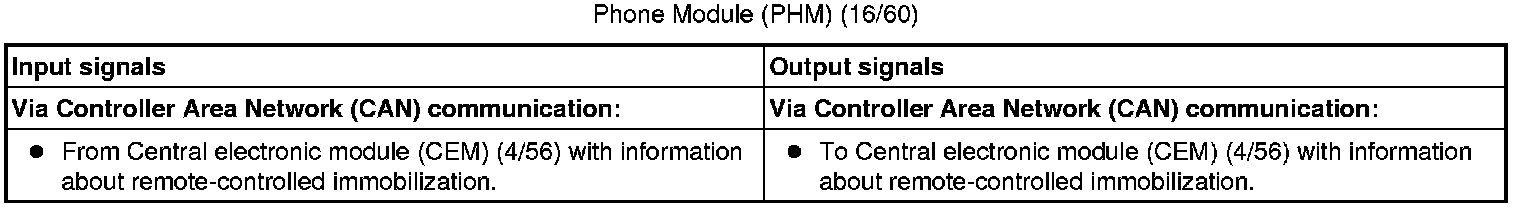

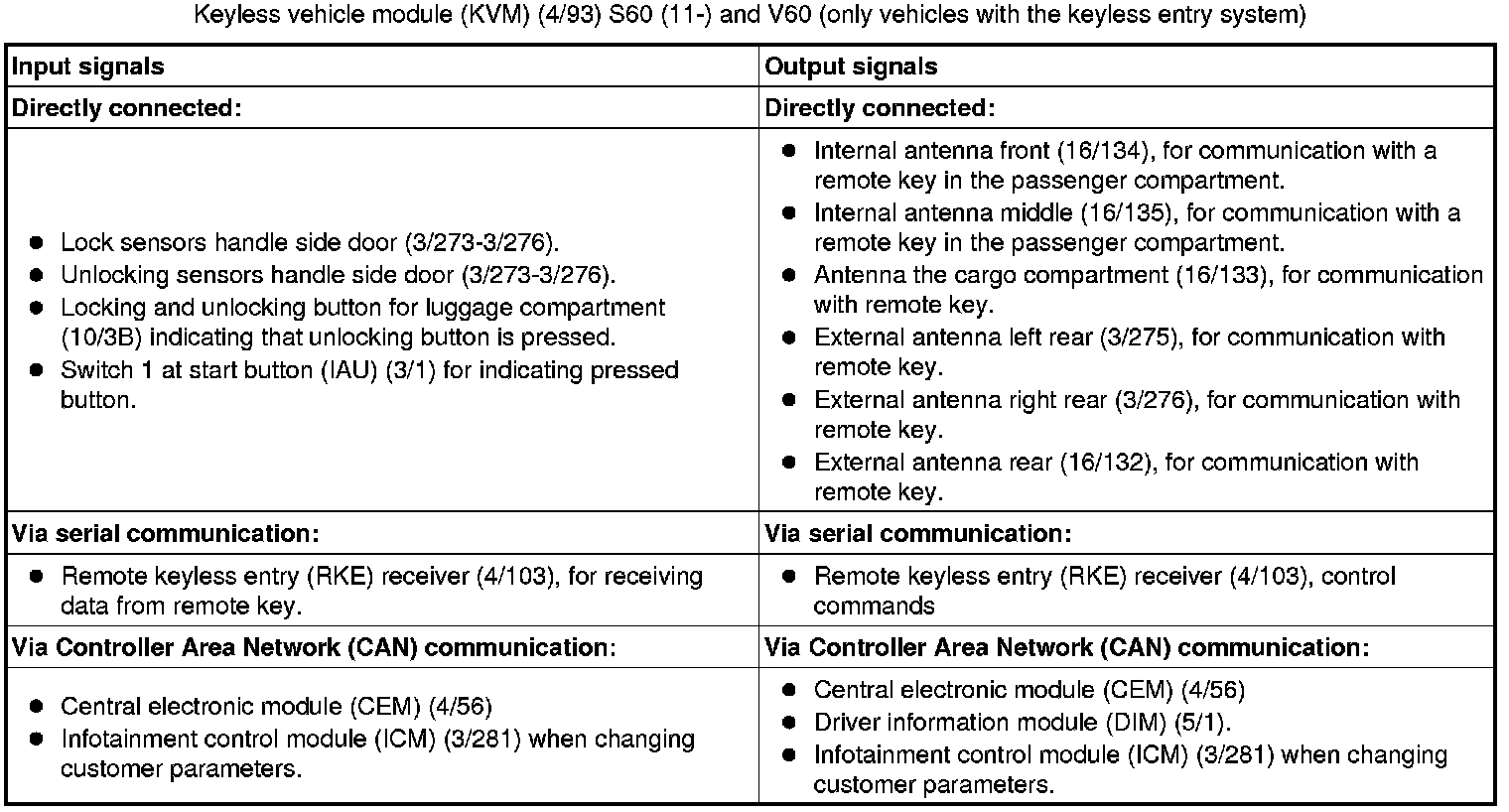

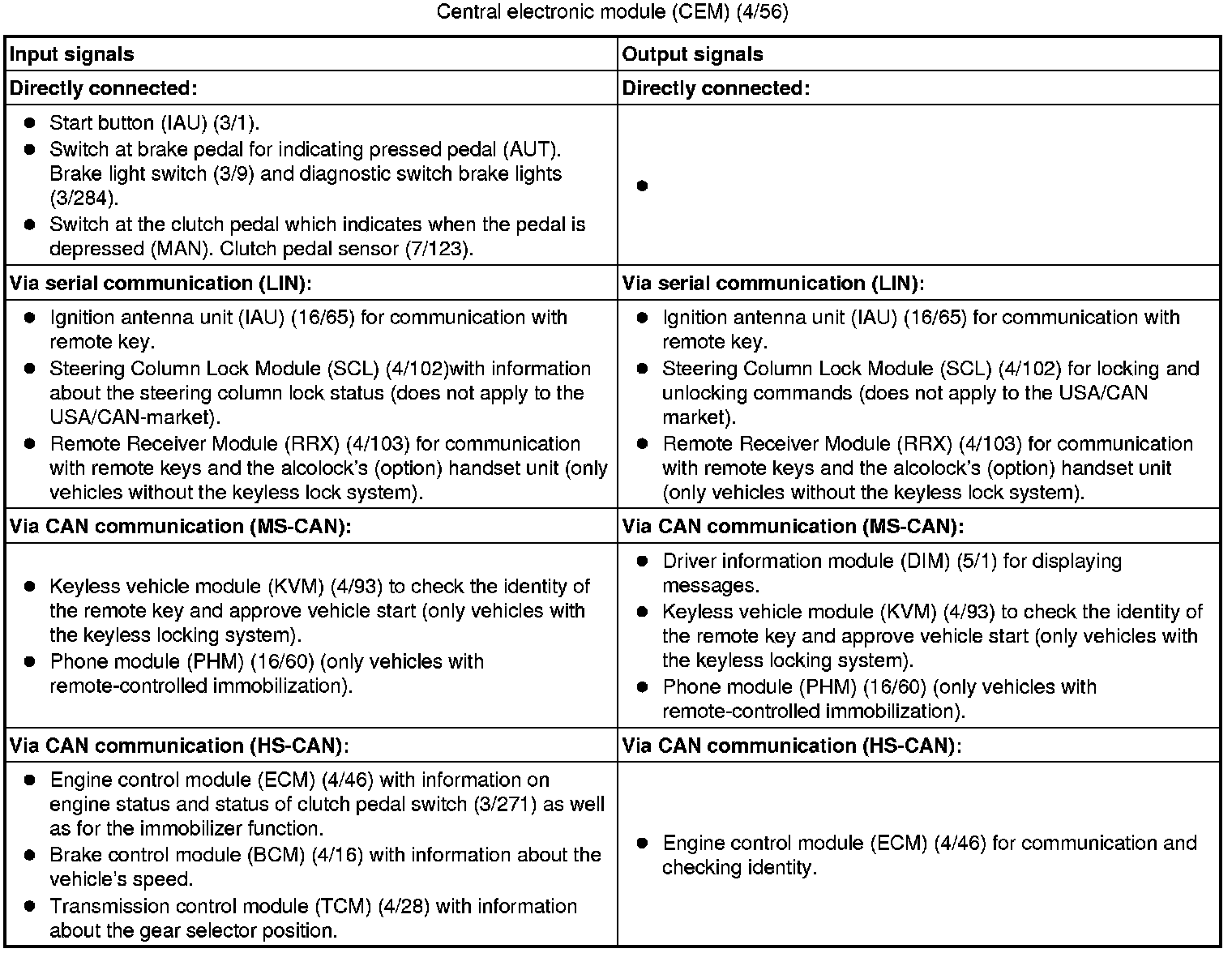

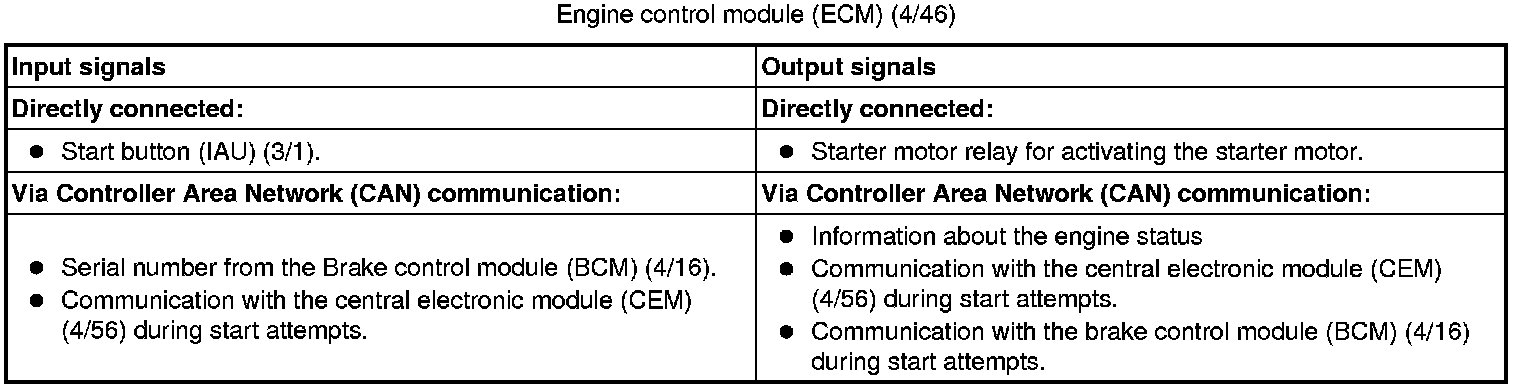

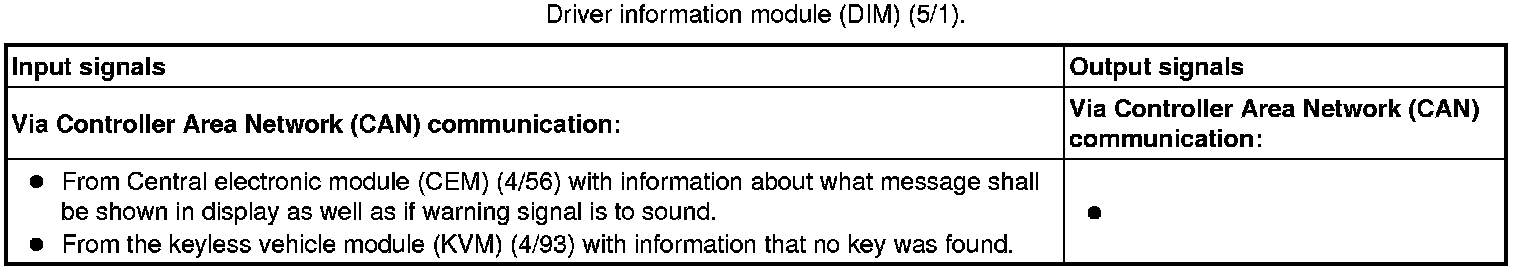

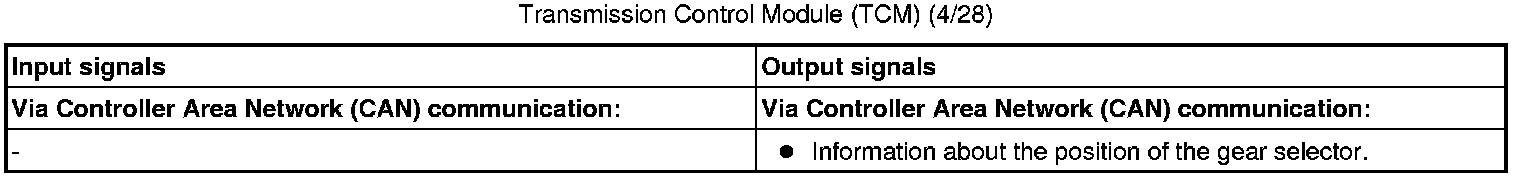

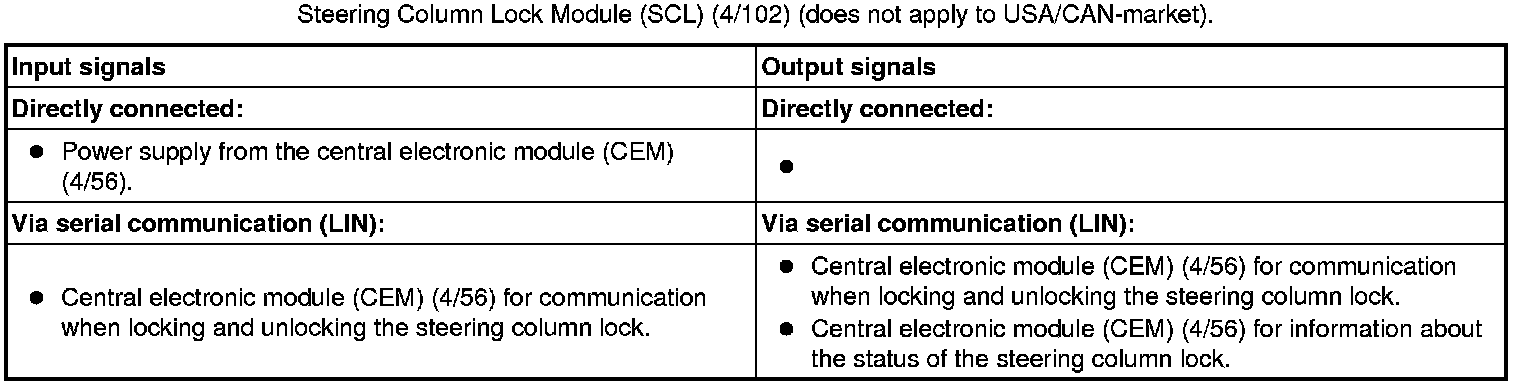

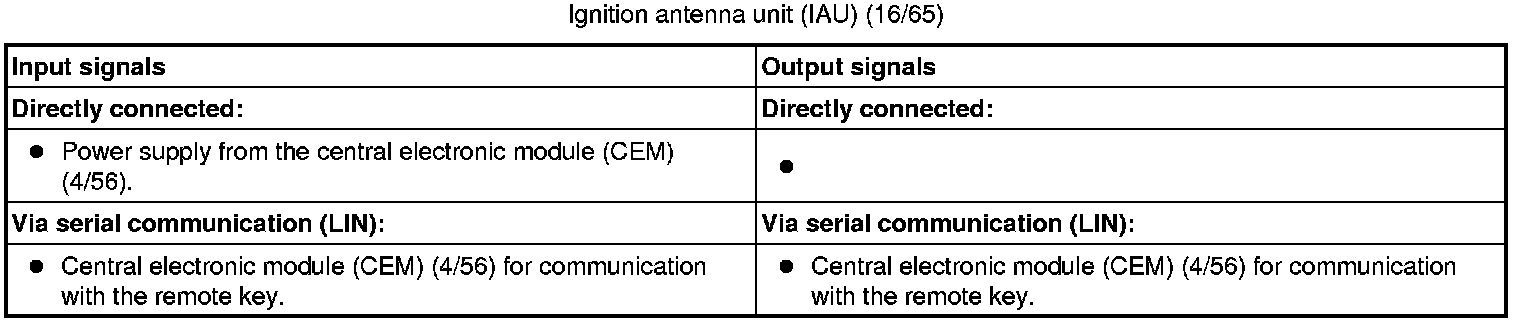

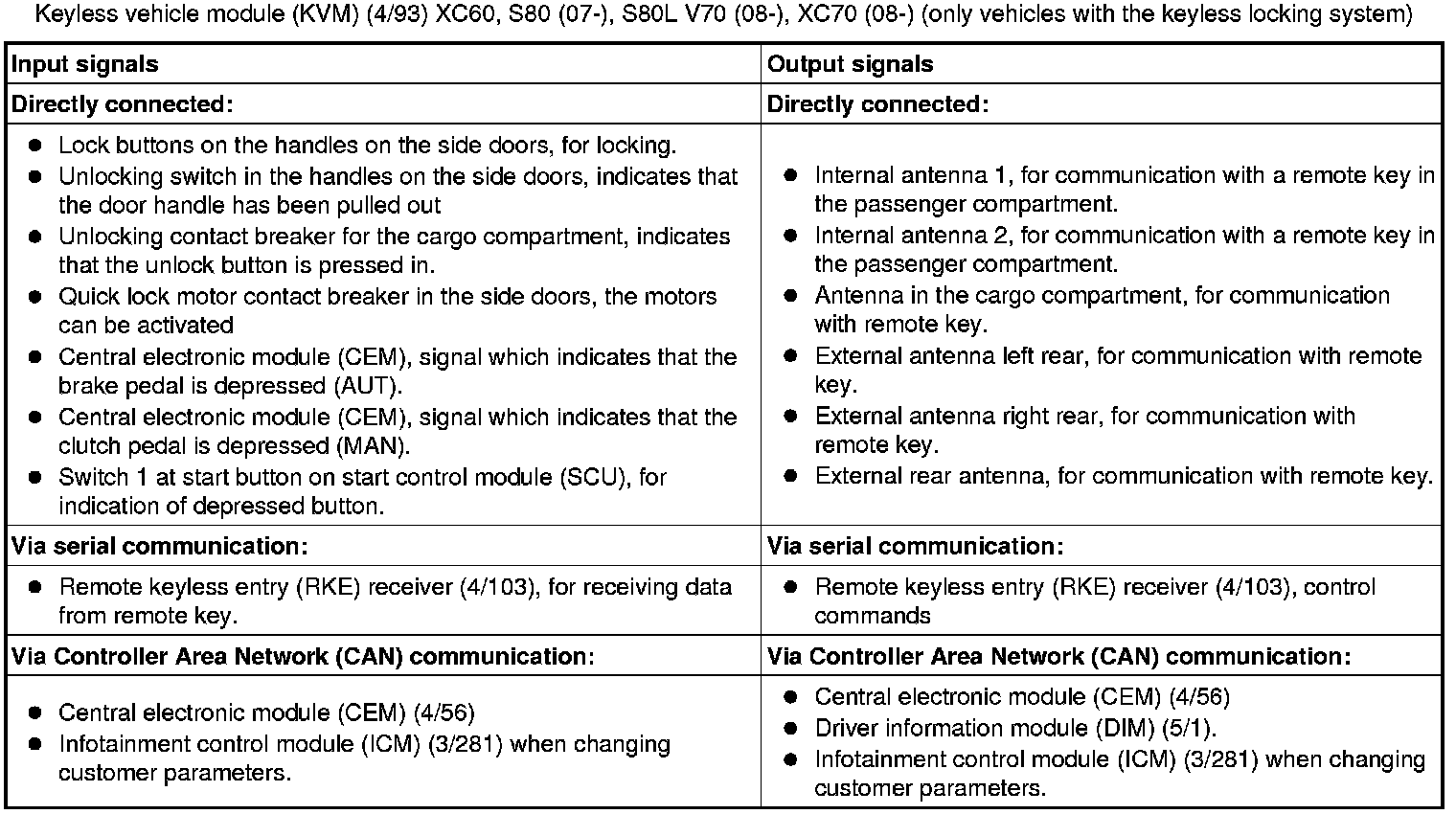

The tables below summarize the input and output signals to the units in the system for the immobilizer. The signal types are divided into directly connected signals, serial communication and controller area network (CAN) communication.
