Procedures

Alarm, Volvo Guard Alarm System, movement sensor























INTRODUCTION
- Read through all of the instructions before starting installation.
- Notifications and warning texts are for your safety and to minimize the risk of something breaking during installation.
- Ensure that all tools stated in the instructions are available before starting installation.
- Certain steps in the instructions are only presented in the form of images. Explanatory text is also given for more complicated steps.
- In the event of any problems with the instructions or the accessory, contact your local Volvo dealer.

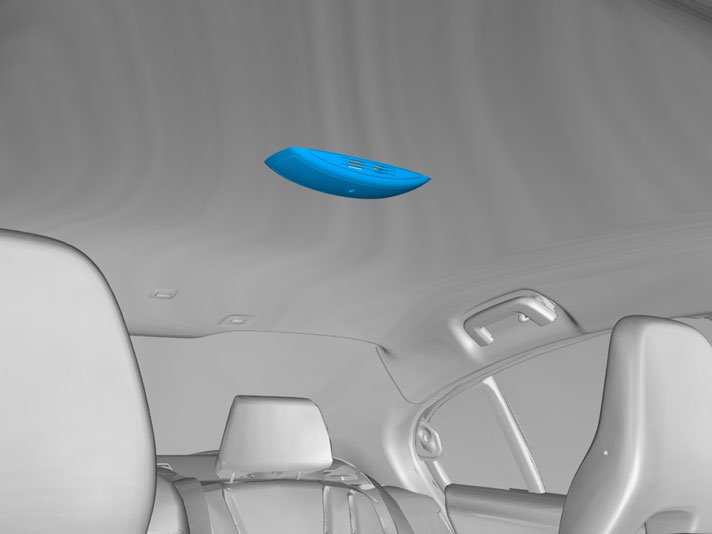

Alarm, Volvo Guard Alarm System, movement sensor

Note! This accessory requires software unique to the car.

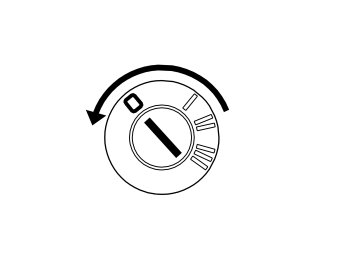

- Turn the ignition key to position 0.

Note! Wait at least three minutes before disassembling the connector or removing other electrical equipment.

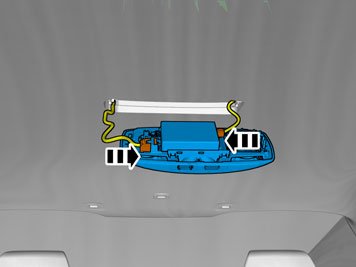

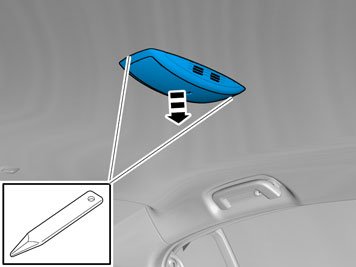

- Disconnect the connector from the lamp and place to one side. Use a new lamp.

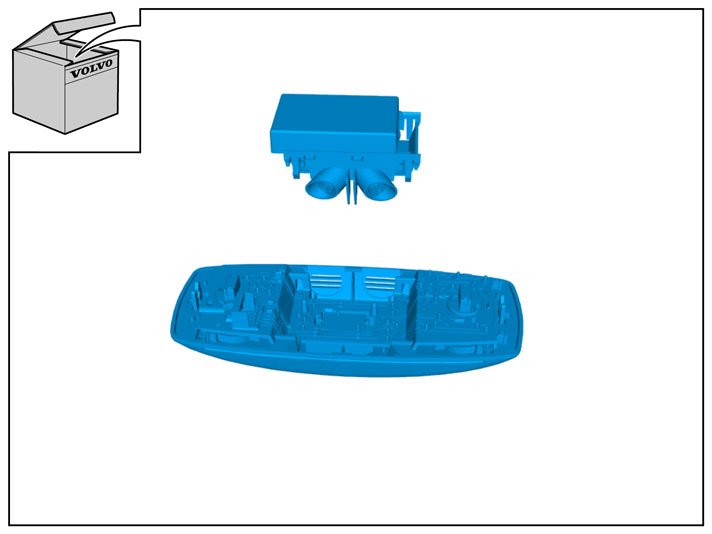

- Take the sensor and new lamp from the kit.

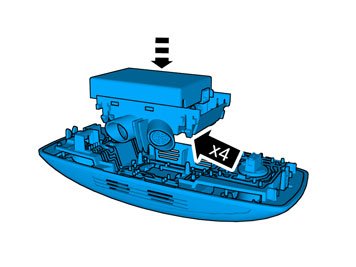

- Press the sensor into the lamp.

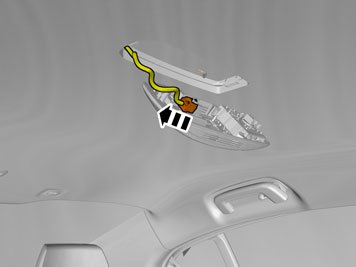

- Connect the sensor to the existing cable that is on top of the roof panel.

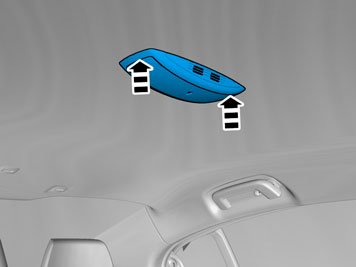

- Connect the lamp. The contact in the sensor should point to the left and the contact in the lamp to the right when the unit is reinstalled in the car.










- Download software (application) for the accessory's function
