Diagnostic Trouble Code (DTC) Information

Diagnostic trouble code (DTC) information KVM-U210100

Condition

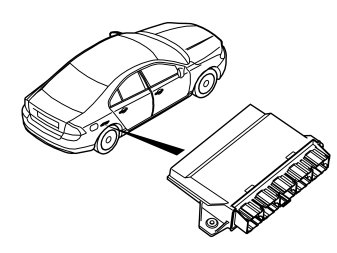

Keyless vehicle module (KVM) compares its configuration with the vehicle configuration stored in the Central electronic module (CEM).
The diagnostic trouble code (DTC) is stored if the control module detects that:
- Vehicle configuration from Central electronic module (CEM) is incorrect.
The control module's test for the diagnostic trouble code (DTC) starts in the event of:
- Control module supplied with power.

Note! The control module can only detect the fault once the test has been started and the diagnostic trouble code (DTC) is stored when the conditions are met.





Substitute value
- None.

Possible source
- Fault-trace the central electronic module (CEM).

Fault symptom[s]
- No keyless functionality
