Fault-Tracing Information
Fault-tracing
Checking the status
- Ignition on
Read the diagnostic status and fault status for the diagnostic trouble code by selecting the diagnostic trouble code in the list.
Check if the malfunction is permanent or intermittent by reading off the diagnostic trouble code's status when the diagnostic status is "Implemented".
If the trouble status is "Malfunction found", this indicates that the malfunction is permanent. If the trouble status is "No malfunction found", this indicates that the malfunction is intermittent and not active right now.
Note! Trouble status cannot go from "Malfunction found" to "No malfunction found" in the same operating cycle.
Continue - Checking components and wiring
-------------------------------------------------
Checking components and wiring
- Ignition off

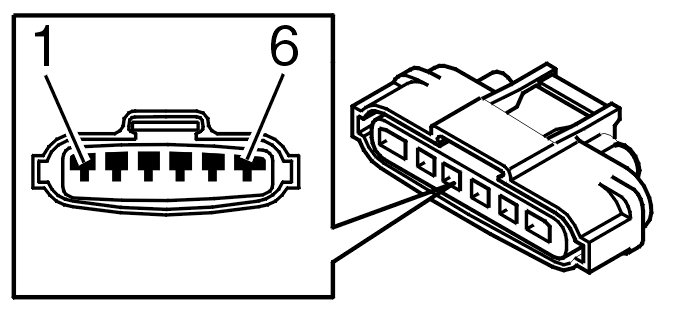

Check engine control module ECM) and the electronic throttle unit's connector for contact resistance and oxidation.
Remedy as necessary.
Other information
- Connecting the breakout box, B6304T4 Breakout Box Connection, Engine Control Module (ECM)
- Signal specification, B6304T4 Signal Specification, Engine Control Module (ECM)
- Throttle body, B6304T4 Removal and Replacement
- Checking wiring and terminals Checking Wiring and Terminals. Permanent Faults
Continue - Verification
-------------------------------------------------
Fault-tracing information
Attempt New Test - Checking components and wiring
-------------------------------------------------
Verification
Verification
Hint: After carrying out the repair, check that the fault has been remedied.
- Ignition off
- Reinstall the connectors, components etc.
- Ignition on
Activate throttle position read off.
Check that the throttle angle and both sensor values correspond.
Are the values within their permitted range?
Yes - VERIFIED
No - VERIFICATION FAILED
------------------------
VERIFICATION FAILED - Fault-tracing information
VERIFIED - FAULT FOUND
-------------------------------------------------
