Fault-Tracing Information

Fault-tracing

Checking diagnostic trouble codes (DTCs)
If DTC TCM-P088513 is stored in the Transmission control module (TCM), it must be troubleshot first as it can be the root cause of why the DTC is stored.
If DTC TCM-P088513 is not stored, press continue.

Continue - Checking communication with the gear selector module (GSM)

-------------------------------------------------

Checking communication with the gear selector module (GSM)




- Ignition on.

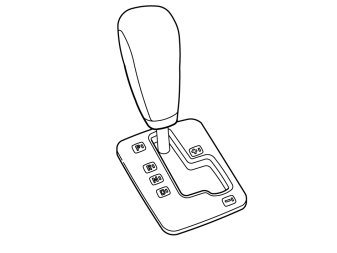

- Read off the position of the gear selector.
- Depress the brake pedal. Move the gear selector to the position for manual shifting and check that the status changes.
- Then move the gearshift selector toward both + and -, and check that the value has been updated in the driver information module's display window.
If the value is updated in the driver information module display, the fault is intermittent. That is to say, it occurred earlier but is not active right now.









Continue - Checking the components and wiring

-------------------------------------------------

Verification




Verification

Hint: After carrying out the repair, check that the fault has been remedied.








- Ignition off.
- Reinstall the connectors, components etc.
- Ignition on.
- Read off the position of the gear selector.
- Depress the brake pedal. Move the gear selector to the position for manual shifting and check that the status changes.
- Then move the gearshift selector toward both + and -, and check that the value has been updated in the driver information module's display window.





Does the value change?

Yes - VERIFIED

No - VERIFICATION FAILED

------------------------

VERIFICATION FAILED - Fault-tracing information

VERIFIED - FAULT FOUND

-------------------------------------------------

Fault-tracing information




Information

Fault-tracing information
The fault should have been detected and remedied. As this is not the case fault-tracing has failed.
Exit fault-tracing for this diagnostic trouble code (DTC) or make another attempt.

Do you want to exit fault-tracing?

Yes - Exit fault-tracing

No - Attempt New Test

------------------------

Attempt New Test - Checking communication with the gear selector module (GSM)

-------------------------------------------------

Checking the components and wiring




- Ignition off.
Check connector (16 pin) for the transmission control module (TCM) and gear selector module (GSM). Check for contact resistance and oxidation.
Check the communication cable (LIN) for open circuit.
Take readings between:
- Transmission control module (TCM) terminal #A7 and gear selector module (GSM) terminal #2.
Check for open circuit.
Take readings between:
- Transmission control module (TCM) terminal #A16 and gear selector module (GSM) terminal #1.

Hint: The gear selector module (GSM) is supplied power from the transmission control module (TCM).

Check the ground lead. Check for an open-circuit.
Take readings between:
- Gear selector module (GSM) terminal #6 and the ground connection.
If no fault can be found, replace the gear selector module (GSM).

Other information
- Breakout box, connecting, B6304T4, TF-80SC AWD, B5254T5, TF-80SC Connecting Breakout Box, Transmission Control Module (TCM)
- Signal specification, B6304T4, TF-80SC AWD, B5254T5, TF-80SC Signal Specification, Transmission Control Module (TCM)
- Checking wiring and terminals Checking Wiring and Terminals. Permanent Faults
- For access to connector: Solenoid gear selector assembly, B6304T4, TF-80SC AWD, B5254T5, TF-80SC Solenoid Gear Selector Assembly
- For access to connector: Transmission Control Module (TCM), B6304T4, TF-80SC AWD, B5254T5, TF-80SC Transmission Control Module (TCM)
- Top panel gear selector assembly, B6304T4, TF-80SC AWD, B5254T5, TF-80SC Top Panel Gear Selector Assembly









Continue - Verification

-------------------------------------------------
