Diagnostic Trouble Code (DTC) Information

Diagnostic trouble code (DTC) information

Condition




The knock sensor signal varies with engine speed. The engine control module (ECM) checks that the knock sensor signal is within certain limits, which are determined by engine speed. The diagnostic trouble code is generated if the signal from the knock sensor is not within the limit values.
The diagnostic trouble code can be diagnosed during a road test.

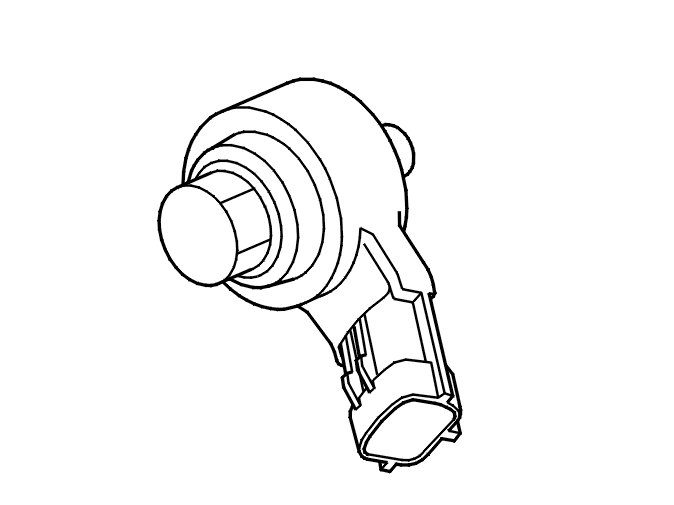

The diagnostic trouble code refers to knock sensor 2.

Substitute value
- Ignition angle reduction for reasons of safety.

Possible source
- Contact resistance or oxidation in the connector for the knock sensor (KS).
- Loosely installed knock sensor (KS).
- Damaged knock sensor (KS).

Fault symptom[s]
- Driving/Poor performance/lacks power/At take off
- Driving/Poor performance/lacks power
- Driving/Hesitates/surges/Unsure when/at all times
- Driving/Hesitates/surges/During acceleration
- Driving/Hesitates/surges/During deceleration
- Driving/Hesitates/surges/At steady speed
