Diagnostic Trouble Code (DTC) Information

Diagnostic trouble code (DTC) information CEM-1D1796

Condition

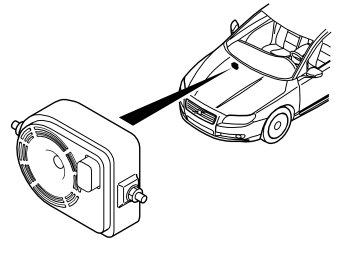

Central electronic module (CEM) checks the function of siren (SCM) via control messages.
The diagnostic trouble code (DTC) is stored if the control module detects that:
- Siren (SCM) has registered an internal error.
The control module's test for the diagnostic trouble code (DTC) starts in the event of:
- Activation of the alarm function.

Note! The control module can only detect the fault once the test has been started and the diagnostic trouble code (DTC) is stored when the conditions are met.





Substitute value
- None.

Possible source
- Internal fault in the siren control module (SCM).

Fault symptom[s]
- No audible signal when alarm is triggered
