Fault-Tracing Information

Fault-tracing

Checking calibration
The trouble code is initially set and erased first after completed calibration.
Calibration of the rear camera must be performed after:
- Changing rear camera.
- Changing Parking Assistance Camera (PAC).
- Change or adjusting of body parts that affect the camera's calibration.
Before calibrating:
- Check that the Parking Aid Camera, tailgate, tailgate handle, rear bumper, and the bumper's vertical contours are correctly installed and adjusted. For S60(2011-) and V60 there are no vertical contours to help. The towing eye should be installed here. For instructions on how to install the towing eye, see link below.
- Clean the parking camera's lens according to owner's manual.
- For best results, make sure that the surface on which the vehicle is standing is not of the same colour as the vehicle's rear bumper.
- Engage reverse gear.
Start service calibration of parking camera by clicking on the symbol for VCT2000.
Calibration activates a dash shown together with the display from the rear camera in the front display screen.
Use the buttons in the calibration procedure to move the dash so that it corresponds as well as possible with the outer contours of the rear bumper. One press of the button only gives a small movement.
There are ten colors that can be chosen for the dash, change using the button to the colour that gives the best contrast.

Hint: Move up the dash so that it is a bit above the bumper. Place it correctly laterally. Move down the dash so that it is positioned vertically along the rear bumper. Rotate the dash so that the vertical lines (XC60) are placed over the rear bumper's vertical structure. For S60(2011-) and V60 instead the towing eye's dash shall be placed over the towing eye.

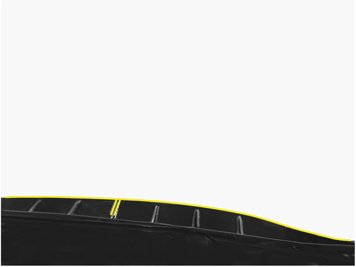

After finished positioning, the dash shall follow the rear bumper's contours as shown.
Do not forget to save the calibration before finishing.

Other
- Parking Aid Camera Removal and Replacement









Continue - Verification

-------------------------------------------------

Verification




Verification
Access to the vehicle is necessary for the following checks.
- Activate parking camera in the menu.
- Activate distance information in the menu.
- Ignition position II or engine running.
- Engage reverse gear.
Check that:
- An image of what is behind the vehicle is shown on the front display screen.
- Help lines change when the steering wheel is turned.
- Help lines are shown for the vehicle's lateral position as well as bars for any objects behind the vehicle.

Is the function OK?

Yes - VERIFIED

No - VERIFICATION FAILED

------------------------

VERIFICATION FAILED - Information

VERIFIED - FAULT FOUND

-------------------------------------------------

Information

Attempt New Test - Checking calibration

-------------------------------------------------
