Part 4

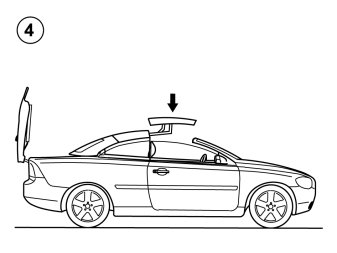

Picture 4. Closing of hardtop
The following takes place in this stage of sunroof operation:
The hardtop's rear and middle part come into place. The hardtop's front part stands straight up.
During the roof operation procedure that has not started, the following applies:
The hardtop's front part comes into place. The hardtop's middle part is locked with the hardtop's rear and front part.
Activate read-out of the hall sensors' and position sensors' values in the folded hardtop by clicking on the symbol for VCT2000.
Compare the read-out values with the normal value that also is shown. If any value does not match, click on the button that has the same number as the hall sensor or position sensor has, which shows an incorrect value. If all hall sensors or position sensors show right, click on OK to finish troubleshooting.

1 - Checking Hall sensor 1

3 - Checking Hall sensor 3

5 - Checking Hall sensor 5

6 - Checking Hall sensor 6

7 - Checking Hall sensor 7

9 - Checking Hall sensor 9

10 - Checking Hall sensor 10

11 - Checking Hall sensor 11

12 - Checking Hall sensor 12

13 - Checking Hall sensor 13

15 - Checking Hall sensor 15

16 - Checking Hall sensor 16

18 - Checking Hall sensor 18

19 - Checking Hall sensor 19

2 - Checking position sensor 2, rear hardtop part

17 - Checking position sensor 17, front hardtop part

OK - Resetting of convertible hardtop

-------------------------------------------------

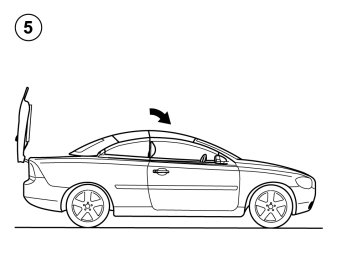

Picture 5. Closing of hardtop
The following takes place in this stage of sunroof operation:
The hardtop's front part comes into place. The hardtop's middle part is locked with the hardtop's rear and front part.
During the roof operation procedure that has not started, the following applies:
The tonneau cover is retracted.
Activate read-out of the hall sensors' and position sensors' values in the folded hardtop by clicking on the symbol for VCT2000.
Compare the read-out values with the normal value that also is shown. If any value does not match, click on the button that has the same number as the hall sensor or position sensor has, which shows an incorrect value. If all hall sensors or position sensors show right, click on OK to finish troubleshooting.

1 - Checking Hall sensor 1

3 - Checking Hall sensor 3

5 - Checking Hall sensor 5

6 - Checking Hall sensor 6

7 - Checking Hall sensor 7

9 - Checking Hall sensor 9

10 - Checking Hall sensor 10

11 - Checking Hall sensor 11

12 - Checking Hall sensor 12

13 - Checking Hall sensor 13

15 - Checking Hall sensor 15

16 - Checking Hall sensor 16

18 - Checking Hall sensor 18

19 - Checking Hall sensor 19

2 - Checking position sensor 2, rear hardtop part

17 - Checking position sensor 17, front hardtop part

OK - Resetting of convertible hardtop

-------------------------------------------------

Picture 6. Closing of hardtop
The following takes place in this stage of sunroof operation:
The tonneau cover is retracted.
During the roof operation procedure that has not started, the following applies:
The trunk lid is lowered. The hardtop is locked front and rear.
Activate read-out of the hall sensors' and position sensors' values in the folded hardtop by clicking on the symbol for VCT2000.
Compare the read-out values with the normal value that also is shown. If any value does not match, click on the button that has the same number as the hall sensor or position sensor has, which shows an incorrect value. If all hall sensors or position sensors show right, click on OK to finish troubleshooting.

1 - Checking Hall sensor 1

3 - Checking Hall sensor 3

5 - Checking Hall sensor 5

6 - Checking Hall sensor 6

7 - Checking Hall sensor 7

9 - Checking Hall sensor 9

10 - Checking Hall sensor 10

11 - Checking Hall sensor 11

12 - Checking Hall sensor 12

13 - Checking Hall sensor 13

15 - Checking Hall sensor 15

16 - Checking Hall sensor 16

18 - Checking Hall sensor 18

19 - Checking Hall sensor 19

2 - Checking position sensor 2, rear hardtop part

17 - Checking position sensor 17, front hardtop part

OK - Resetting of convertible hardtop

-------------------------------------------------

Trunk lid locked.
Activate read-out of the hall sensors' and position sensors' values in the folded hardtop by clicking on the symbol for VCT2000.
Compare the read-out values with the normal value that also is shown. If any value does not match, click on the button that has the same number as the hall sensor or position sensor has, which shows an incorrect value. If all hall sensors or position sensors show right, click on OK to finish troubleshooting.

1 - Checking Hall sensor 1

3 - Checking Hall sensor 3

5 - Checking Hall sensor 5

6 - Checking Hall sensor 6

7 - Checking Hall sensor 7

9 - Checking Hall sensor 9

10 - Checking Hall sensor 10

11 - Checking Hall sensor 11

12 - Checking Hall sensor 12

13 - Checking Hall sensor 13

15 - Checking Hall sensor 15

16 - Checking Hall sensor 16

18 - Checking Hall sensor 18

19 - Checking Hall sensor 19

2 - Checking position sensor 2, rear hardtop part

17 - Checking position sensor 17, front hardtop part

OK - Resetting of convertible hardtop

-------------------------------------------------

The trunk lid is not locked.
Activate read-out of the hall sensors' and position sensors' values in the folded hardtop by clicking on the symbol for VCT2000.
Compare the read-out values with the normal value that also is shown. If any value does not match, click on the button that has the same number as the hall sensor or position sensor has, which shows an incorrect value. If all hall sensors or position sensors show right, click on OK to finish troubleshooting.

1 - Checking Hall sensor 1

3 - Checking Hall sensor 3

5 - Checking Hall sensor 5

6 - Checking Hall sensor 6

7 - Checking Hall sensor 7

9 - Checking Hall sensor 9

10 - Checking Hall sensor 10

11 - Checking Hall sensor 11

12 - Checking Hall sensor 12

13 - Checking Hall sensor 13

15 - Checking Hall sensor 15

16 - Checking Hall sensor 16

18 - Checking Hall sensor 18

19 - Checking Hall sensor 19

2 - Checking position sensor 2, rear hardtop part

17 - Checking position sensor 17, front hardtop part

OK - Resetting of convertible hardtop

-------------------------------------------------

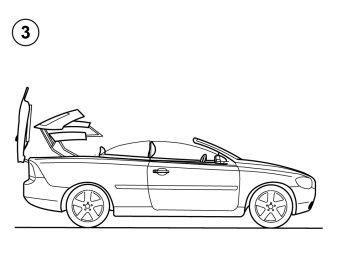

Picture 3. Closing of hardtop
The following takes place in this stage of sunroof operation:
The hardtop is lifted out of the luggage compartment.
During the roof operation procedure that has not started, the following applies:
The hardtop's rear and middle part come into place. The hardtop's front part stands straight up.
Activate read-out of the hall sensors' and position sensors' values in the folded hardtop by clicking on the symbol for VCT2000.
Compare the read-out values with the normal value that also is shown. If any value does not match, click on the button that has the same number as the hall sensor or position sensor has, which shows an incorrect value. If all hall sensors or position sensors show right, click on OK to finish troubleshooting.

Was the trunk lid locked at the leading edge?

Yes - Trunk lid locked.

No - The trunk lid is not locked.

-------------------------------------------------

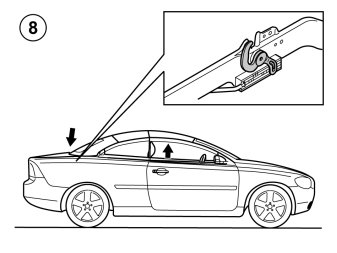

Picture 8. Closing of hardtop
The following takes place in this stage of sunroof operation:
The trunk lid is locked at the leading edge. Windows are raised.
Feel with your hand if the trunk lid is locked at the leading edge near the rear window. If it is not locked it can be lifted a few centimeters by hand.

Was the trunk lid locked at the leading edge?

Yes - Trunk lid locked.

No - The trunk lid is not locked.

-------------------------------------------------

Picture 1. Starting loading assistance function
The following takes place in this stage of sunroof operation:
The lock catches that lock the lowered hardtop in the luggage compartment release. The folded hardtop is lifted up out of the luggage compartment to facilitate loading.

Have the lock catches that lock the lowered hardtop in the luggage compartment released?

Yes - Lock catches have released

No - Lock catches have not released

-------------------------------------------------

Picture 1. Finishing loading assistance function
The following takes place in this stage of sunroof operation:
The folded hardtop is lowered down in the luggage compartment.
Activate read-out of the hall sensors' and position sensors' values in the folded hardtop by clicking on the symbol for VCT2000.
Compare the read-out values with the normal value that also is shown. If any value does not match, click on the button that has the same number as the hall sensor or position sensor has, which shows an incorrect value. If all hall sensors or position sensors show right, click on OK to finish troubleshooting.
