Header Rail Weatherstrip

Operation number: 83842-2

Header Rail Weatherstrip

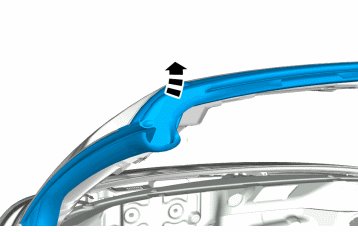

Removal

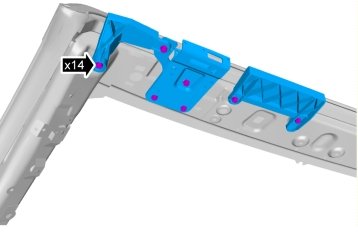

Remove Header rail Trim Panel Refer to: Header rail Trim Panel Header Rail Trim Panel




On both sides.

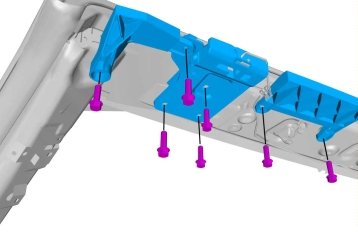

Torque: M6, 10 Nm

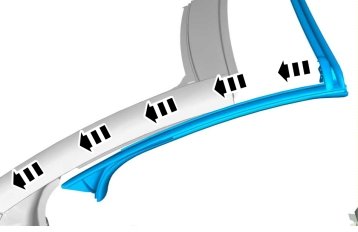

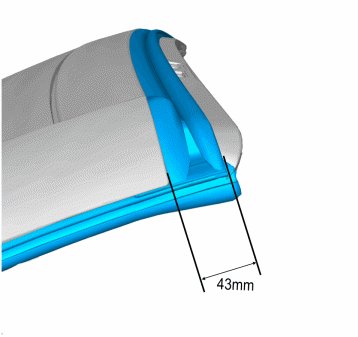

Installation

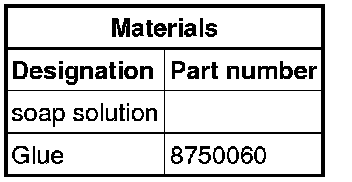

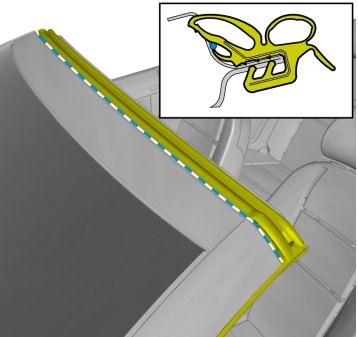

Use: soap solution,












On both sides.

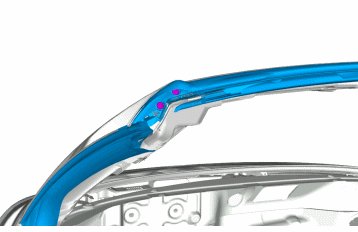

Torque: M6, 10 Nm

Install Header rail Trim Panel Refer to: Header rail Trim Panel Header Rail Trim Panel





Use: Glue, 8750060
