Door Lock Cylinder: Service and Repair

Lock cylinder, door

Note! The illustrations in this service information are used for different model years and/or models. Some variation may occur. However, the essential information in the illustrations is always correct.

Note! Only the driver's door has a lock cylinder.

Removal

Removing the lock cylinder

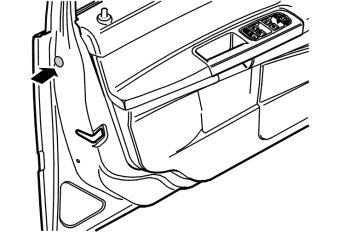

Remove the cover in the end of the door.




Slacken off the 1 screw for the lock cylinder.

Note! Only slacken off the screw 4 turns. Otherwise the screw may fall down into the door.

Pull the lock cylinder straight out.

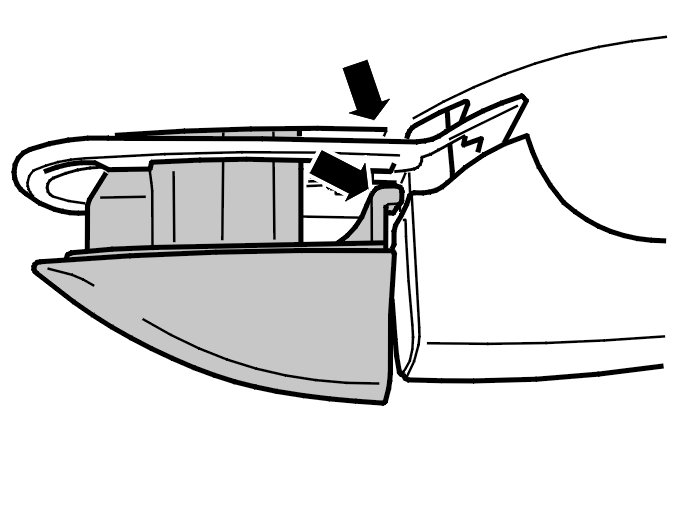

Remove the cover over the lock cylinder.

Hint: Use a weatherstrip tool.

Installation

Installing the lock cylinder





Install:
- the lock cylinder
- the cover
- the screw for the lock cylinder. Tighten. See: Tightening torque, B5254T7 [1][2]Body and Frame
- the cover in the end of the door.
Check the function of the handle.
Check the function of the lock.
