Part 4

Applies to cars with loudspeaker grilles

Assembling the holder

Note! Take care when handling the components, they are fragile and are easily damaged.




- Take the three screws M5x20 part no. 986956 and nuts from the kit.
- To prevent too great resistance when the nut for the holder is tightened, hold the screw and screw the nut on and off the threaded part of the screw. Carry this out on all screws and nuts.





- Take special tool 9814104 (torx driver, torx 6), and unscrew the two screws holding the connector in the holder.
- Carefully push the connector to one side with the cable to expose the bottom of the holder.





- Take the kit with the four spacers from the installation kit.
- Carefully pry off the spacer using P/N 31212525. The part number (1) is on the bottom of the spacer.





- Take the three screws and insert them in the spacer fully.





- Apply pieces of butyl tape to the screws so that the screw heads do not protrude outside the spacer when installing it.





- Install the spacer in the bottom of the holder. Ensure that the holder's two screw turrets align between the small pins in the oblong holes in the spacer.




- A click should be heard when the spacer is securely in position.






Place the connector in the bottom of the holder so that:
- the guide hole (1) in the connector's circuit board aligns in the corresponding pin at the bottom of the holder
- the holes (2) in the circuit board are over the holder's screw turret.





- Take the small torx screws and carefully tighten the connector to the holder. Ensure that the connector's circuit board is properly against the screw turret and that there is no play.
- Remove the butyl tape from the screws.

Preparations




- Turn the ignition switch to position 0.
- Disconnect the battery negative lead.

Note! Wait at least three minutes before unplugging the connectors or removing other electrical equipment.





- Remove the ventilation outlet by carefully inserting special tool 9995919 between the ribs and carefully pulling up the four catches on the lower edge. Carefully pry using a weatherstrip tool.

Note! Pay particular care to the dashboard and the outlet ribs. These can easily be damaged. The outlet is mounted very firmly.





- Unplug the connector for the warning flashers and move the unit aside.





- Open the glovebox.
- Carefully pry off the panel inside the centre console. Use a plastic weatherstrip tool. The panel is secured by two clips on each of the short sides.
- Pull the panel away downwards.





- Remove the rubber mat and storage compartment.





Loosen the rim around the display and the media player as follows:
- Press in the lock catch on the edge of the media player's tray with a small screwdriver. Carefully pry out one corner using a plastic weatherstrip tool.

Note! Do not damage the panel and dashboard.

- Repeat the operation on the other side.

Hint: If the other side does not detach, press the detached side into position again and repeat the procedure, beginning from the other side.

- Fold the surround backwards. Remove by pulling upwards.





- Press out the display module (1) from the reverse of the centre console. Use both hands and press straight back.
- Disconnect the two connectors. Put the display to one side.





- Carefully bend loose and remove the hand brake lever's panel.





- Remove the bottom cover.






Applies to cars with manual gearbox
- Remove the gear selector lever boot from the center console. First pry it off at the front edge using a weatherstrip tool and then unhook it at the rear edge.

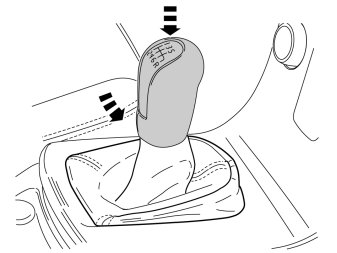

- Loosen the gearshift knob from the shift by pressing down the knob and turning it slight more than a 1/4 turn anticlockwise and pull it up.






Applies to all models
- Remove the two screws.





- Remove the rear seat cushion by first pressing the outer edges of the cushion backwards and then by pulling them upwards so that the outer hooks release.





- Lift the cushion straight up in the middle so that the inner hooks release.





- Remove the rear cup holder from the rear tunnel compartment by prying at the leading edge and pressing in the catches, first at the leading edge and then on the sides.





- Remove the screws.





- Remove the rear tunnel compartment by pulling it upward (1) rearward (2) so that it releases from its catches.





- Unplug the connector at the trailing edge of the tunnel console.





- Remove the two screws along the front edge of the tunnel console.


Illustration A





Illustration B




- Carefully pull up the lock catch with special tool 9995919. At the same time, slide the whole tunnel console backward so that the two rear screws in the centre console's panel can be accessed.

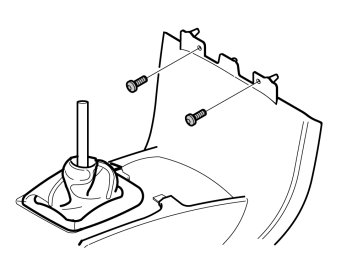

- Remove the two screws.





- Remove the two screws holding the centre console's panel to the dashboard.
- Remove the connector at the rear of the climate panel and put the panel to one side.





- Remove the template from the kit. Cut out around the outer lines.





- Tape the template to the loudspeaker grille.
