Part 3

Navigation system, portable, Installation kit TMC

INTRODUCTION
- Read through all of the instructions before starting installation.
- Notifications and warning texts are for your safety and to minimize the risk of something breaking during installation.
- Ensure that all tools stated in the instructions are available before starting installation.
- Certain steps in the instructions are only presented in the form of images. Explanatory text is also given for more complicated steps.
- In the event of any problems with the instructions or the accessory, contact your local Volvo dealer.

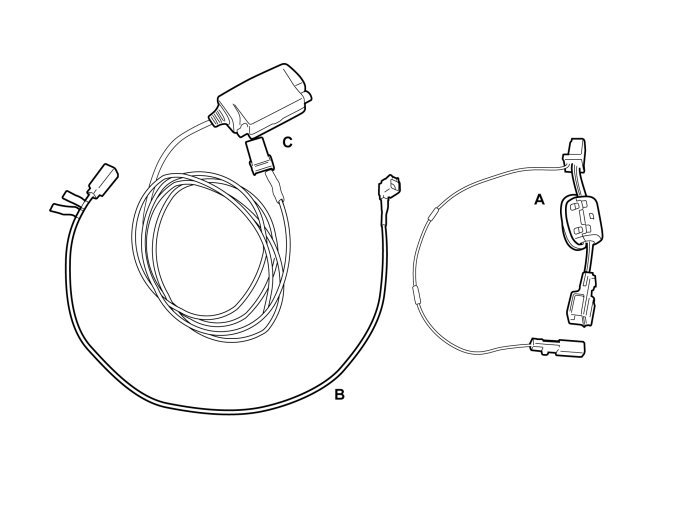

Navigation system, portable, Installation kit TMC

A and B

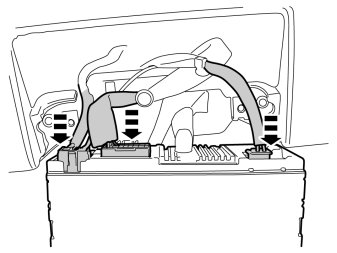

- Connect the disconnected connectors to the media player.

Note! Space is confined at the media player and there are many cables so take care to ensure that it is positioned so that no cables are trapped or are at risk of being chafed.

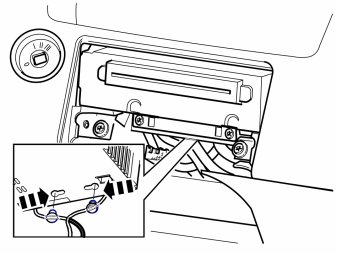

- Install the media player and tighten using the two screws.

A and B

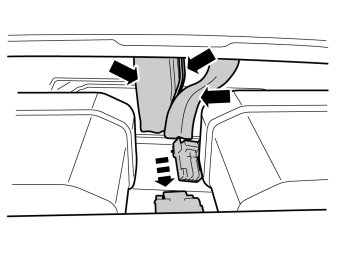

- Now position the cable harnesses from the GPS cradle and the hazard warning flasher in-between the two air ducts, when pushed into position.
- Secure the two small green connectors from the thin cable harness from the GPS cradle using a piece of butyl tape in a suitable position to prevent rattling.
- Connect the connector to the hazard warning flasher. Check between the ribs in the outlets so that the cables do not obstruct the air ducts.
- Carefully press the outlets into place.
