Part 2

Navigation system, portable, Installation kit TMC























INTRODUCTION
- Read through all of the instructions before starting installation.
- Notifications and warning texts are for your safety and to minimize the risk of something breaking during installation.
- Ensure that all tools stated in the instructions are available before starting installation.
- Certain steps in the instructions are only presented in the form of images. Explanatory text is also given for more complicated steps.
- In the event of any problems with the instructions or the accessory, contact your local Volvo dealer.






Navigation system, portable, Installation kit TMC

Applies to cars with and without speaker grilles




- Press in the catch and disconnect the connector on the underneath of the GPS cradle.





- Disconnect the two green connectors on the cable for the cradle from each other. Follow the disconnected cable from the cradle, the connectors are inside the dashboard.
- Place the short cable to one side. A new cable is in the kit.





- Take cable harness A and TMC unit C from the kit and connect the larger green connectors to each other.





- Take the foam tape from the kit and remove the protective tape from it.





- Wrap the foam tape around the ferrite and the green connectors to prevent any rattling.


A




- Now take the gray connector on the joined cable harnesses and connect underneath the GPS cradle.

B




- Connect the two remaining small green connectors to each other.


A




- Carefully pry up and remove the catch in the receptacle housing on the cable terminal for the socket marked 1 in the contact to the media player. Use a thin pointed object.

B




- Carefully pry up the two small catches at the rear edge of the receptacle housing and carefully pull out the cable terminal.





- Separate the two cables in the antenna cable harness for the media player from each other approximately 100 mm (4").





- Take the antenna cable B from the kit. Carefully pry up the catch and pull out the cable terminal from the receptacle housing.





- Take the newly removed receptacle housing and carefully push it into the loose cable terminal on the contact in the cable for the media player.





- Take the loose cable terminal in the antenna cable B and carefully secure the receptacle housing to the cables for the media player.





- Press the catch securely into the receptacle housing.

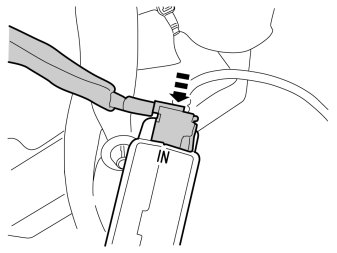

- Connect the previously disconnected cable terminal on the cable from the media player's receptacle housing to IN on TMC unit C.





- Connect the remaining end to antenna cable B to OUT on TMC unit C.





- Take the foam tape from the kit and remove the protective tape from it.





- Wrap foam tape around the TMC unit.





- Clamp the cable excess around the TMC unit using a cable tie from the kit. Ensure that there is enough excess to connect the antenna cable to the media player and the cable to the GPS cradle.





- Place the cable excess and TMC unit C in the space under the location for the media player.
