Part 2

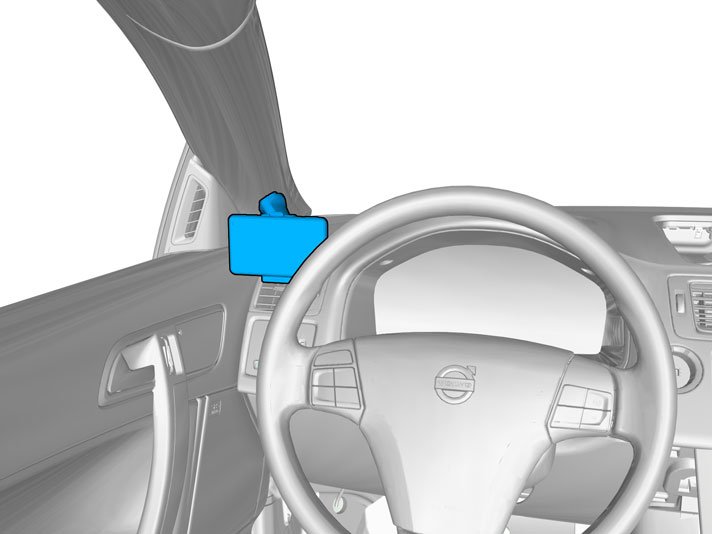

Navigation system, portable

Equipment














































Kit contents









Cars with manual transmissions





All vehicles

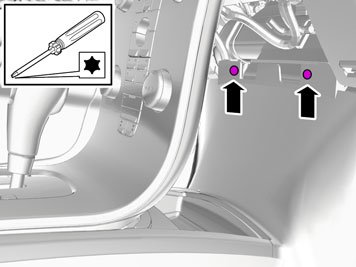

Remove the screws.

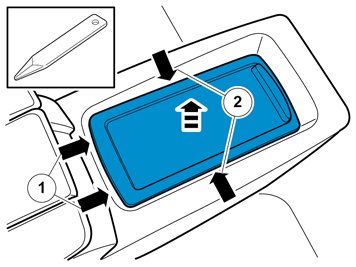

Release the lock.

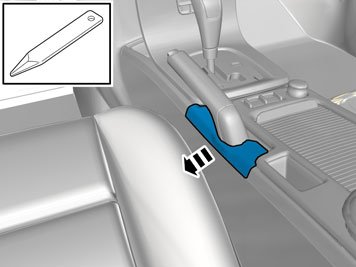

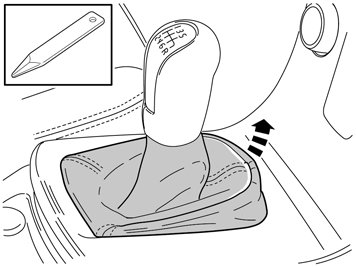

Release the catches

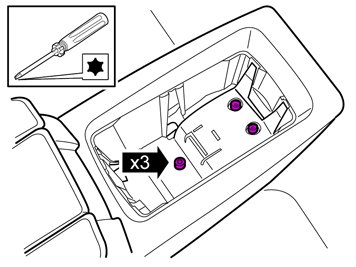

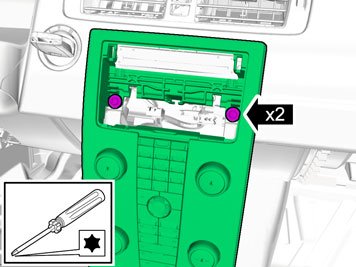

Remove the screws.

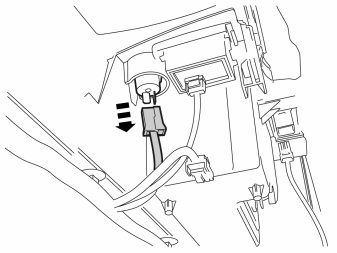

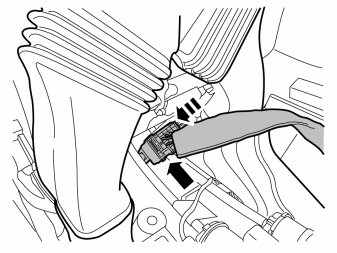

Disconnect the connector.

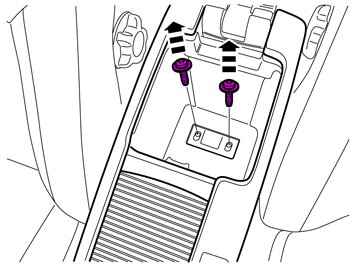

Remove the screws.




999 5919 PULLER 999 5919 Puller
Release the lock.








Remove the screws.




Remove the screws.




Disconnect the connector.

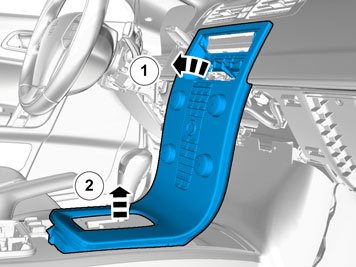

Remove the panel.

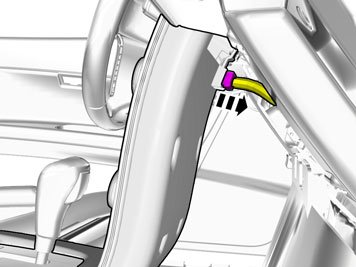

Disconnect the connector.





Caution! Be extra careful when removing or installing this component.




Disconnect the connector.

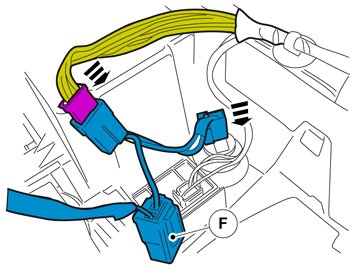

Connect the connectors.




Install the part with butyl tape.





Caution! Be extra careful when removing or installing this component.




Connect the connector.

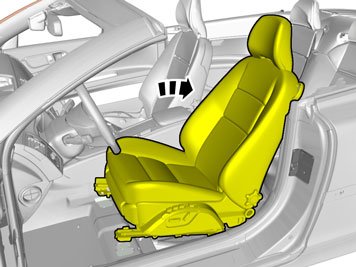

Remove the panel.

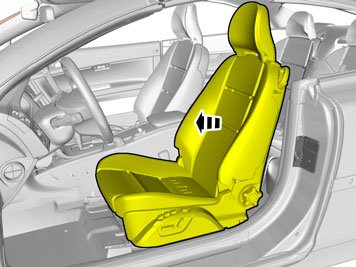

Remove the screws.
Torque: Front seat to body, 40 Nm








Remove the panel.




Remove the screws.
Torque: Front seat to body, 40 Nm












Fold the carpet to the side.

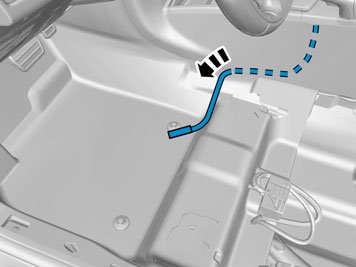

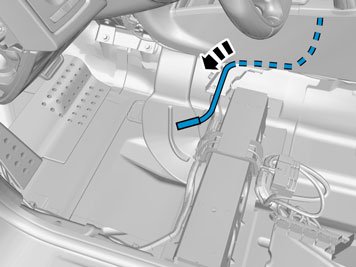

Route the cable harness to the existing cable harness.








Place any excess inside the floor carpet.




Fold the floor carpet back.

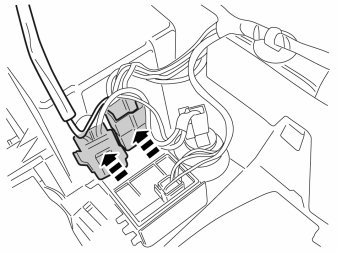

Connect the connectors.




Tear off the excess foam tape.




Reinstall the removed parts in reverse order.
