Part 1
Navigation system, portable
Equipment
Kit contents
Operation number: 39730
Information
- Read through all of the instructions before starting installation.
- Notifications and warning texts are for your safety and to minimize the risk of something breaking during installation.
- Ensure that all tools stated in the instructions are available before starting installation.
- Certain steps in the instructions are only presented in the form of images. Explanatory text is also given for more complicated steps.
- In the event of any problems with the instructions or the accessory, contact your local Volvo dealer.
Conditions
Where the procedure differs, the right-hand version is also shown with text and image.
Set the ignition key to position 0.
Removal

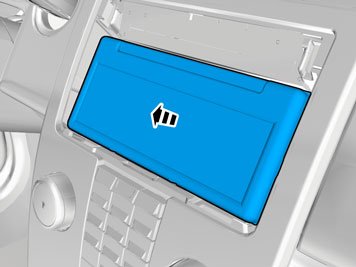

Remove the panel.

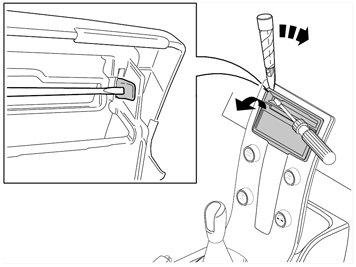

Remove the clip.
Remove the panel.
Remove the screw.
Remove the screws.

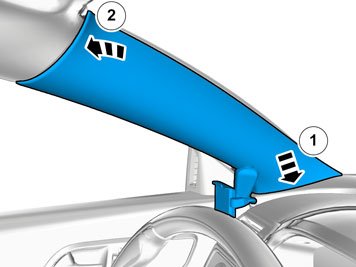

Remove the panel.

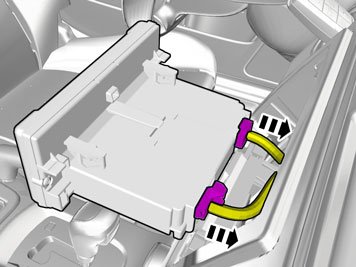

Disconnect the connectors.
Remove the panel.

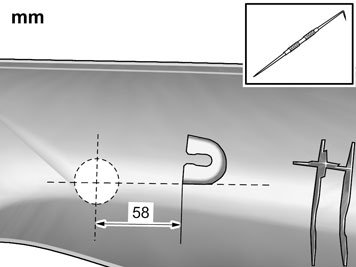

Measure and mark as illustrated.
Center the holes against each other.
Note! Ensure that the part is correctly positioned against the panel's surface.

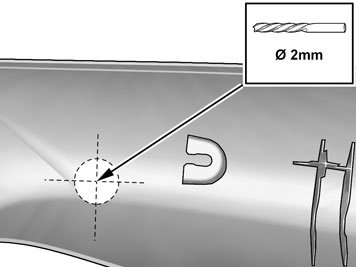

Drill the holes.
Install the screws.
Remove the screws.

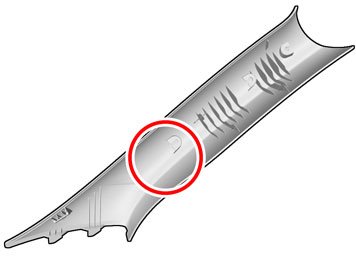

Adjust the cable length so that the marking ends up as displayed in the image.
Right-hand drive vehicles
Adjust the cable length so that the marking ends up as displayed in the image.
All vehicles
Install the screws.

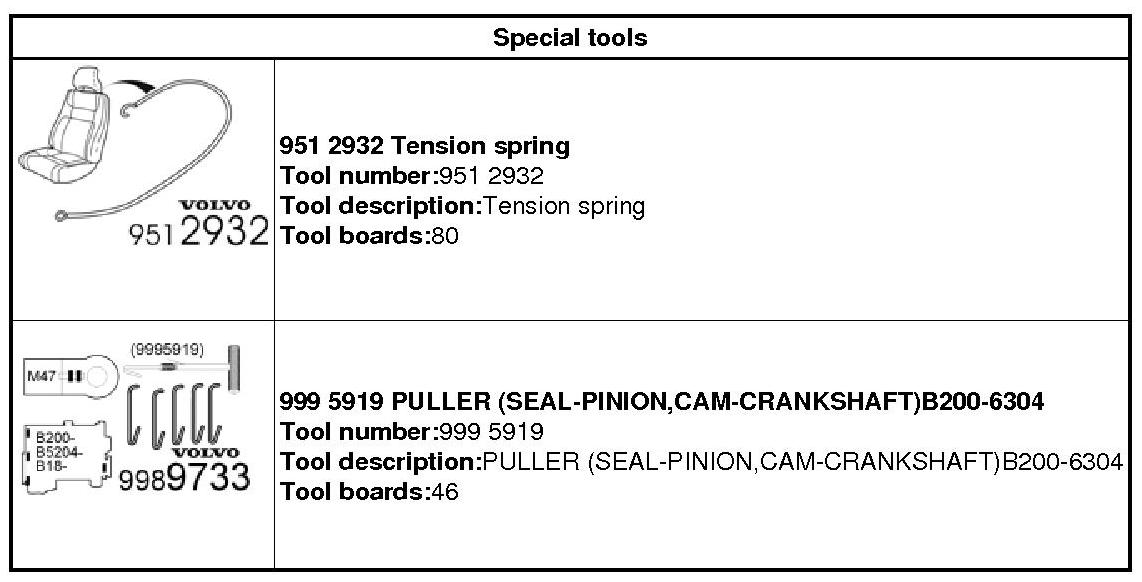

951 2932 Tension spring 951 2932 Tension Spring
Pull the wiring through.
Install the panel.
Caution! Be extra careful when removing or installing this component.
Note! One side at a time.
Disconnect the connectors.
