Parking assistance, front, chassis number 97000-

INTRODUCTION
- Read through all of the instructions before starting installation.
- Notifications and warning texts are for your safety and to minimize the risk of something breaking during installation.
- Ensure that all tools stated in the instructions are available before starting installation.
- Certain steps in the instructions are only presented in the form of images. Explanatory text is also given for more complicated steps.
- In the event of any problems with the instructions or the accessory, contact your local Volvo dealer.

Parking assistance, front, chassis number 97000-

- Clean the sensors. Use: Isopropanol.
- Allow to dry.

- Carefully mat down the surface. Use Glasspaper, grade P1000.

- Clean the sensors again. Use: Isopropanol.
- Allow to dry.
- Avoid contact with the cleaned surfaces.

Caution! Protect the connections' contact surfaces against paint.

- Paint the sensors in the same colour code as the vehicle.
- Use Volvo Touch-up paint (Only use base coat.)
- Use Volvo 2-K Varnish. P/N: 31335447.

Note! Also read the instructions on the spray can.

Caution! Ensure that the paint has dried after painting.

- Raise the car.

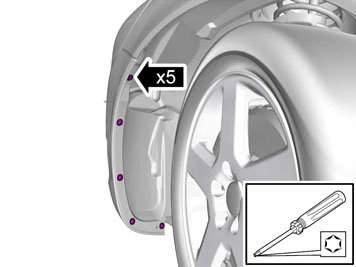

- Remove the screws and the engine splash guard.

Applies to cars with headlamp washing

- Pull out the cover so that the nozzle is visible.

Applies to cars with headlamp washing

Caution! do not damage painted surfaces and high pressure washer nozzles.

- repeat the method steps on the other side.

Applies to all models

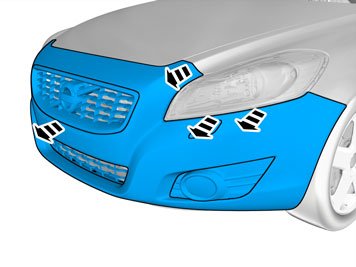

- Carry out on both sides.

Hint: Removal of the bumper is facilitated if carried out by 2 people.

Applies to cars with fog lamps

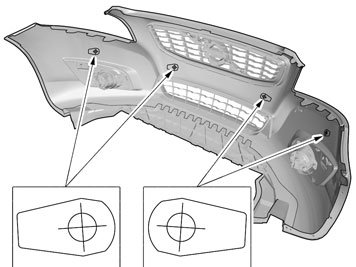

- Locate the 4 markings on the inside of the bumper cover.

- Mark the center with a scribe.

1. - 3 mm /7/64 ")
2. - 10 mm (25/64 ")

- Use special tool: 9997234

Note! The hole tool's support sleeve must be on the inside, and the cutting part on the outside of the bumper casing.

- Use: Isopropanol
- Allow to dry.

- Use: 8637076 - Activator
- Apply a thin and even layer.

Caution! Allow to dry for at least 10 minutes.

- Use: Isopropanol
- Allow to dry.

- Use: 8637076 Activator.
- Apply a thin layer.

Caution! Allow to dry for at least 10 minutes.

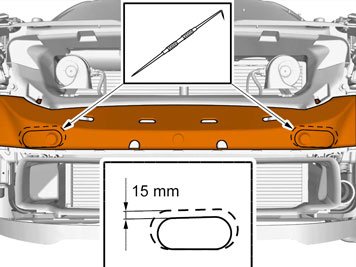

- Extend the existing markings by 15 mm at the top of the sides.

Note! There are two types of member (energy absorbing).

Plastic member:
- Saw along the 2 markings, only through the outer part.

Foam member (EPS):
- Remove the foam member from the collision member.
- Saw along the 2 markings.
- Reinstall the foam member.

- Remove the panel.

- Remove the 2 clips and the soundproofing panel.

- Remove the sill trim panel at the right-hand front door. First pull off the front edge of the sill trim panel so that the clip releases. Then continue backward until the remaining clips on the underside have released.

- Pull the backrest straight out at the top edge so that the catches release, and then straight up.

- Remove the rear seat cushion by first pressing the outer edges of the cushion backwards and then by pulling them upwards so that the outer hooks release.

- Lift the cushion straight up in the middle so that the inner hooks release.

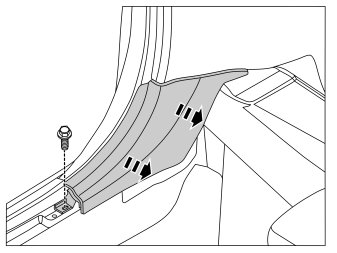

- Remove the screw.
- Pull the panel straight out to the side.
