Part 4

Handsfree, Bluetooth































INTRODUCTION
- Read through all of the instructions before starting installation.
- Notifications and warning texts are for your safety and to minimize the risk of something breaking during installation.
- Ensure that all tools stated in the instructions are available before starting installation.
- Certain steps in the instructions are only presented in the form of images. Explanatory text is also given for more complicated steps.
- In the event of any problems with the instructions or the accessory, contact your local Volvo dealer.






Handsfree, Bluetooth

For cars with emergency release handle in cargo compartment
- Remove the emergency opening handle by pressing out the pin at the eye and unhook the wire.





- Remove the two screws in the sill molding.





- Pull the sill molding up until the clips release. Remove the large connector and remove the sill molding.





- Remove the cargo compartment carpeting.






Steps 75-82 apply to both right and left-hand drive cars. On right-hand drive cars, the procedure only needs to be carried out on the left-hand side in the cargo compartment.
- Remove the rubber stop on the roof's stop bracket on both the right and left-hand sides.





- Mark out the stop bracket for the roof in relation to the screw.
- Remove the screw and the roof's stop bracket.
- Carry out on both the left and right-hand sides.





- Remove the lock for the load divider by prying between the carpet and lock using a weatherstrip tool. Carry this out on both the right and left-hand sides. Remove the connector on the left-hand lock.





- Remove the screws and the cargo lashing eyes on both the right and left-hand sides.





- Remove the cover for the stop bracket on both the left and right-hand sides.





- Mark out the stop brackets for the roof in relation to the screw and the nut.
- Remove the screw, nut and the roof's stop braces.
- Carry out on both the left and right-hand sides.





- Detach the four clips on the side panels on both the right and left-hand sides.





- Remove the side panels on both the left and right-hand sides, by unhooking them from the stop lugs at the front edge and then pulling them outwards and upwards so that they release from the weatherstrip.





- Remove the screw and the rear sill trim panel.

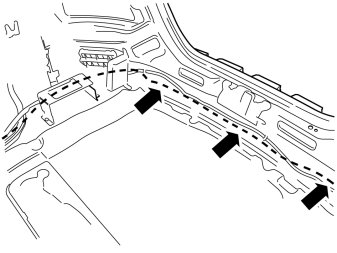

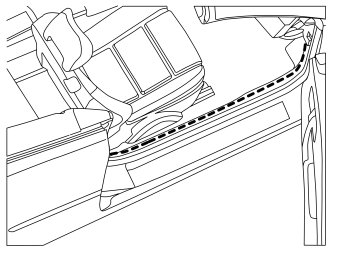

- Route the cable B between the floor carpet and the sill. Position the cable so that it is not trapped or damaged.





- Route the cable along the existing cable harness backwards and into the cargo compartment.





- Route the cables along the existing cable harnesses in the cargo compartment.






Applies to left-hand drive cars

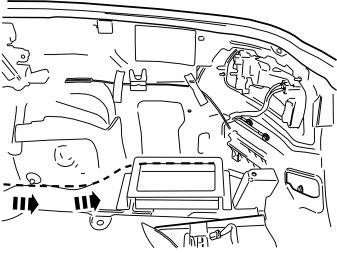

- Route the cable harness along the existing cable harnesses in the cargo compartment, away to the amplifier.
- Secure with three small cable ties.






Applies to cars with subwoofer amplifier
- Remove the subwoofer amplifier by removing the screws and unplugging the connectors.





- Detach the cable harness from the weld screw.

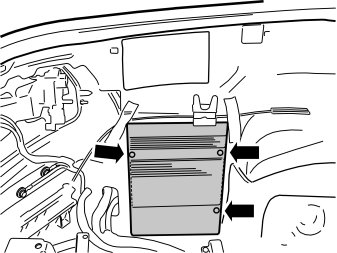

- Remove the screw and the two nuts.

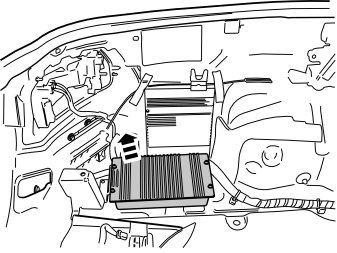

- Lift the amplifier forward.

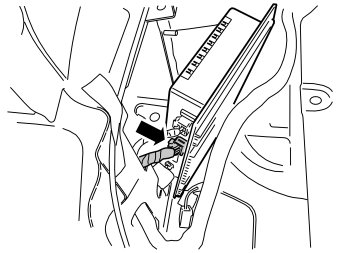

- Remove the green connector.





- Remove cable harness C from the kit.
- Route the white connector for the cable harness through the hole from the compartment behind the amplifier and out to the cargo compartment.

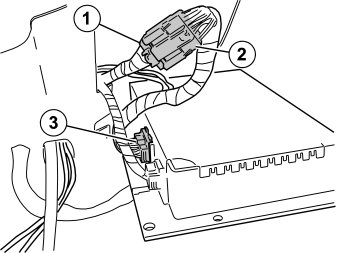

- Connect cable harness C to the amplifier as follows:
- Connector (1) that was disconnected from the amplifier is connected to the female connector (2) on the adapter cable.
- Connector (3) is connected to the amplifier.
- Tape one piece of the cut thin foam tape around the connectors (1) and (2).

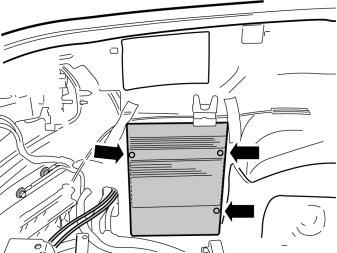

- Reinstall the amplifier with nuts and screws, tightening torque 10 Nm (7 lbf.ft).
- Reinstall the cable harness on the weld screw.
- Reinstall any amplifiers for subwoofers.





- Take the relay from the kit.
- Connect the connect from cable harness C and the newly routed cable harness connector to the relay.
- Tape two thick pieces of foam tape around the relay.

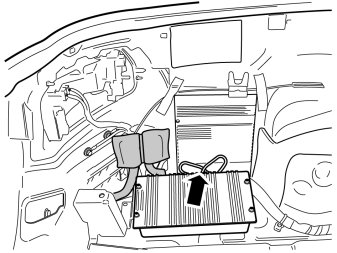

- Place the relay on the existing cable harness and secure it using a large tie-strap. Place any cable excess in front of the amplifier.

Finishing work

Applies to all models




- Reinstall the connectors to the rear section of the glove box. Note the color marking on the cable for the right-hand connector.





Passenger compartment

Reinstall:
- the lower vent.
- the sound proofing.
- the rear section of the glovebox by guiding it in diagonally inside the center console and then straight forward. The rear section must be positioned on the outside of the remaining inner section. Remove the tape.
- the clip for the vent on the glovebox.
- the panel on the dashboard end face.
- the panel inside the center console.
- the sill trim panels.
- the sealing strip.
- seat cushions.
Cargo compartment

Reinstall:
- the side panels (check that the sealing strip is on the outside of the panel).
- stops and attaching braces.
- the cargo compartment carpeting.
- the sill panel with lighting.
- any emergency release.
- the cover for the cargo compartment stop.
- load securing eyelets, tightening torque 24 Nm (18 lbf.ft.).
- the toolbox.
- the spare wheel, if in place.
- divider, remove the cable ties, tightening torque 10 Nm (7.3 lbf.ft).






Carry out a function test as follows:
- Set the ignition key to position I.
- Turn on the radio.

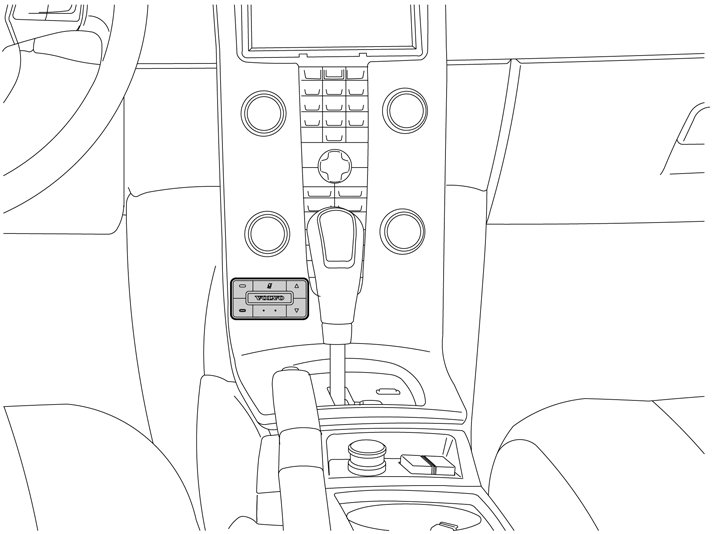

- Check that the control panel for Bluetooth lights up.
- Press the button (1) in the middle of the control panel. The radio should mute and a voice should be heard.
- Press the button (2). The voice should stop and the radio sound should return.
