Windshield Washer Reservoir: Service and Repair

Operation number: 36338-2

Washer fluid reservoir

Removal

Note! Removal steps in this procedure may contain installation details.





See information on component position washer reservoir Refer to: Location of components, washer reservoir, B5254T7 Locations

Remove casing bumper front Refer to: Cover bumper front, B5254T7 Service and Repair

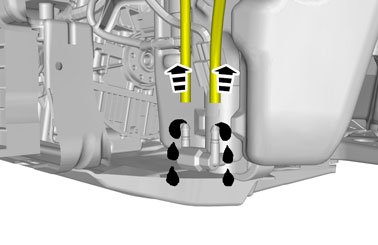

Warning! Be prepared to collect escaping fluid.

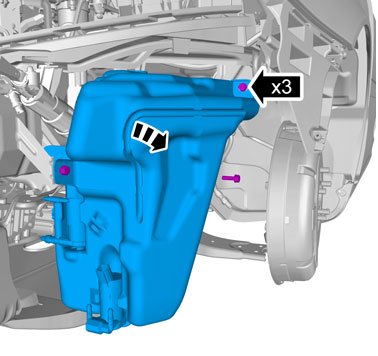

Torque: M6, 10 Nm

Installation

To install, reverse the removal procedure.
