Washer system, general

Note! As the illustrations in this service information are used for different model years and / or models, some variation may occur. However, the essential information in the illustrations is always correct.





Note! The illustration above shows the basic appearance of the Washer system, 4 cylinder engines and the Washer system, 5 cylinder engines.

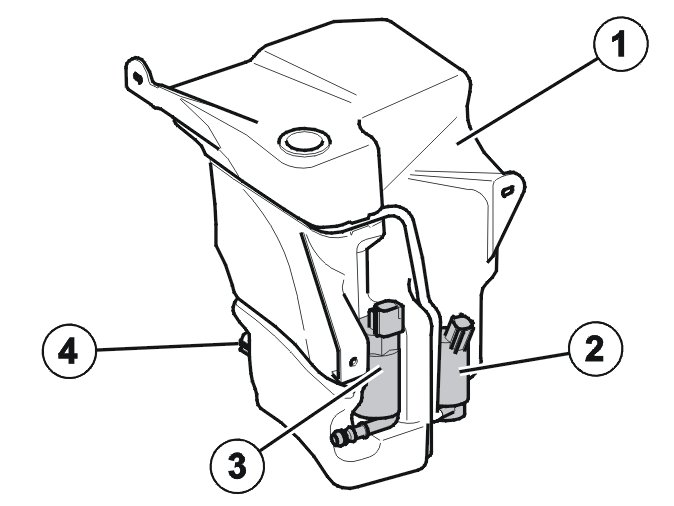

1. Washer can, or two washer cans
2. Dual pump or Monopump
3. High pressure pump
4. Level sensor.
The washer system consists of:
- Washer can (1) (one or two depending on washer system)
- Dual pump (2) for windshield washing and rear window washing (3 and 5-door models); Monopump for windshield washing (2 and 4-door models)
- High pressure pump (3) (vehicles with headlamp washing)
- Level sensor (4)
- Hoses and nozzles for headlamps, windshield and rear windshield.
There are two different washer systems, depending on the engine variant. The washer cans have a different design and volume:
- 4 cylinder engines have two washer cans holding a total of 4.1 liters
- 5 cylinder engines have one washer can holding a total of 6.3 liters.
For further information concerning the washer systems, see Washer system, 4 cylinder engines or Washer system, 5 cylinder engines.
The pumps and the level sensor are located on the lower section of the washer can.
The pumps are mounted in the washer can using rubber bushings. The filters are integrated in these rubber bushings.

Washer system, 4 cylinder engines

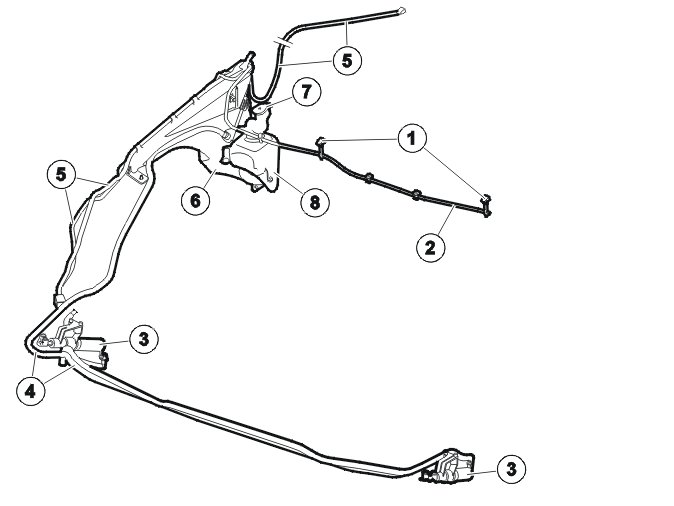

1. Washer nozzle windshield washing with check valve
2. Hose windshield washing
3. Headlamp wash / wipe with nozzle
4. Hoses headlamp washing
5. Hoses rear windshield washing and nozzle
6. Washer can
7. Filling tube with cover
8. Washer can
The washer system comes in two versions - one for 3 and 5-door models and one for 2 and 4-door models.
Both variants can be ordered with or without headlamp wash / wipe. Vehicles with headlamp wash / wipe have a high pressure pump located on the outside of the washer can (6).
Because 3 and 5-door models have rear window washing, they have a dual pump located on the washer reservoir instead of the standard monopump.

Washer system, 5 cylinder engines

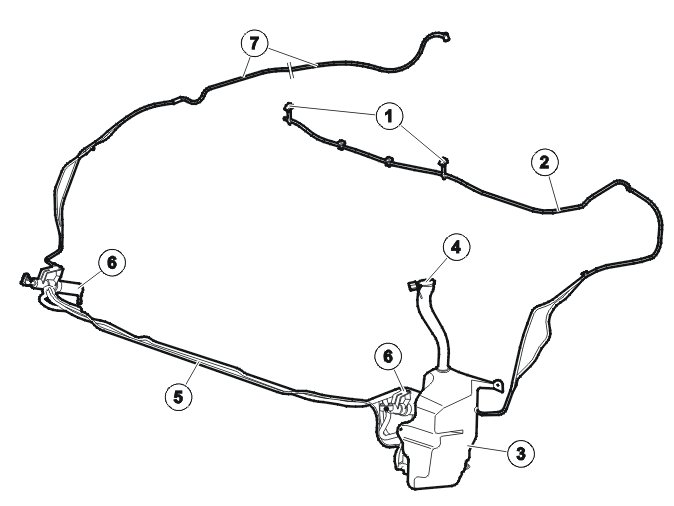

1. Washer nozzle windshield washing with check valve
2. Hoses windshield washing
3. Washer can
4. Filling tube with cover
5. Hoses headlamp washing
6. Headlamp wash / wipe with nozzle
7. Hoses rear windshield washing and nozzle
The washer system comes in two versions - one for 3 and 5-door models and one for 2 and 4-door models.
Both variants can be ordered with or without headlamp wash / wipe. Vehicles with headlamp wash / wipe have a high pressure pump located on the outside of the washer can (3).
Because 3 and 5-door models have rear window washing, they have a dual pump located on the washer reservoir instead of the standard monopump.
