Wiper and Washer Systems: Adjustments
Operation number: 36352-2
Wiper blade and wiper arm adjustment
Adjustment

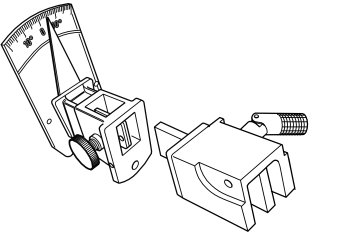

951 2931 Protractor 951 2931 Protractor 999 7237 Adapter 999 7237 Adapter
Caution! Make sure that the motor is in the park position.

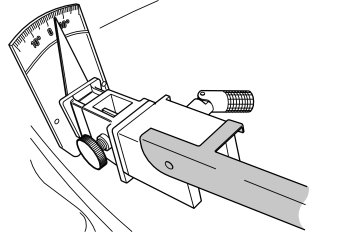

Vehicles early version

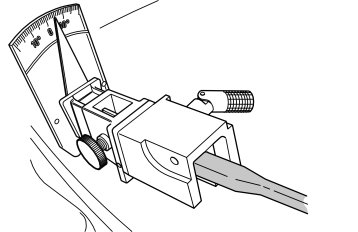

Vehicles late version
Caution! Use suitable tape to protect the wiper arm.
Note! Make sure that the 3 marked points of the special tool are in contact with the glass.
