Window, Front Door

Window, front door.

Operation number: 84406-2

Note! Some variation in the illustrations may occur, but the essential information is always correct.

Removal

Note! Removal steps in this procedure may contain installation details.







Remove door panel. Refer to: Panel front door Removal and Replacement

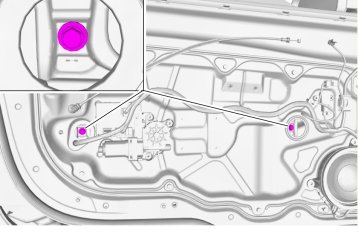

Note! Do not loosen the bolts more than 2 turns.

Torque: Window to power window mechanism (front side door), 8 Nm






Installation

Install in reverse order.

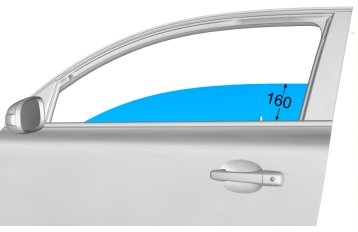

Initiate window lift. See VIDA car communication.
