Solenoid Gear Lever Assembly

Solenoid gear lever assembly

Note! The illustrations in this service information are used for different model years and/or models. Some variation may occur. However, the essential information in the illustrations is always correct.

Preparatory work

Removing the center console
Remove center console. See: Floor console Floor Console.

Removal

Removing solenoid gear selector assembly

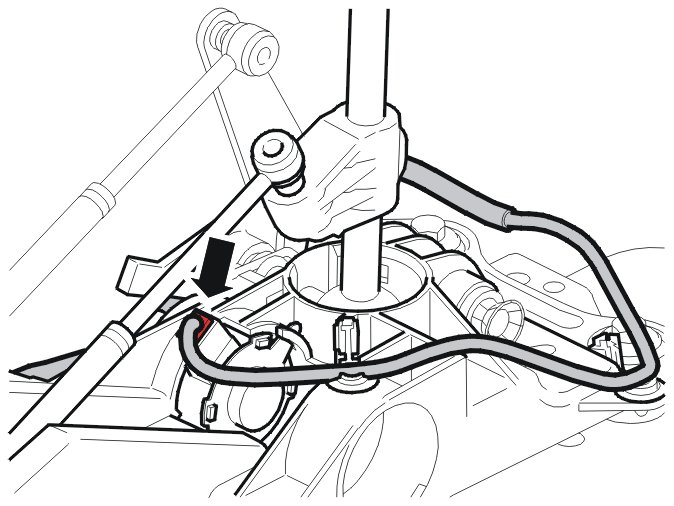

Disconnect the connector for the solenoid.

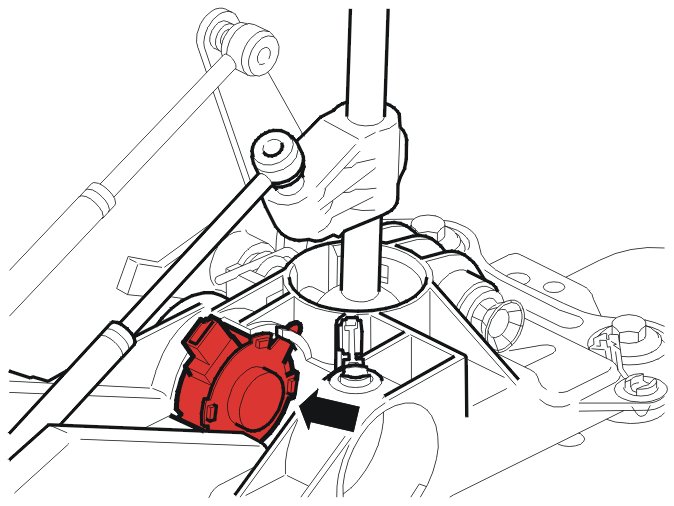

Turn the solenoid counter-clockwise. Remove the solenoid.

Installation

Installing the solenoid gear selector assembly




Install and lock the solenoid by turning clockwise.




Connect the connector to the solenoid.

Finishing

Installing the center console
Install the center console. See: Floor console Floor Console.

Final check
Check the function of the back-up inhibitor.
