Knob, Gear Selector Lever

Knob, gear selector lever

Note! The illustrations in this service information are used for different model years and/or models. Some variation may occur. However, the essential information in the illustrations is always correct.

Removal

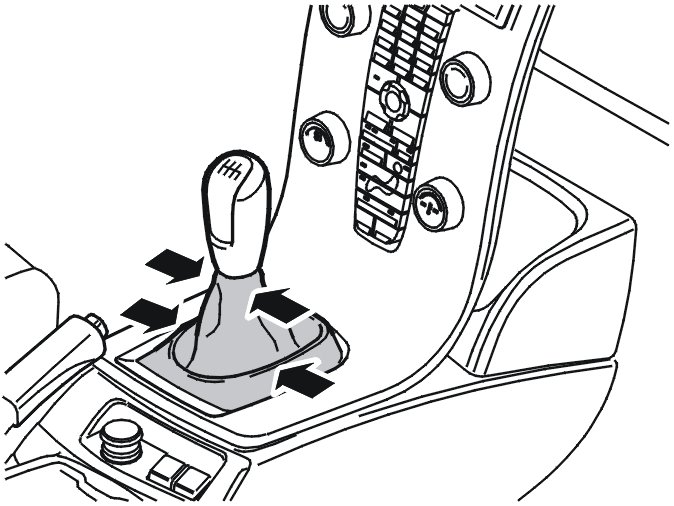

Removing the gear selector lever boot




Carefully press together the bottom edge of the boot. Press the boot down into its hole.
Grip either side of the boot. Lever the boot down from its groove in the gear selector lever knob.

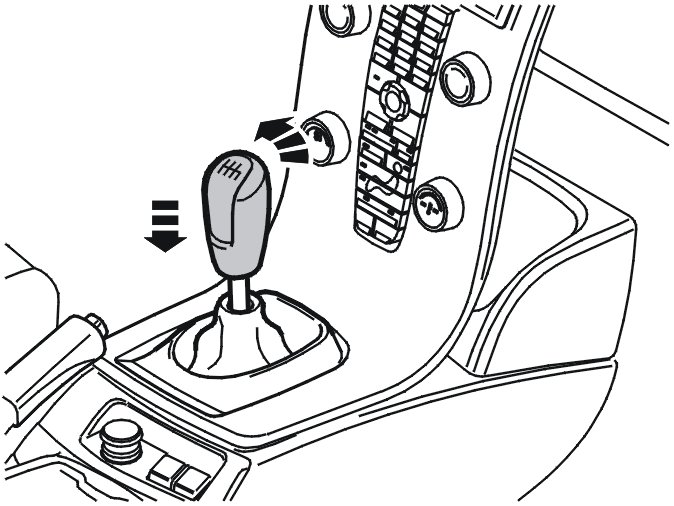

Removing gear selector lever knob




Press down the gear selector lever knob. Turn the gear selector lever knob counter-clockwise as far as it will go.

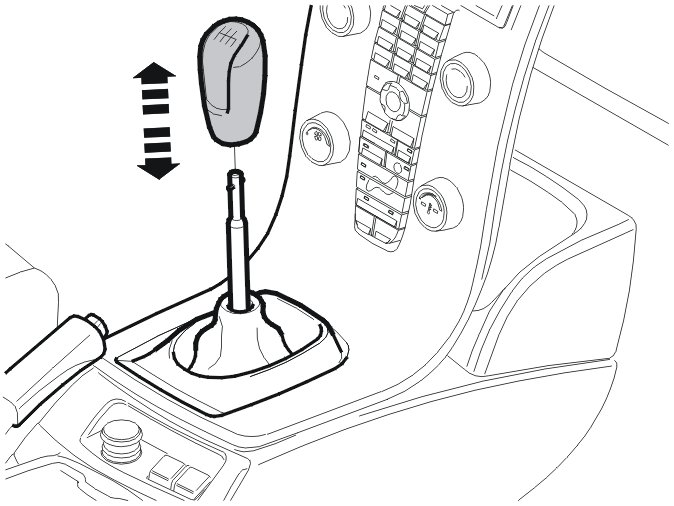

Pull the gear selector lever knob straight up.

Removing the gear selector lever boot
If necessary, remove the boot.

Installation

Installing gear selector knob




If necessary, position the boot around the gear selector lever.
Press down the gear selector lever knob. Turn the gear selector lever knob clockwise until it locks in position.

Installing gear selector lever boot




Grip either side of the boot. Lever the boot up into its groove in the gear selector lever knob.
Snap the boot into place in the frame.
