Gear Selector Assembly

Gear selector assembly

Note! The illustrations in this service information are used for different model years and/or models. Some variation may occur. However, the essential information in the illustrations is always correct.

Preparatory work

Removing the center console
Remove center console. See: Floor console Floor Console.

Removal

Removing gear selector knob and boot
Remove the gear selector lever knob. See: Knob, gear selector lever, B5254T7, M66 Knob, Gear Selector Lever.

Removing the gear selector cables





Hint: The screw on the puller is turned counter-clockwise to pull the gear selector cable loose.

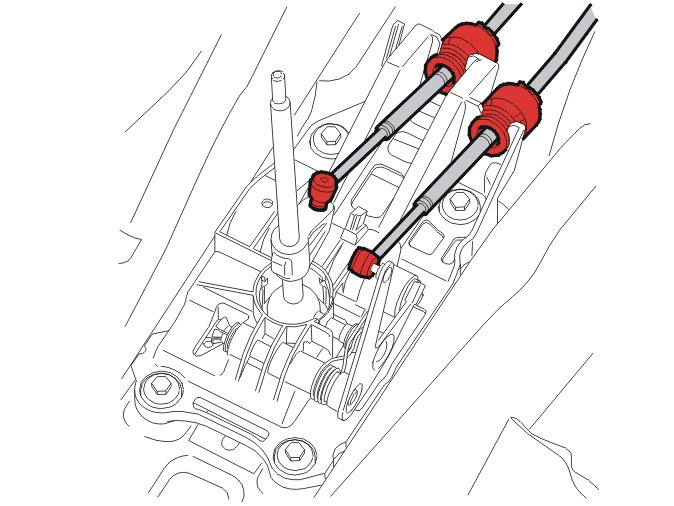

Remove the gear selector cables from the ball connectors. Use: 999 7071 Puller 999 7071 Puller.

Removing the gear selector assembly

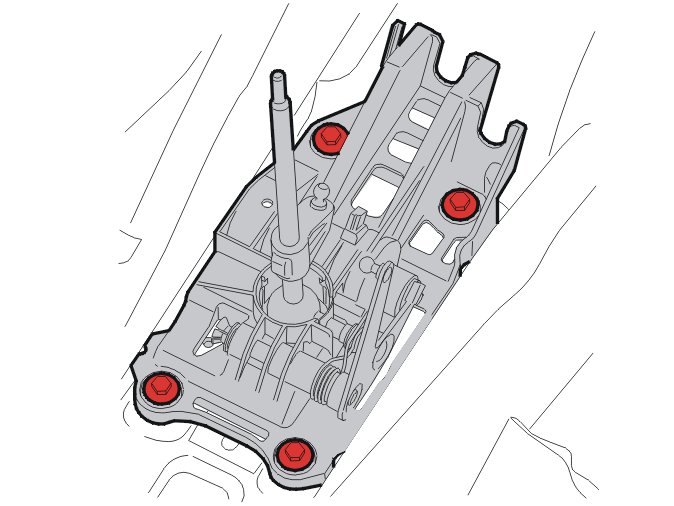

Remove the 4 screws. Remove the gear selector assembly.

Installation

Note! For tightening torques, see: Tightening torque, B5254T7, AW55-50/51SN, B5254T7, M66 Tightening Torque.

Installing the gear selector assembly





Install:
- the gear selector assembly
- the 4 M8 screws.

Installing the gear selector cables





Install by hand:
- the gear selector cables in the end of the gear selector assembly
- the ball joints for the gear selector cables.

Installing gear selector knob and boot
Install the gear selector lever knob. See: Knob, gear selector lever, B5254T7, M66 Knob, Gear Selector Lever.

Installing the center console
Install the center console. See: Floor console Floor Console.
