Transaxle Oil

Operation number: 43105-2

Transaxle oil






Removal

Note! Removal steps in this procedure may contain installation details.

Remove the left front wheel. Refer to: Wheels Service and Repair









Warning! Be prepared to collect escaping fluid.

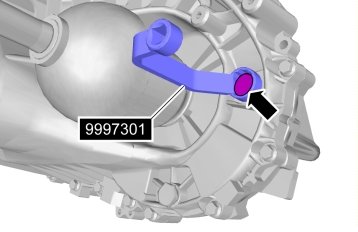

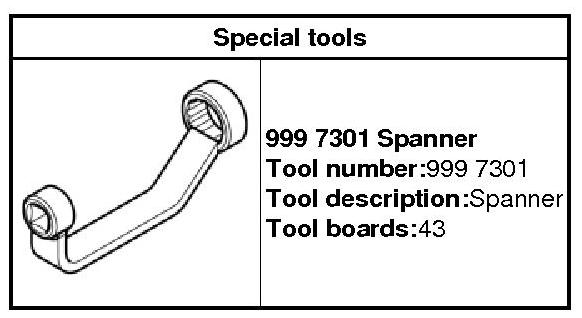

999 7301 Spanner 999 7301 Spanner
Torque: Oil level plug, transmission, 35 Nm

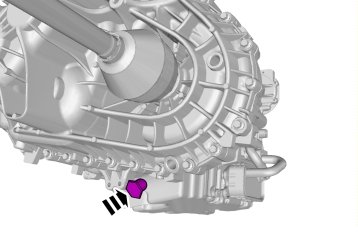

Warning! Be prepared to collect escaping fluid.

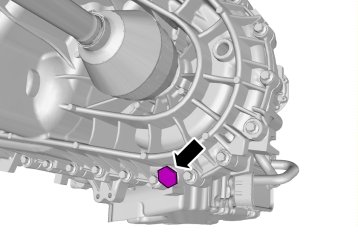

Torque: Oil drain plug, gearbox, 35 Nm




Follow the instructions regarding transmission lubricant Refer to: Lubricant transmission [1][2]Specifications

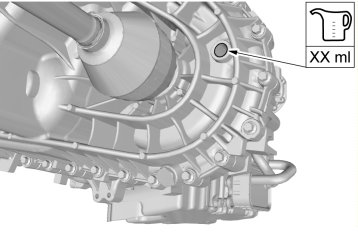

Perform oil transmission Refer to: Transaxle oil, B5254T7, M66 Transaxle Oil

Installation

To install, reverse the removal procedure.
