Transaxle Oil

Operation number: 43107-2

Transaxle oil






Check

Remove the left front wheel. Refer to: Wheels Service and Repair









Warning! Be prepared to collect escaping fluid.

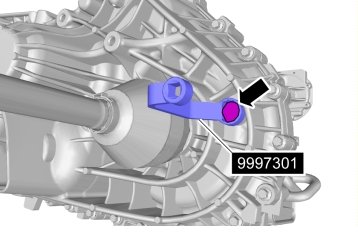

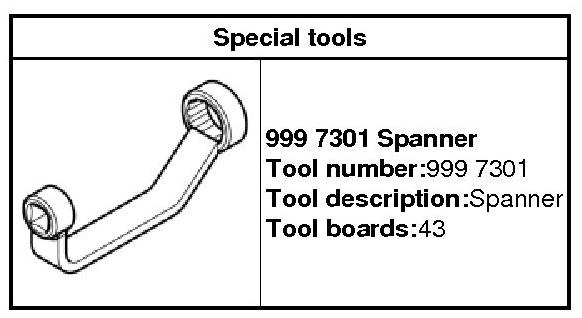

999 7301 Spanner 999 7301 Spanner




Follow the instructions regarding transmission lubricant Refer to: Lubricant transmission [1][2]Specifications




999 7301 Spanner 999 7301 Spanner
Torque: Oil level plug, transmission, 35 Nm





Install the left front wheel Refer to: Wheels Service and Repair
