Seals and Gaskets: Service and Repair

Operation number: 43111-3

Input shaft seal






Removal

Remove control cylinder clutch Refer to: Clutch slave cylinder, B5254T7, M66 Service and Repair

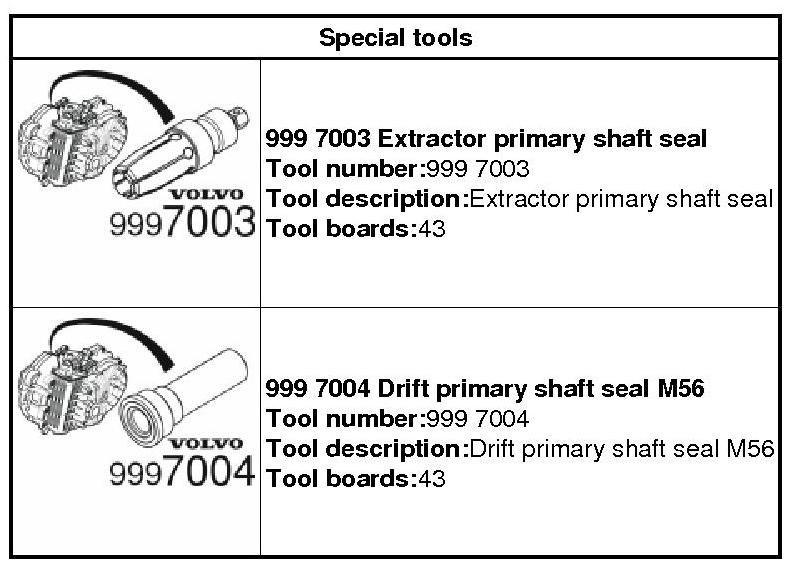

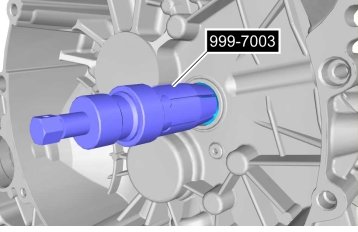

999 7003 Extractor primary shaft seal 999 7003 Extractor Primary Shaft Seal

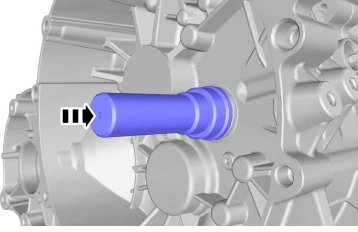

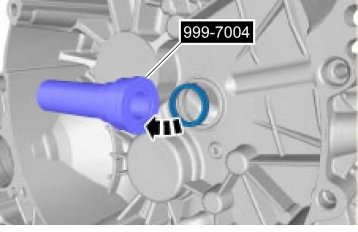

999 7004 Drift primary shaft seal M56 999 7004 Drift Primary Shaft Seal M56





Installation

To install, reverse the removal procedure.

Install control cylinder clutch Refer to: Clutch slave cylinder, B5254T7, M66 Service and Repair
