Sealing Ring, Driveshaft, Front Left

Sealing ring, driveshaft, front left

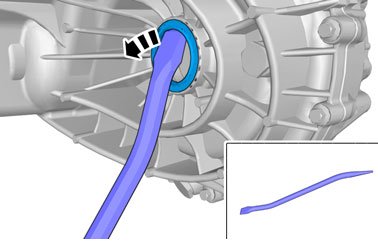

Removal

Remove drive shaft

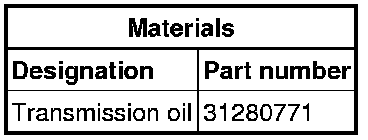

Use: Transmission oil, 31280771

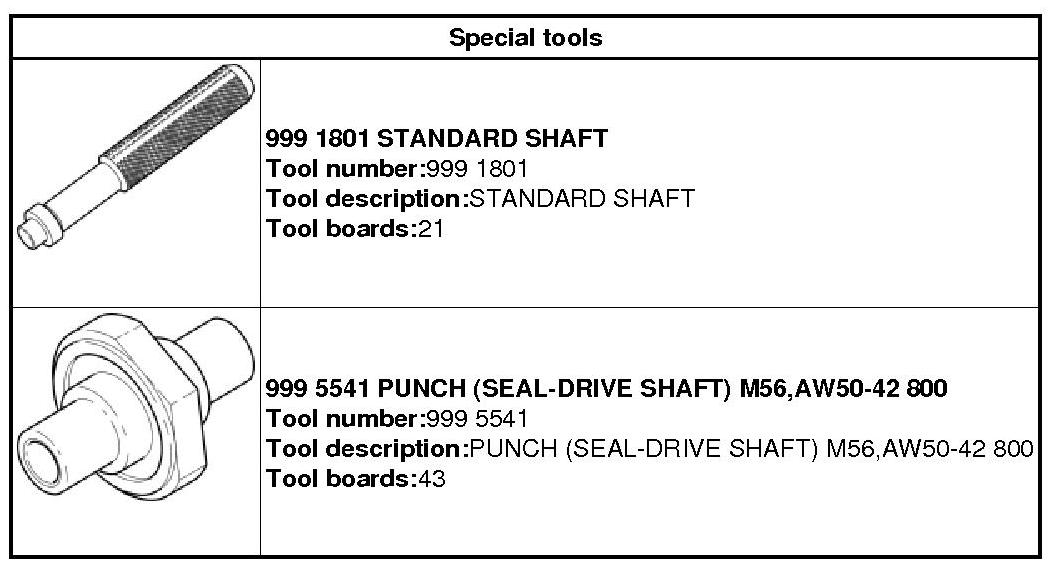

999 1801 STANDARD SHAFT 999 1801 Standard Shaft 999 5541 PUNCH 999 5541 Punch

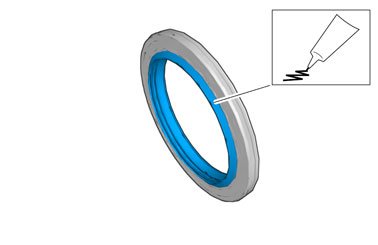

Caution! Make sure that the mating faces are clean and free of foreign material.

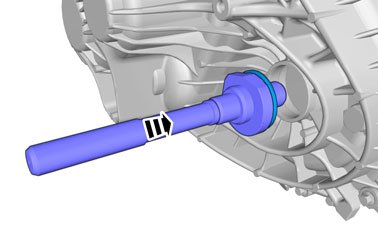

Installation

Install left drive shaft

Perform checks Refer to: Transaxle oil, B5254T7, M66 Transaxle Oil
