Axle Shaft Assembly: Service and Repair

Drive shaft right






Removal

Note! Removal steps in this procedure may contain installation details.

Warning! Do not use magnets or magnetic tools close to tooth wheels, drive shafts or wheel hubs. A magnetized tooth wheel will lose its function and generate incorrect signals resulting in fault codes.

Note! Any magnetized tooth wheel, drive shaft or wheel hub must be replaced with a new component.

Remove right front wheel Refer to: Wheels Service and Repair




Torque: Driveshaft to wheel hub (front) Stage 1: 35 Nm Stage 2: 90 degree




951 2923 Hydraulic hole cylinder 951 2923 Hydraulic Hole Cylinder 999 7251 Press tool 999 7251 Press Tool

Loosen wheel spindle Refer to: Front control arm Front Control Arm

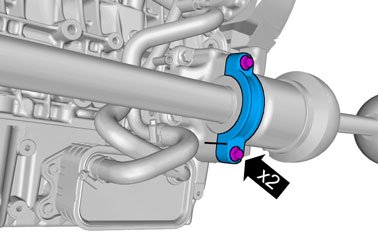

Note! Note the position of the component before removal.

Torque: M8, 24 Nm









Caution! Make sure that the inner constant velocity (CV) joint does not separate.

Installation





Caution! Make sure that the surface is clean and free of foreign material.





Caution! Make sure that the surface is clean and free of foreign material.

To install, reverse the removal procedure.
