Transmission Cooler: Service and Repair

Operation number: 49104-2

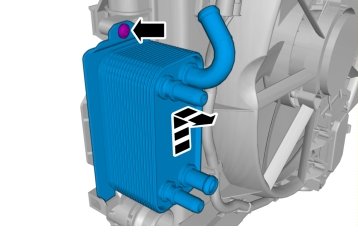

Oil cooler transmission






Removal

Remove the air filter housing Refer to: Air cleaner housing, B5254T7 Service and Repair

Perform cooling system draining, charging and bleeding Refer to: Cooling system - draining, charging and bleeding, B5254T7 Service and Repair

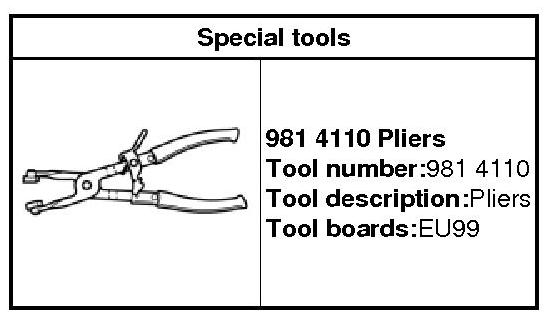

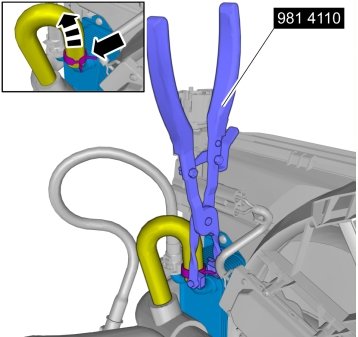

981 4110 Hose tongs 981 4110 Hose Tongs

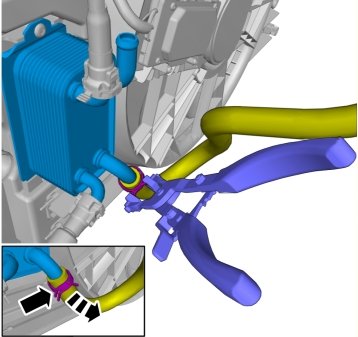

Warning! Be prepared to collect escaping fluid.

Caution! Make sure the open end of the hose is secured above the fluid level in the reservoir.





Installation

To install, reverse the removal procedure.

Carry out: gearbox oil level - check Refer to: Transmission oil level - checking, B5254T7, AW55-50/51SN Checking Oil Level
