Selector Lever Assembly

Selector Lever Assembly

Note! The illustrations in this service information are used for different model years and/or models. Some variation may occur. However, the essential information in the illustrations is always correct.

Preparatory work

Removing the center console
Remove center console. See: Floor console Floor Console.

Removal

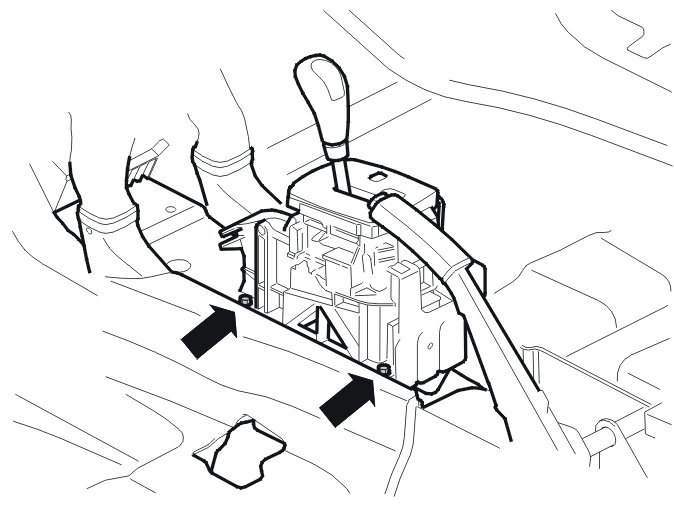

Removing the gear selector assembly




Disconnect the cable harness.
Remove the 4 x M8 screws.

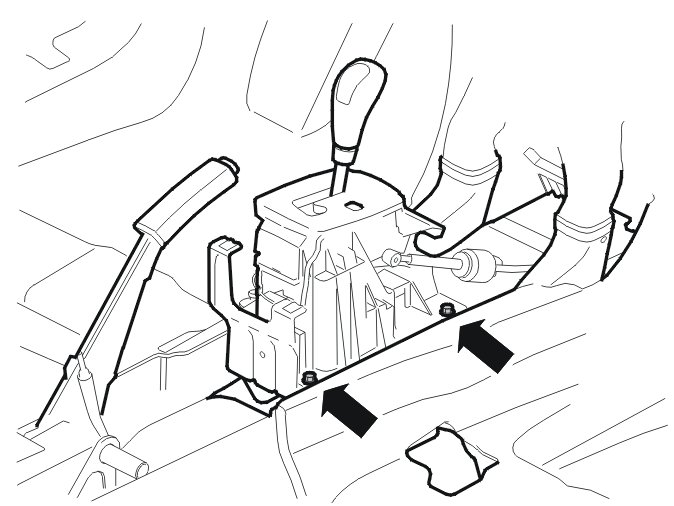

Removing the gear selector assembly

Note! Do not damage the gear selector cable.

Remove the gear selector assembly.

Installation

Note! For tightening torques, see: Tightening torque, B5254T7, AW55-50/51SN, B5254T7, M66 Tightening Torque.

Installing the gear selector assembly





Note! Do not damage the gear selector cable.

Install the gear selector assembly.
Tighten down the M8 screws, 4 pcs.
Plug in the connector. Press on the ball seat.

Finishing

Installing the center console
Install the center console. See: Floor console Floor Console.

Note! Calibration of the built-in position sensor in the gear lever assembly shall be performed when the unit has been replaced or disconnected.

When replacing the position sensor the new position sensor must be calibrated. Carry out calibration according to VIDA vehicle communication, Function area 4 Transmission, transmission control module (TCM).
