Sealing Ring, Torque Converter

Sealing ring, torque converter

Special tools:
999 5069 EXTRACTOR 999 5069 Extractor
999 5117 PUNCH 999 5117 Punch

Note! As the illustrations in this service information are used for different model years and / or models, some variation may occur. However, the essential information is always correct.

Removal

Removing the transmission
Remove the transmission according to.

Removing the torque converter
Pull the torque converter straight out of the transmission. Check the torque converter throat for damage.

Removing the sealing ring from the oil pump




Use puller 999 5069 EXTRACTOR 999 5069 Extractor.

Installation

Installing a new sealing ring on the oil pump




Use drift 999 5117 PUNCH 999 5117 Punch.

Installing the torque converter




Lubricate the torque converter throat with ATF oil.

Note! Take care not to damage the oil pump during installation.

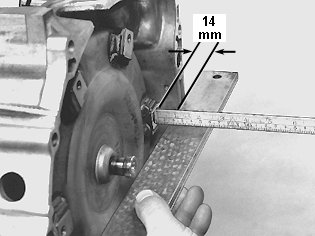

Make sure torque converter is as far into the transmission as possible. Check with a ruler. The distance between the cover and retaining tabs must be approximately 14 mm.

Installing the transmission
Install the gearbox.
