Sealing Ring, Gear Shift Linkage Rod

Sealing ring, gear shift linkage rod

Special tools:
999 5476 PUNCH 999 5476 Punch

Note! As the illustrations in this service information are used for different model years and / or models, some variation may occur. However, the essential information is always correct.

Preparatory work

Removing the control module
Remove the transmission control module (TCM). See: Transmission Control Module (TCM), B5254T7, AW55-50/51SN Transmission Control Module (TCM).

Removal

Removing the sealing ring

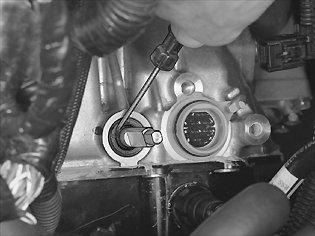

Remove the old sealing ring. Use a small, well-rounded screwdriver.

Caution! Do not damage the shaft.

Installation

Installing the sealing ring




Lubricate the sealing ring using ATF oil.

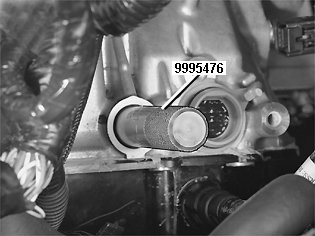

Install the sealing ring. Use drift 999 5476 PUNCH 999 5476 Punch.

Finishing

Installing the control module
Install the transmission control module (TCM). See: Transmission Control Module (TCM), B5254T7, AW55-50/51SN Transmission Control Module (TCM).
