Cell Phone - Bluetooth(R) BPM And Mobile Phone Compatibility

Title BPM and mobile phone compatibility.

Ref No US13753.18.2 en-US

Issuer -

Partner 3 US 7510 Volvo Cars North America

Func Group 3949

Func Desc miscellaneous

Status Released

Status Date 03-26-2012

Issue Date 03-26-2012

Reference





Attachment

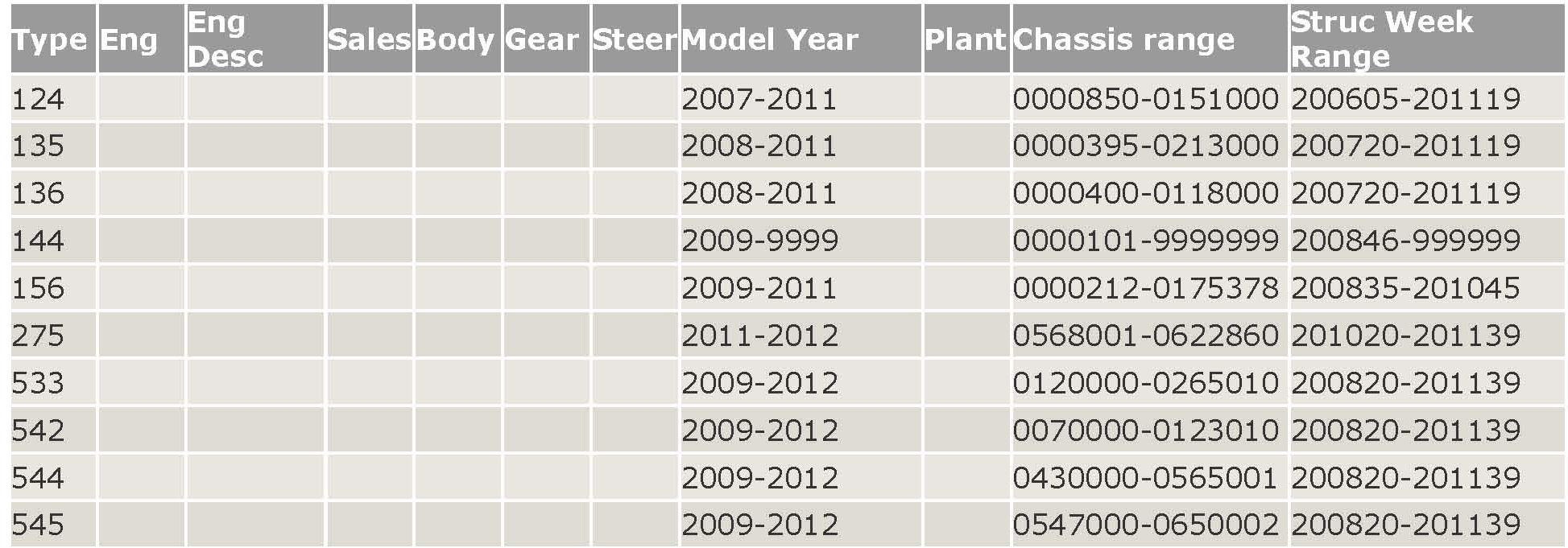

Vehicle Type

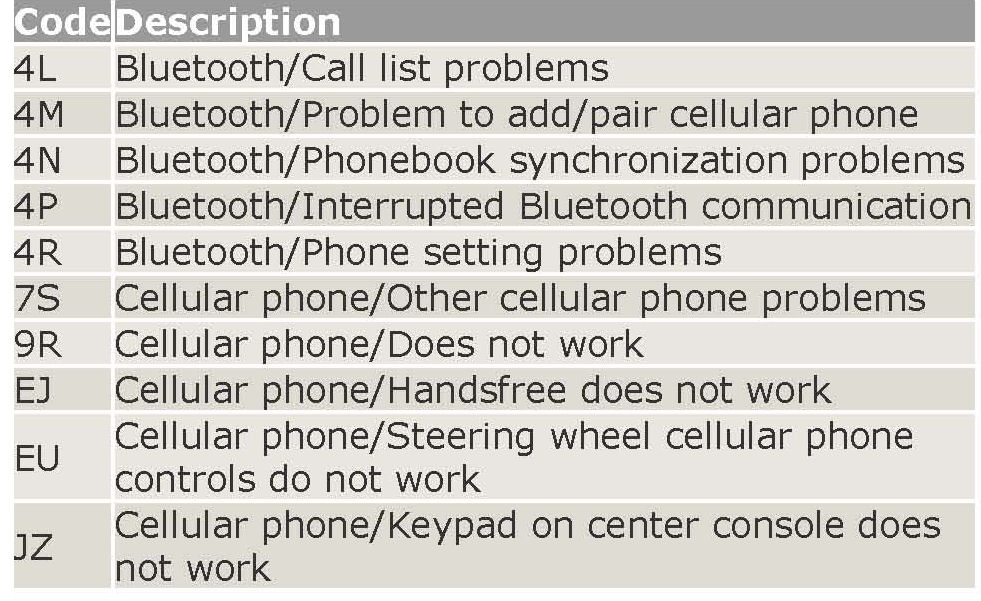

CSC Customer Symptom Codes

DTC Diagnostic Trouble Codes

Text

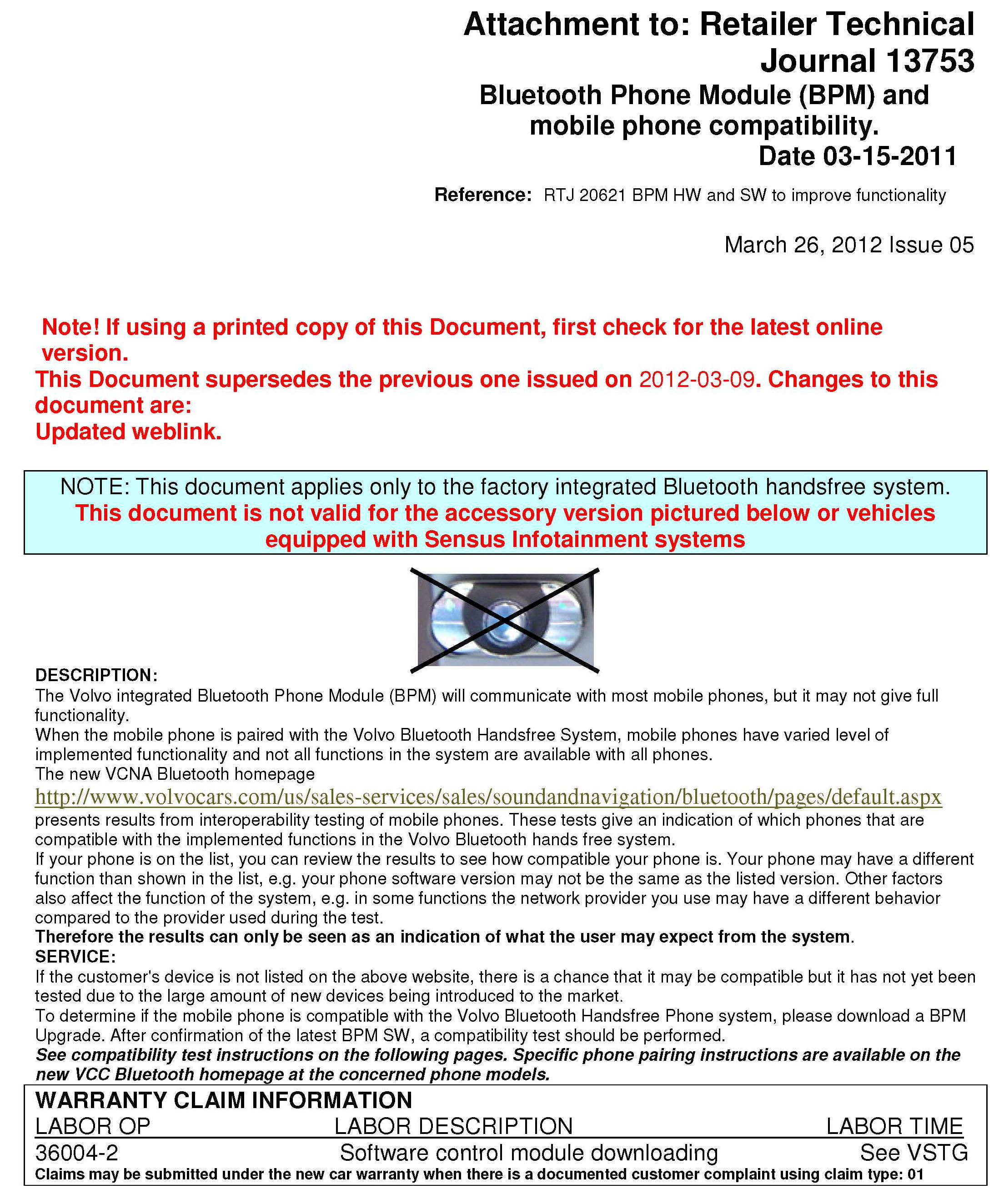

Please see attachment

If using a printed copy of this document, always check for the latest online version.

This Document supersedes the previous one issued on 2012-03-09. Changes to this document are: Updated weblink in attachment. Updated text in TJ body for weblink copy/paste

Note:
The attachment does not specifically apply to vehicles equipped with Sensus infotainment systems

The Volvo integrated Bluetooth Phone Module (BPM) will communicate with most mobile phones, but it may not give full functionality.

When the mobile phone is paired with the Volvo Bluetooth Handsfree System, mobile phones have varied level of implemented functionality and not all functions in the system are available with all phones.

To access the VCNA Bluetooth homepage, copy and paste the following text into your browser:
http://www.volvocars.com/us/sales-services/sales/soundandnavigation/bluetooth/pages/default.aspx

This site will present results from interoperability testing of mobile phones. These tests give an indication of which phones that are compatible with the implemented functions in the Volvo Bluetooth handsfree system.

If your phone is on the list, you can review the results to see how compatible your phone is. Your phone may have a different function than shown in the list, e.g. your phone software version may not be the same as the listed version. Other factors also affect the function of the system, e.g. in some functions the network provider you use may have a different behavior compared to the provider used during the test.

Therefore the results can only be seen as an indication of what the user may expect from the system.

Please also reference SMB 39-006

SERVICE:

If the customer's device is not listed on the above website, there is a chance that it may be compatible but it has not yet been tested due to the large amount of new devices being introduced to the market.

To determine if the mobile phone is compatible with the Volvo Bluetooth Handsfree Phone system, please download a BPM upgrade. After confirmation of the latest BPM SW, a compatibility test should be performed.

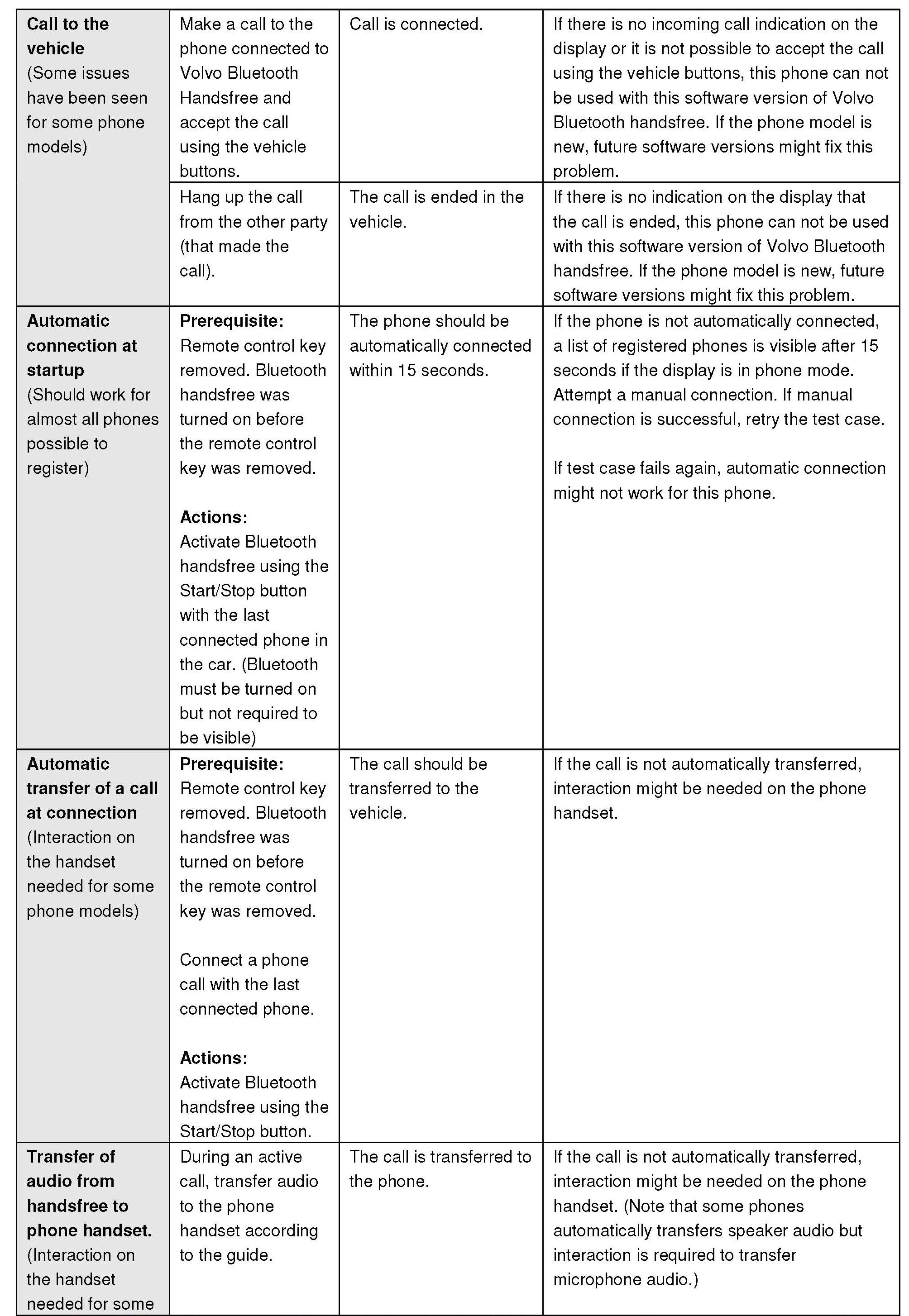

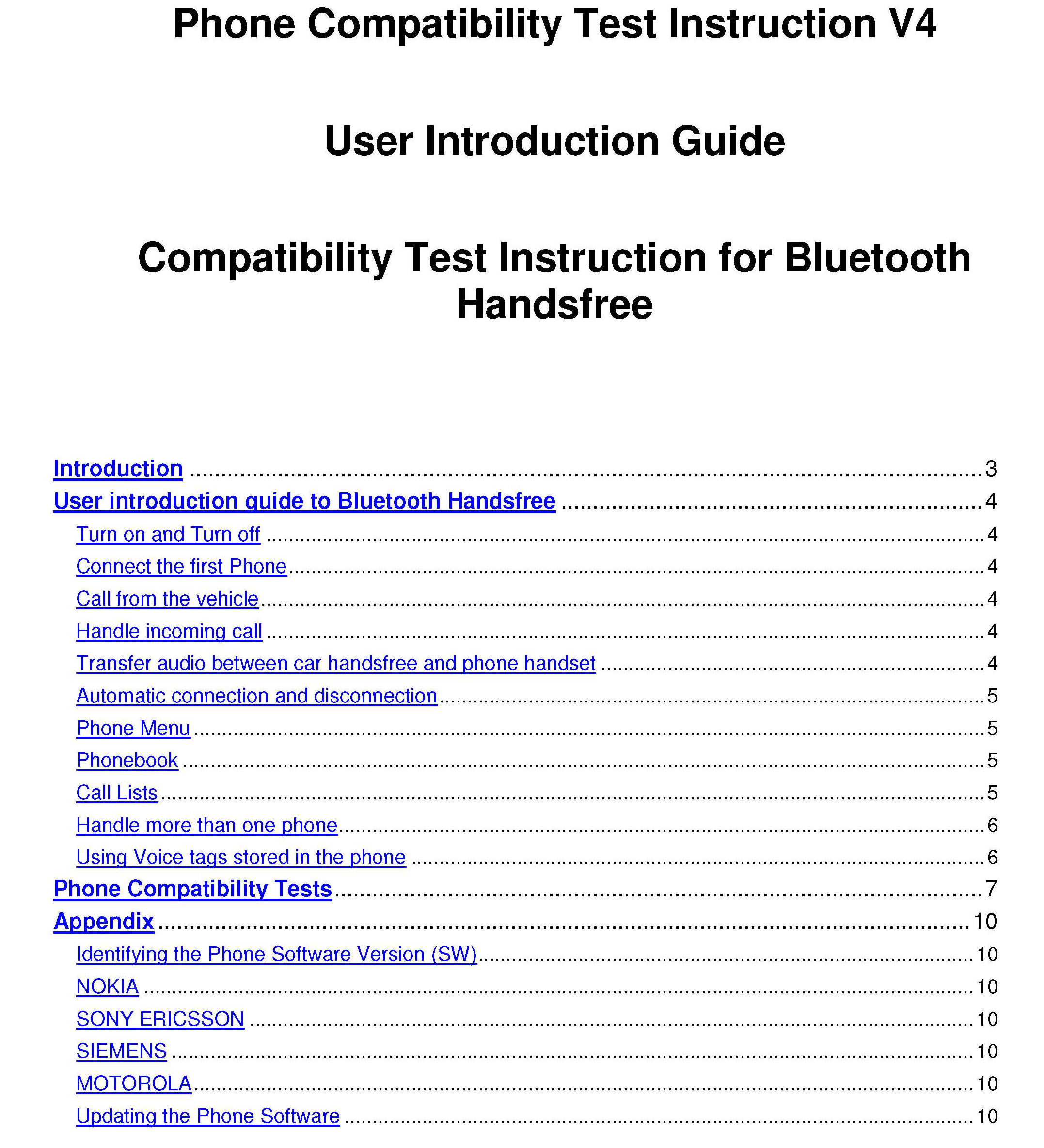

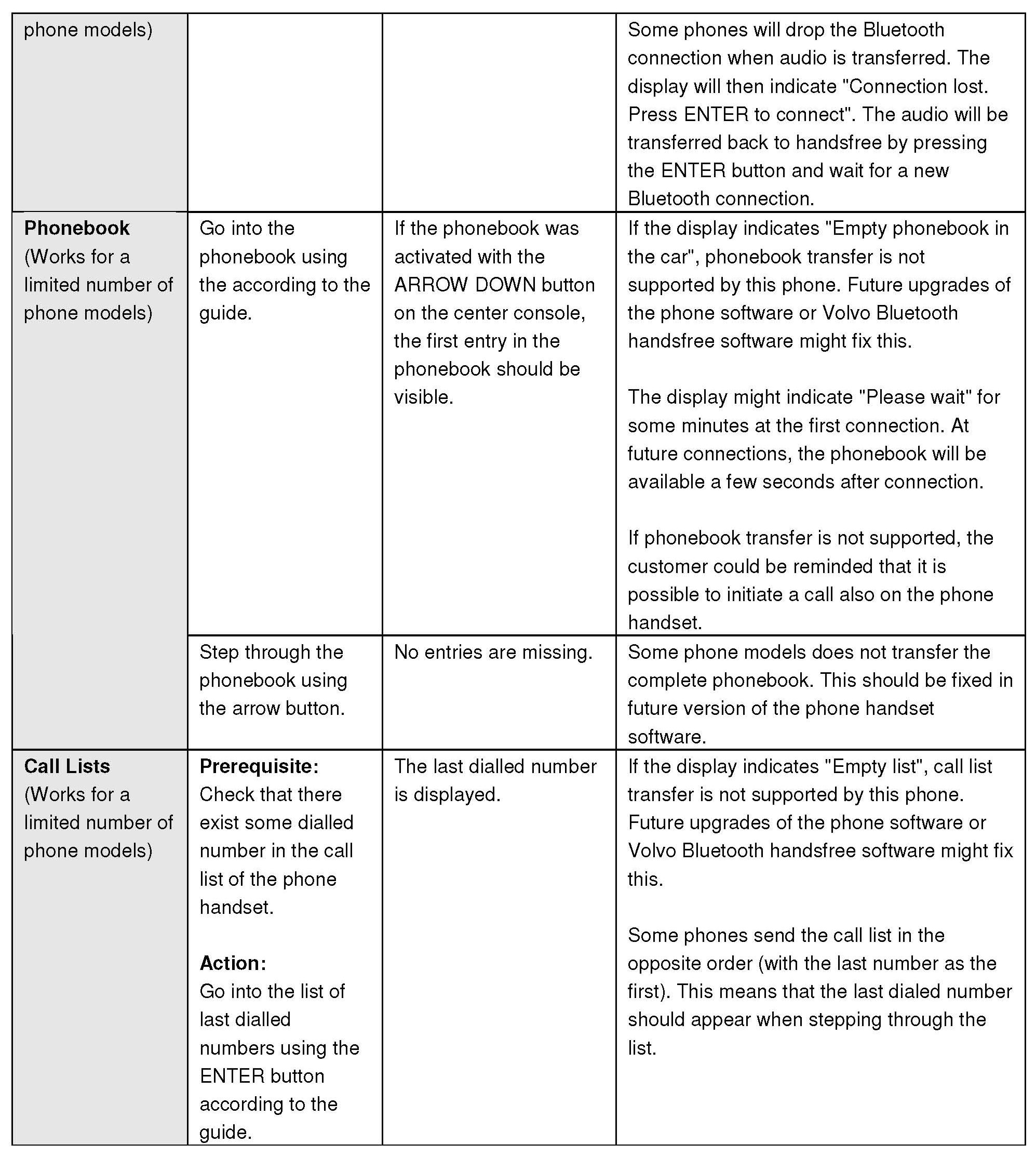

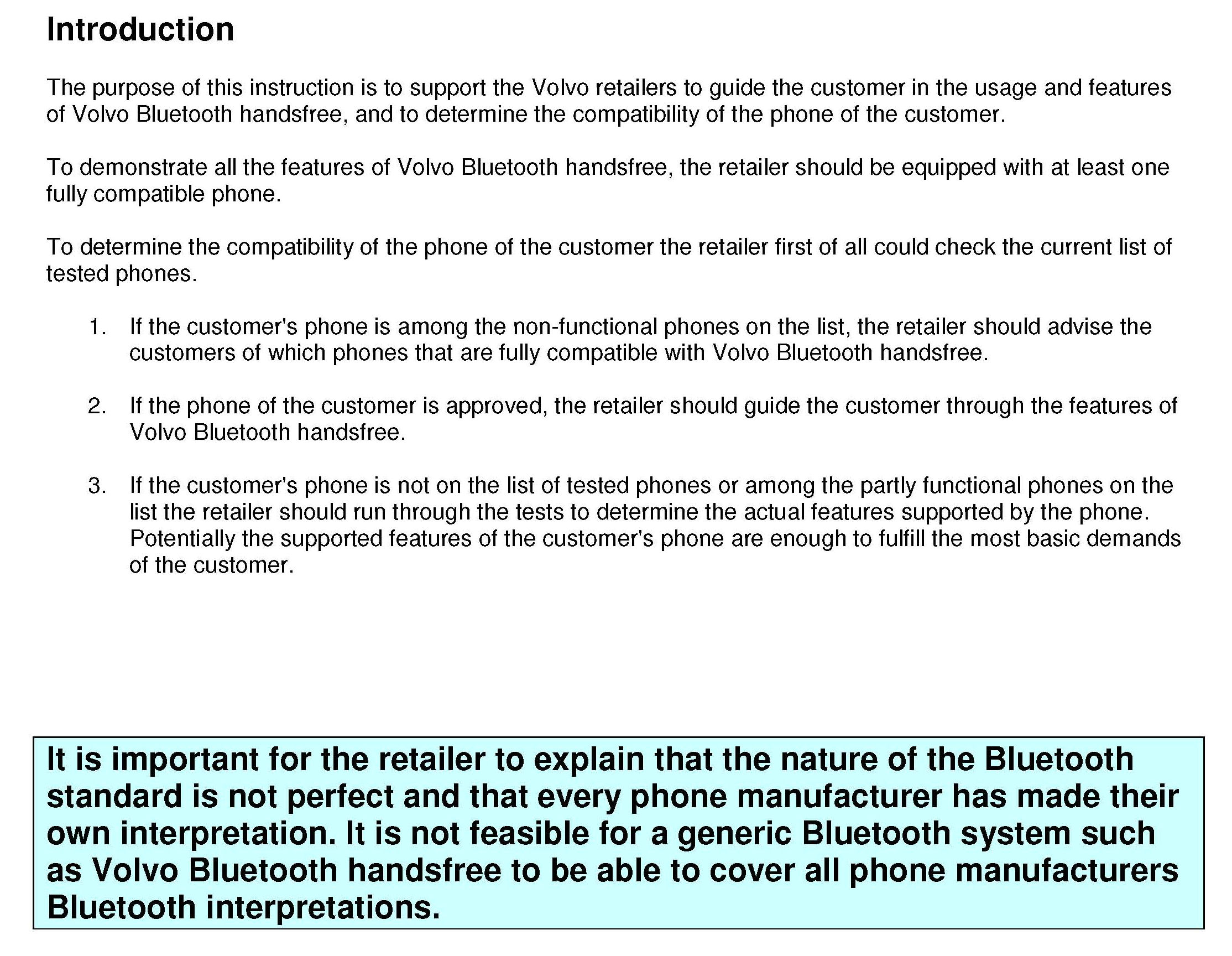

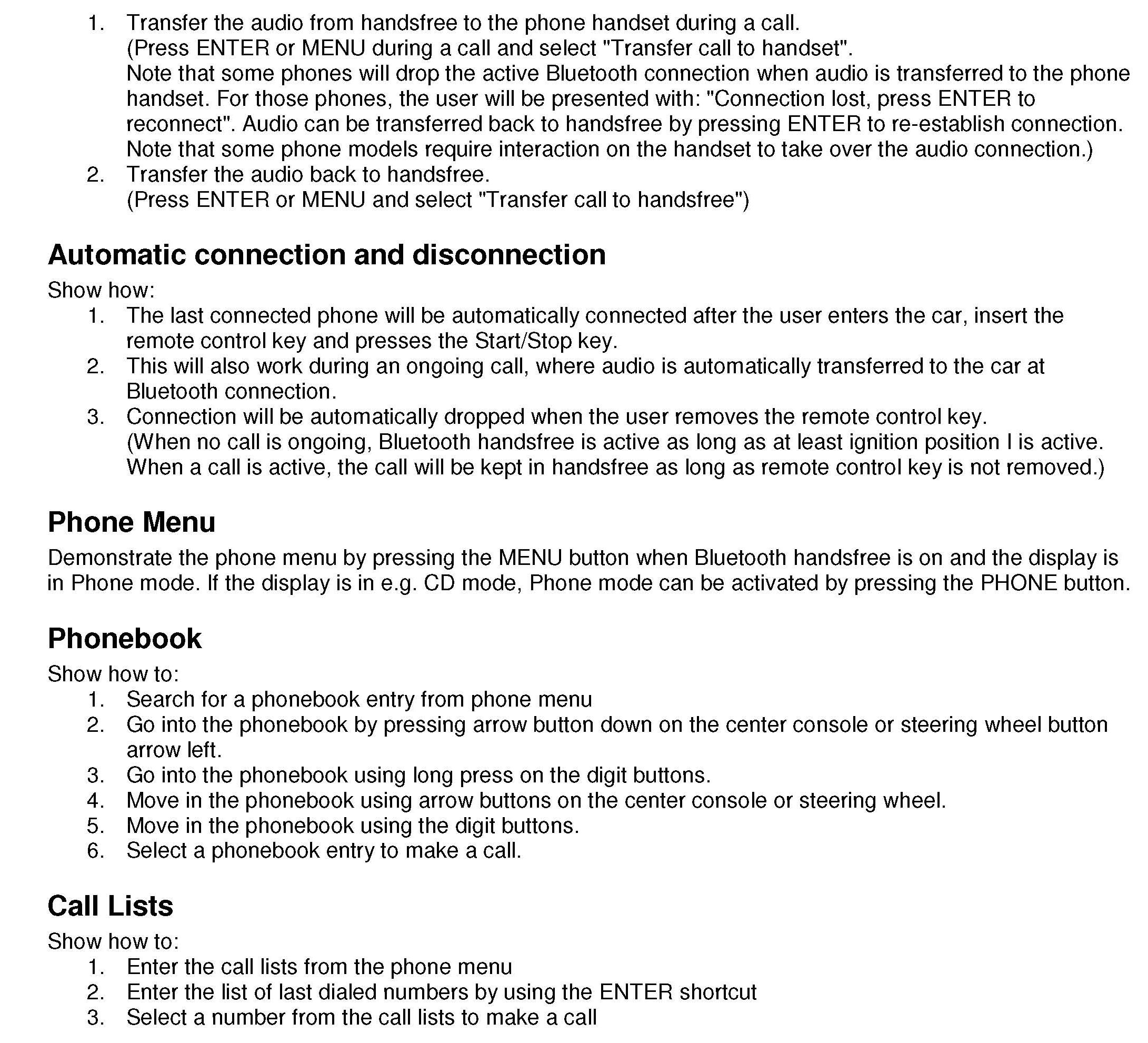

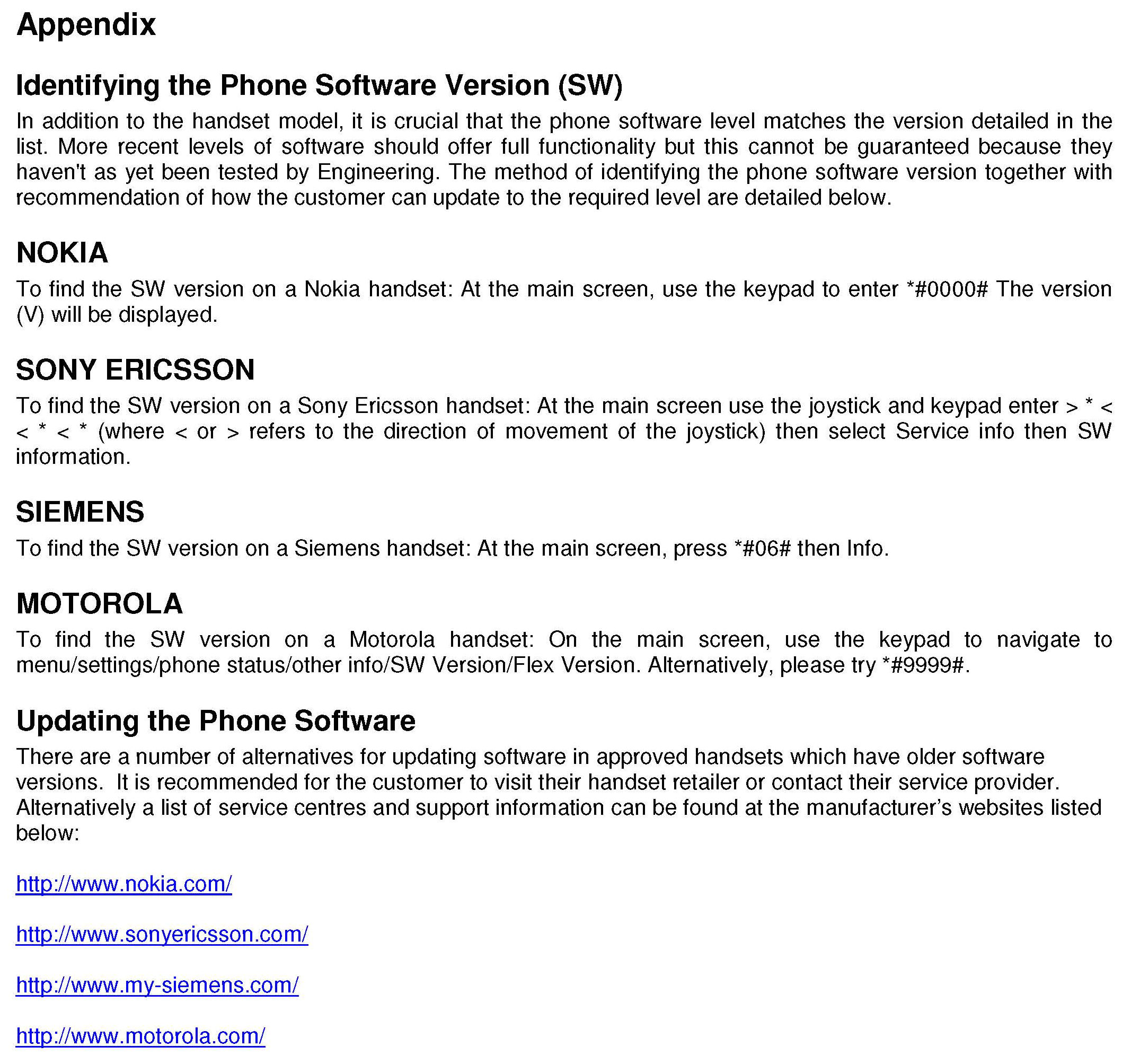

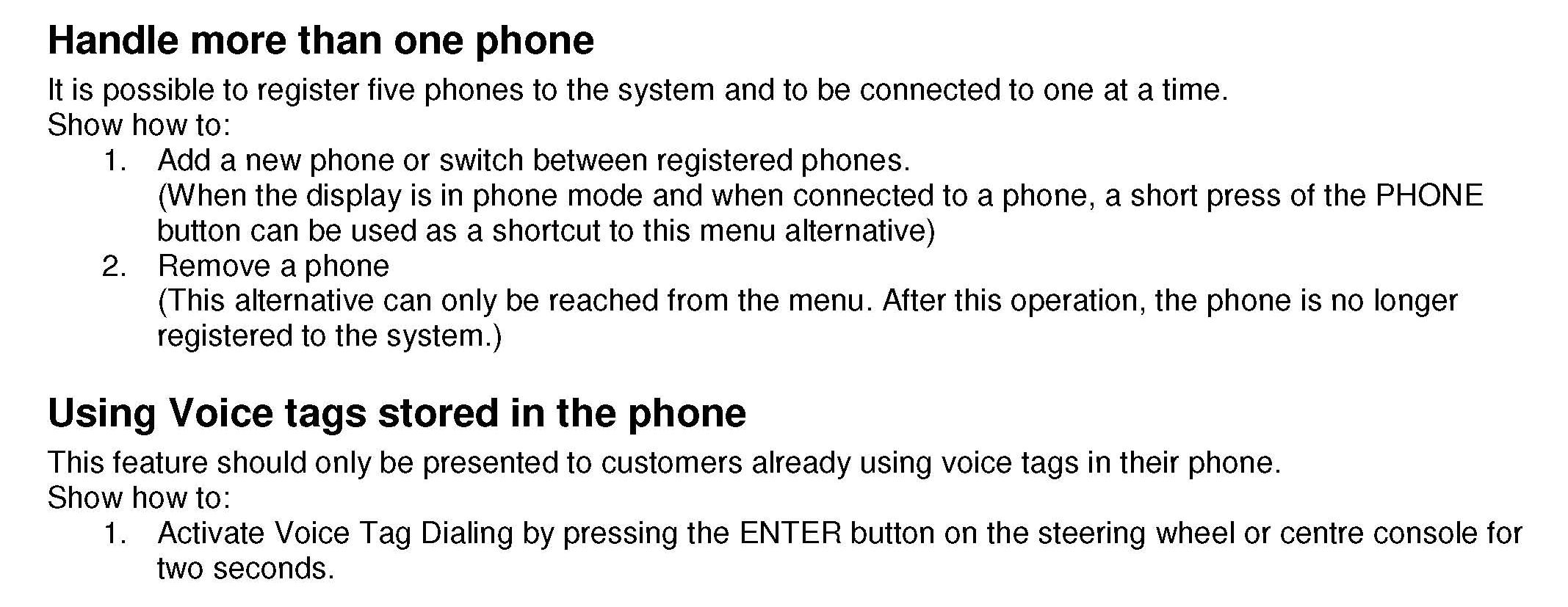

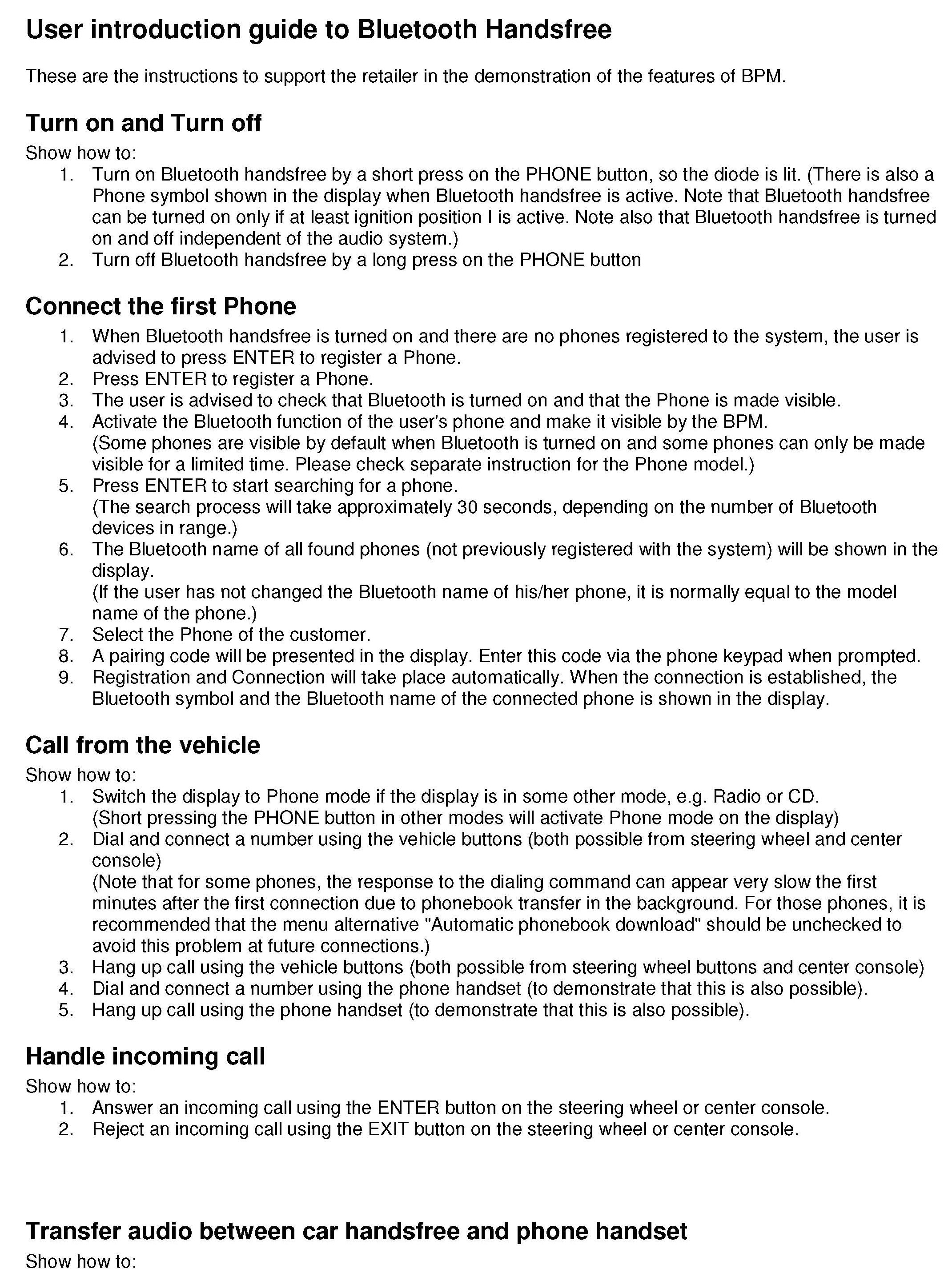

See compatibility test instructions on the following pages. Specific phone pairing instructions are available on the new VCC Bluetooth homepage at the concerned phone models.

Please see attachment

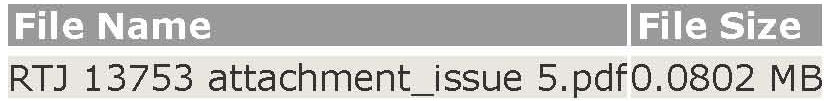

To view TJ attachment:
