Wheels: Service and Repair

Wheels






Removal

Note! Removal steps in this procedure may contain installation details.

See information about lifting points body Refer to: Jacking points body Locations





Warning! Make sure that the mating faces are clean and free of corrosion and foreign material.

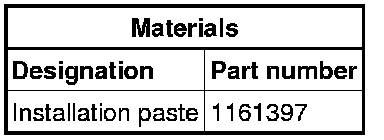

Use: Installation paste, 1161397




1. Torque: Wheel to hub (early version) Stage 1: 20 Nm Stage 2: 110 Nm

2. Torque: Wheel to wheel hub Stage 1: 20 Nm Stage 2: 130 Nm

Installation

To install, reverse the removal procedure.
