Rear Shock Absorber

Rear Shock Absorber

Removal

Note! Removal steps in this procedure may contain installation details.

Remove the wheel Refer to: Wheels Service and Repair

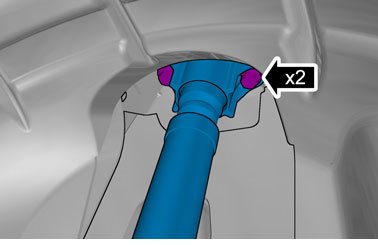

Torque: Bearing rear shock absorber to body, 30 Nm

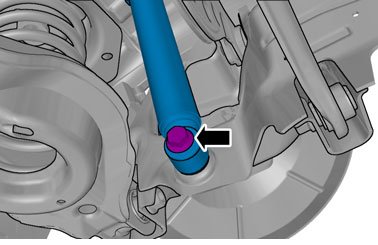

1. Torque: Rear shock absorber to wheel knuckle, 115 Nm

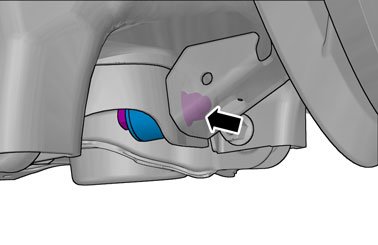

2. Torque: Rear shock absorber to wheel knuckle (Nivomat), 225 Nm





Installation

To install, reverse the removal procedure.
